Shift Solenoid, A/T



Component Connector End Views

Control Solenoid Valve Assembly X1

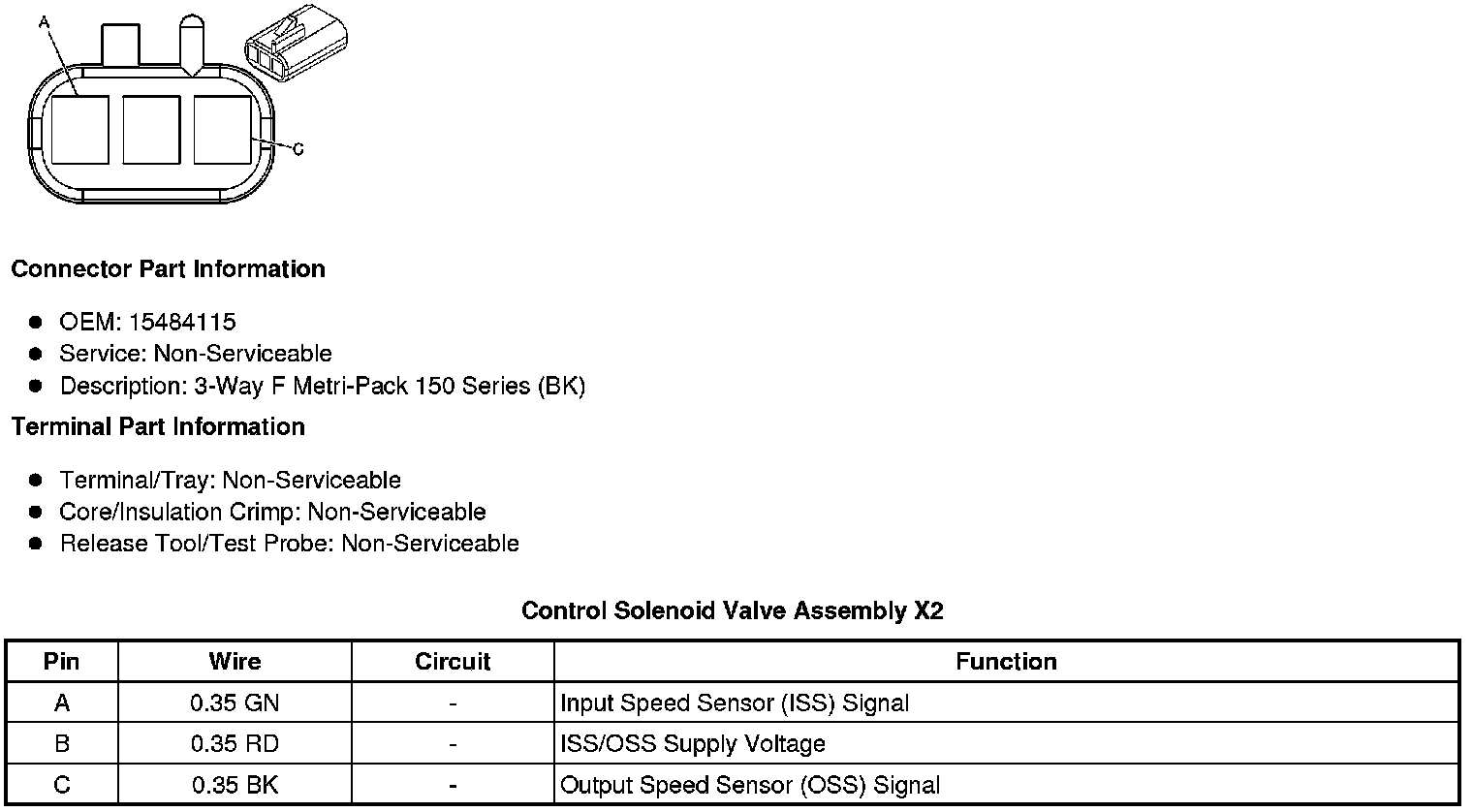

Control Solenoid Valve Assembly X2
