Rear Window Shelf Trim Panel Replacement

Rear Window Shelf Trim Panel Replacement

Removal Procedure

1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) .
2. Remove the rear seat back. Refer to Rear Seat Back Replacement (Rear Seat Back Replacement) .
3. Remove both rear upper quarter sail panels. Refer to Sail Panel Replacement (Service and Repair) .
4. Disengage the center shoulder belt from the shoulder belt latch.




5. Disengage the shoulder belt escutheon from the rear shelf.
6. Lift the rear shelf upward to disengage the center shoulder belt from the rear shelf.

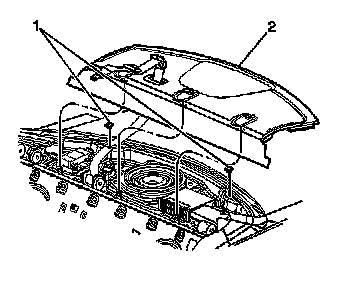

7. Disengage the 2 dual lock fasteners (1) at the rear edge of the shelf panel.
8. Lift upward and inward to remove the rear shelf panel (2).



Installation Procedure





1. Route the rear seat shelf panel (2) to the rear cross car beam at the dual lock fasteners (1).
2. Position the rear center shoulder belt through the rear shelf panel.
3. Ensure the shoulder belt is not twisted.
4. Lower the rear shelf panel over the child restraint tether anchors and apply pressure at both dual lock fasteners (1) to secure.

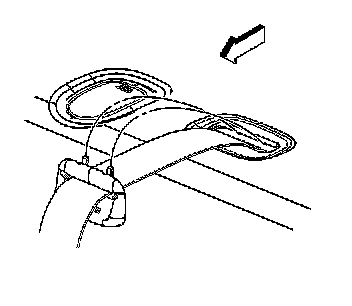

5. Secure the shoulder belt escutheon to the rear shelf panel.
6. Insert the escutheon rearward and snap the front downward in place to secure.
7. Install both rear upper quarter sail panels. Refer to Sail Panel Replacement (Service and Repair) .
8. Install the rear seat back. Refer to Rear Seat Back Replacement (Rear Seat Back Replacement) .
9. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) .
