Rear Shelf Carrier Replacement

Rear Shelf Carrier Replacement

Removal Procedure

1. Remove rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .

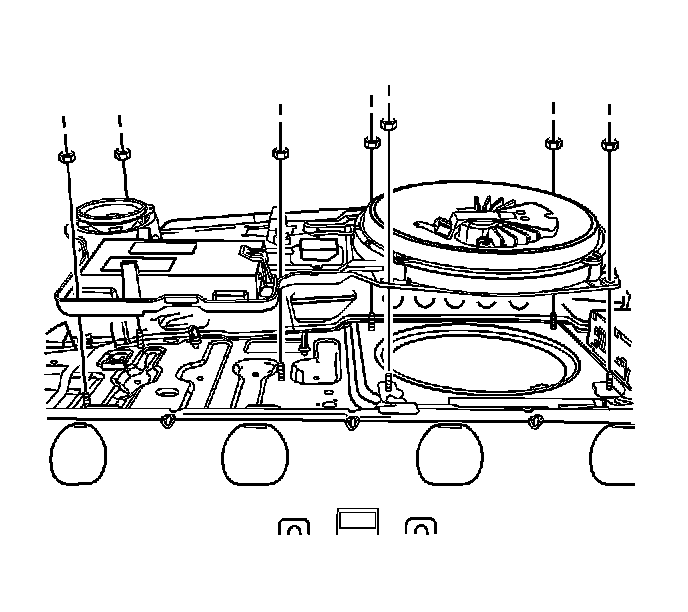

2. Remove the 7 fasteners securing the carrier assembly to the rear shelf.
3. Disconnect the electrical connectors.
4. Remove the rear shelf carrier assembly.



Installation Procedure

1. Install rear shelf carrier assembly.
2. Connect the electrical connectors.





Notice: Refer to Fastener Notice .

3. Install the rear shelf carrier fasteners.

Tighten the rear shelf carrier fasteners to 9 N.m (80 lb in).

4. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
