Rear Door Latch: Diagrams



Component Connector End Views


Door Latch - Left Rear

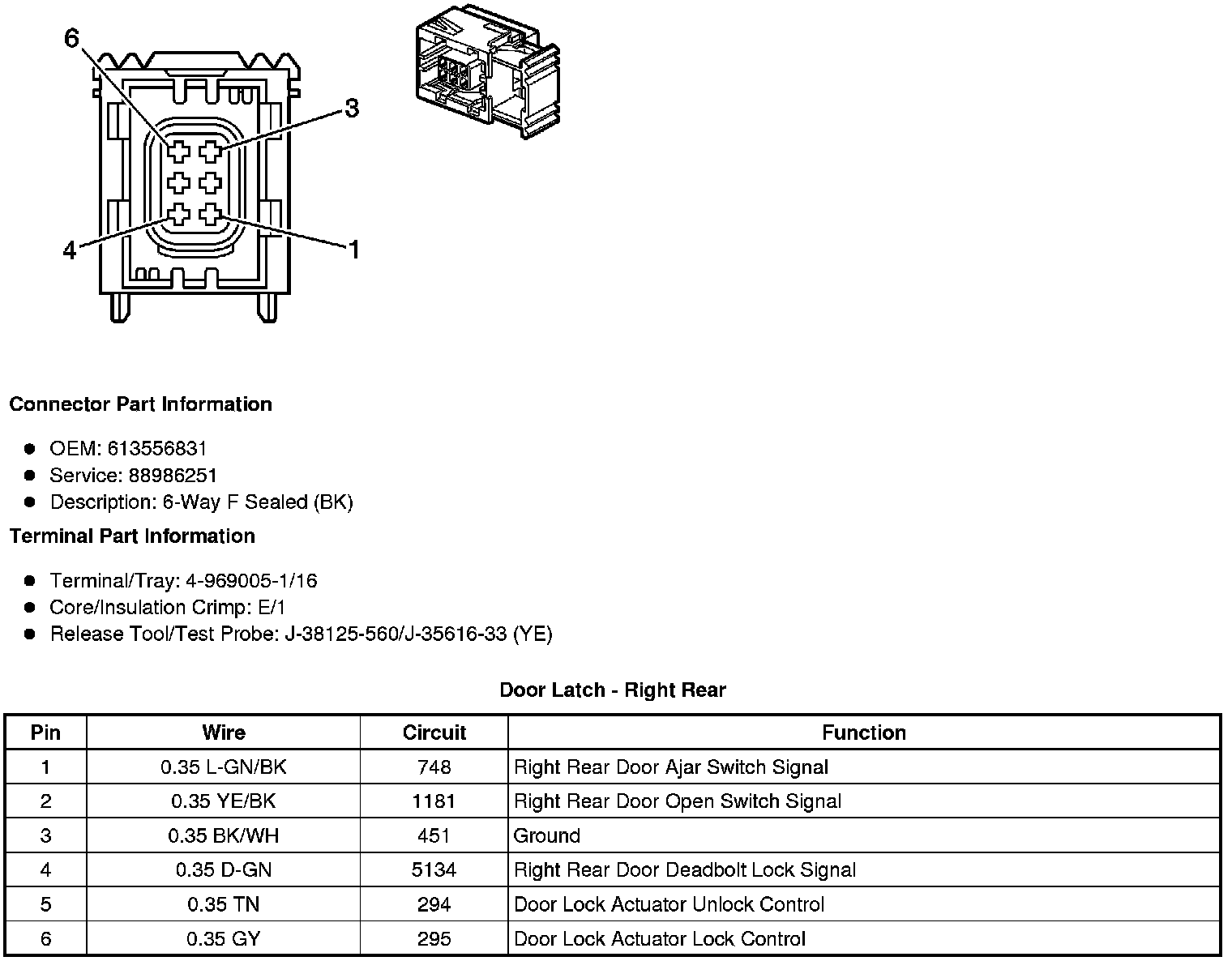

Door Latch - Right Rear
