Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

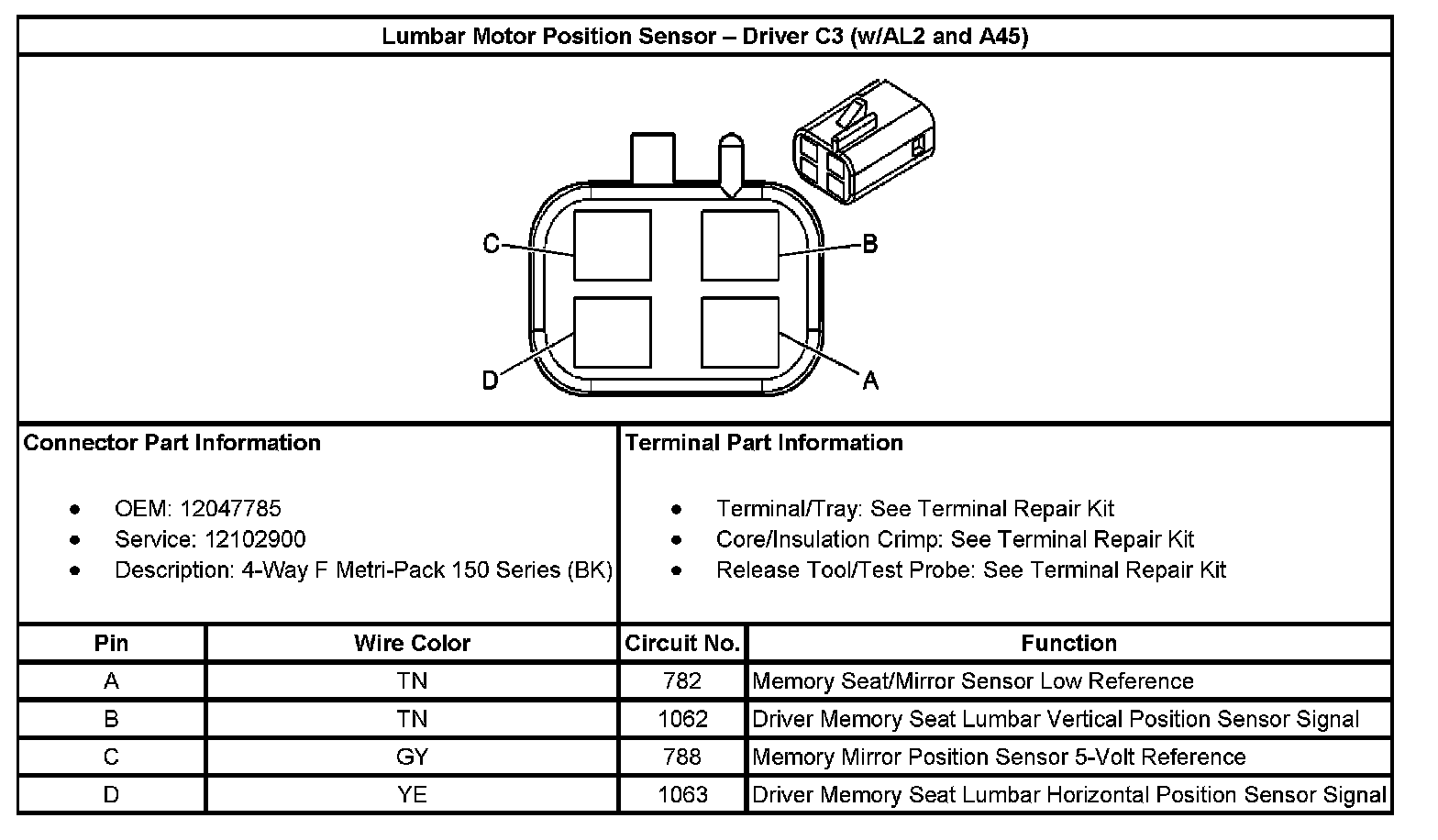

Lumbar Motor Position Sensor - Driver C3 (With RPO Code AL2 And A45):
Seat Recline Position Sensor - Driver C2 (With RPO Code A45):
