Cadillac
>>
2006
>>
STS AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heads Up Display Unit
Heads Up Display Unit

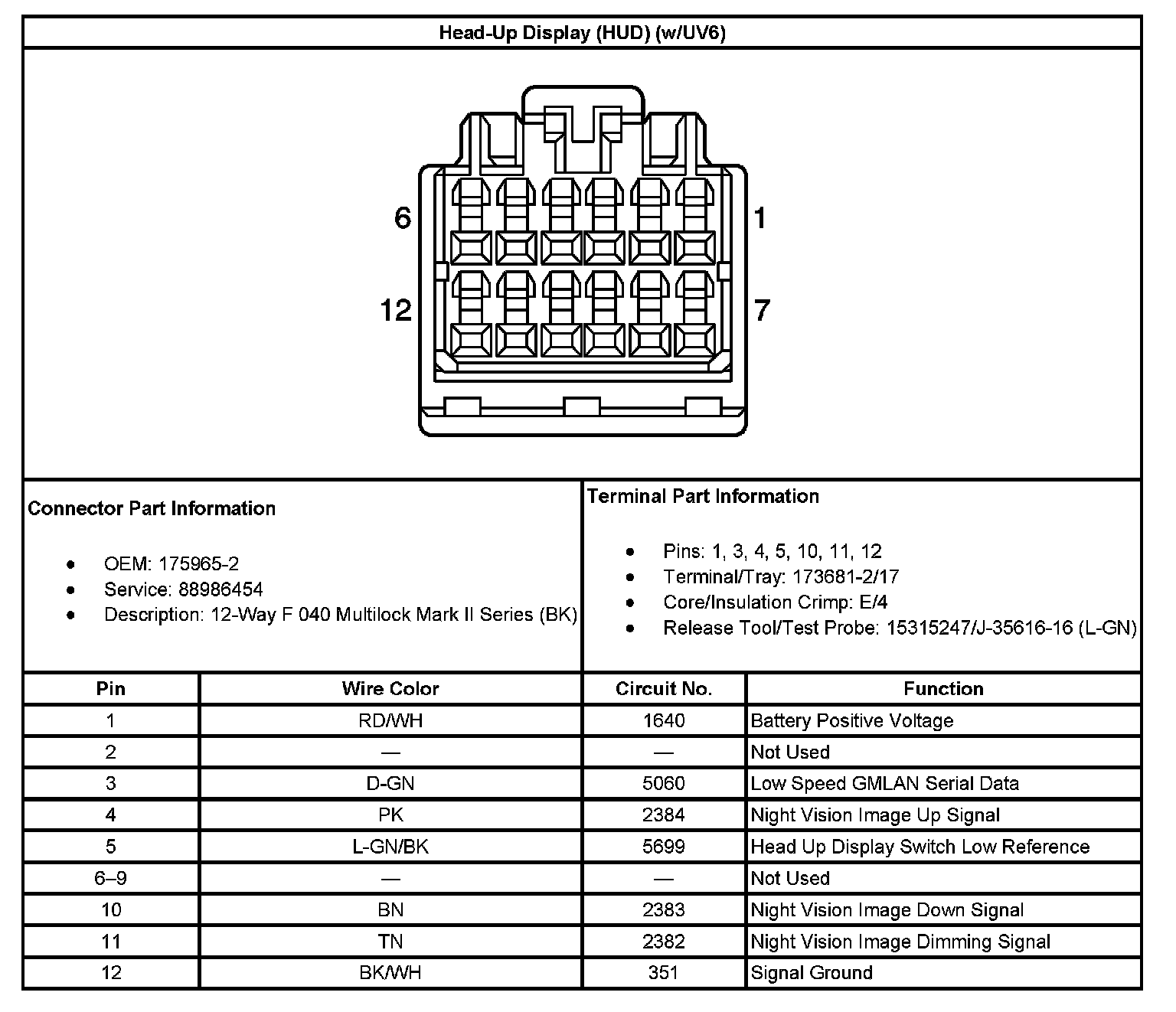

Head-Up Display (HUD) (With RPO Code UV6):
