Home >> Cadillac >> 2006 >> STS AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Service and Repair >> 6L80-E - Automatic Transmission

6L80-E - Automatic Transmission

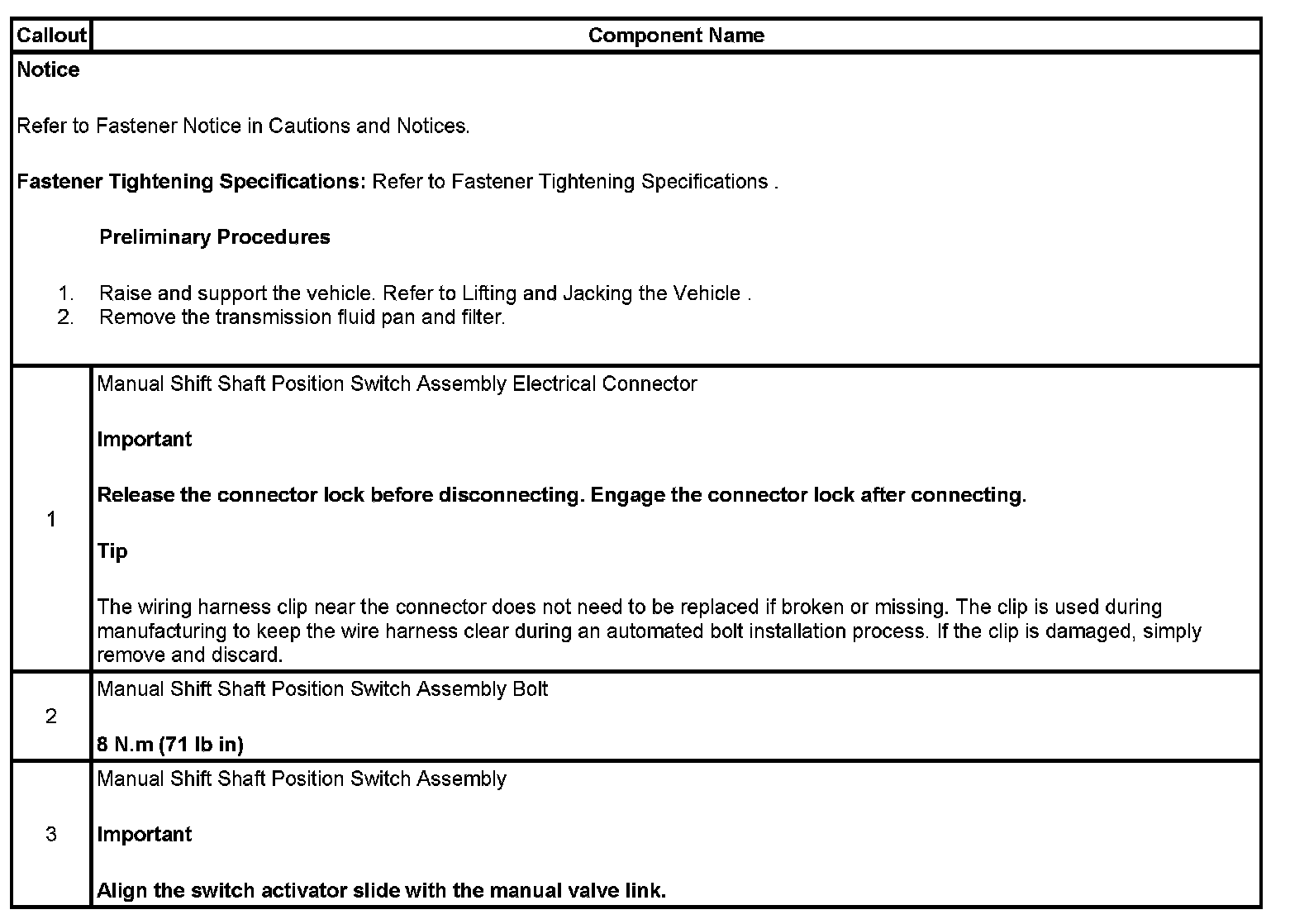

Manual Shaft Shift Position Switch Replacement
