Automatic Transmission/Transaxle
>>
Control Valve Body and Accumulator Assembly
Control Valve Body and Accumulator Assembly
Disassembled Views

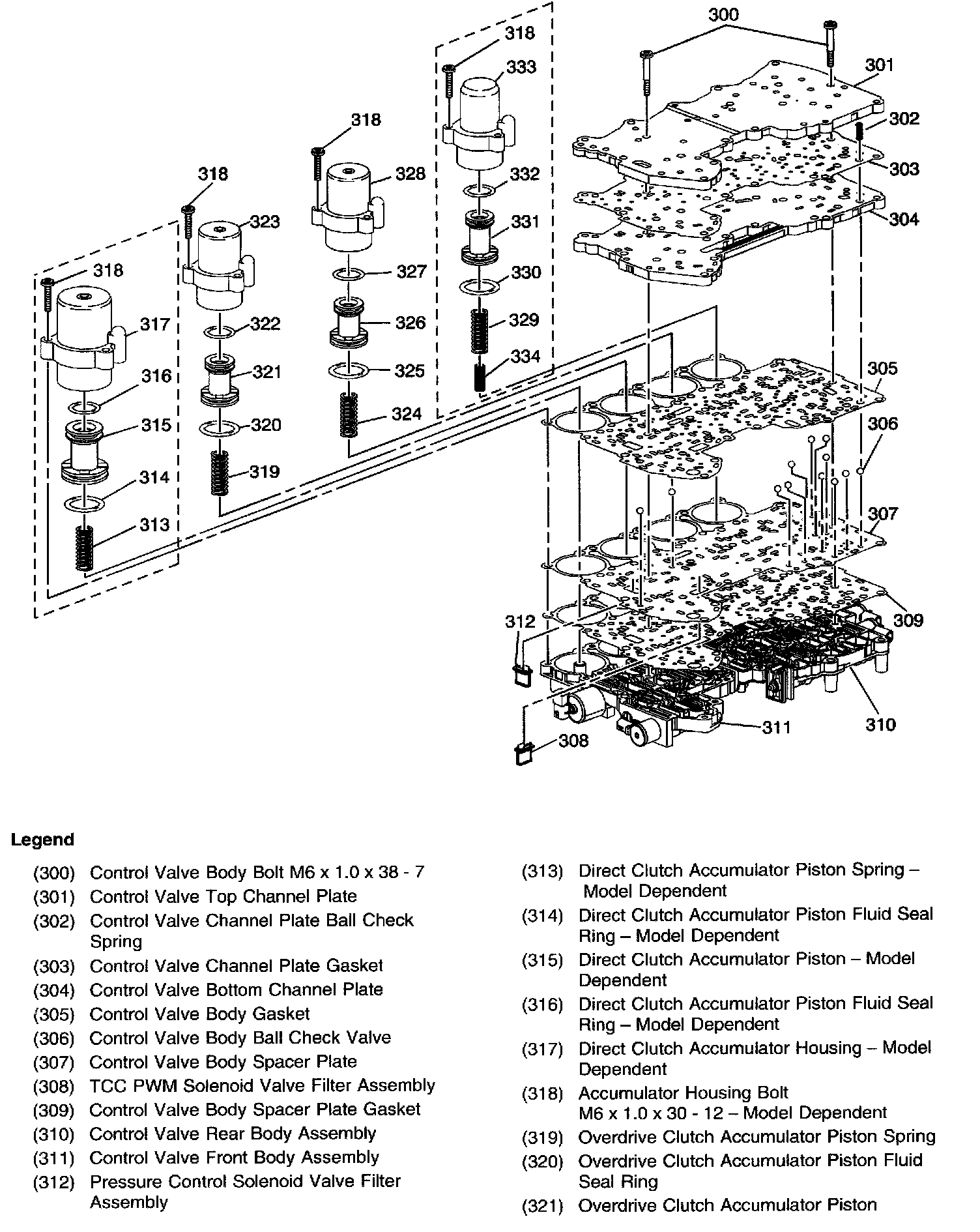

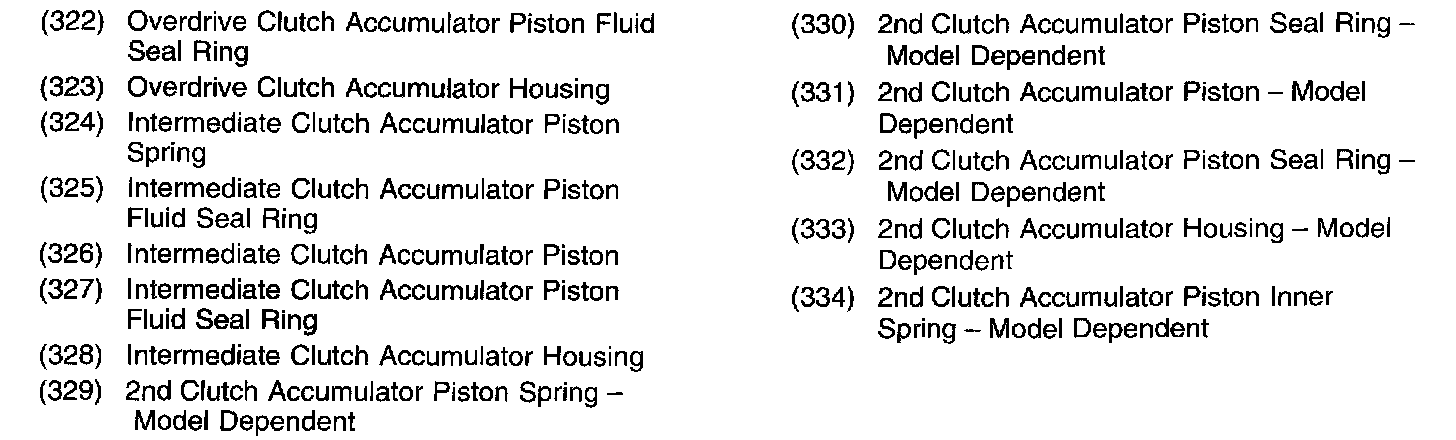

Control Valve Body and Accumulator Assembly

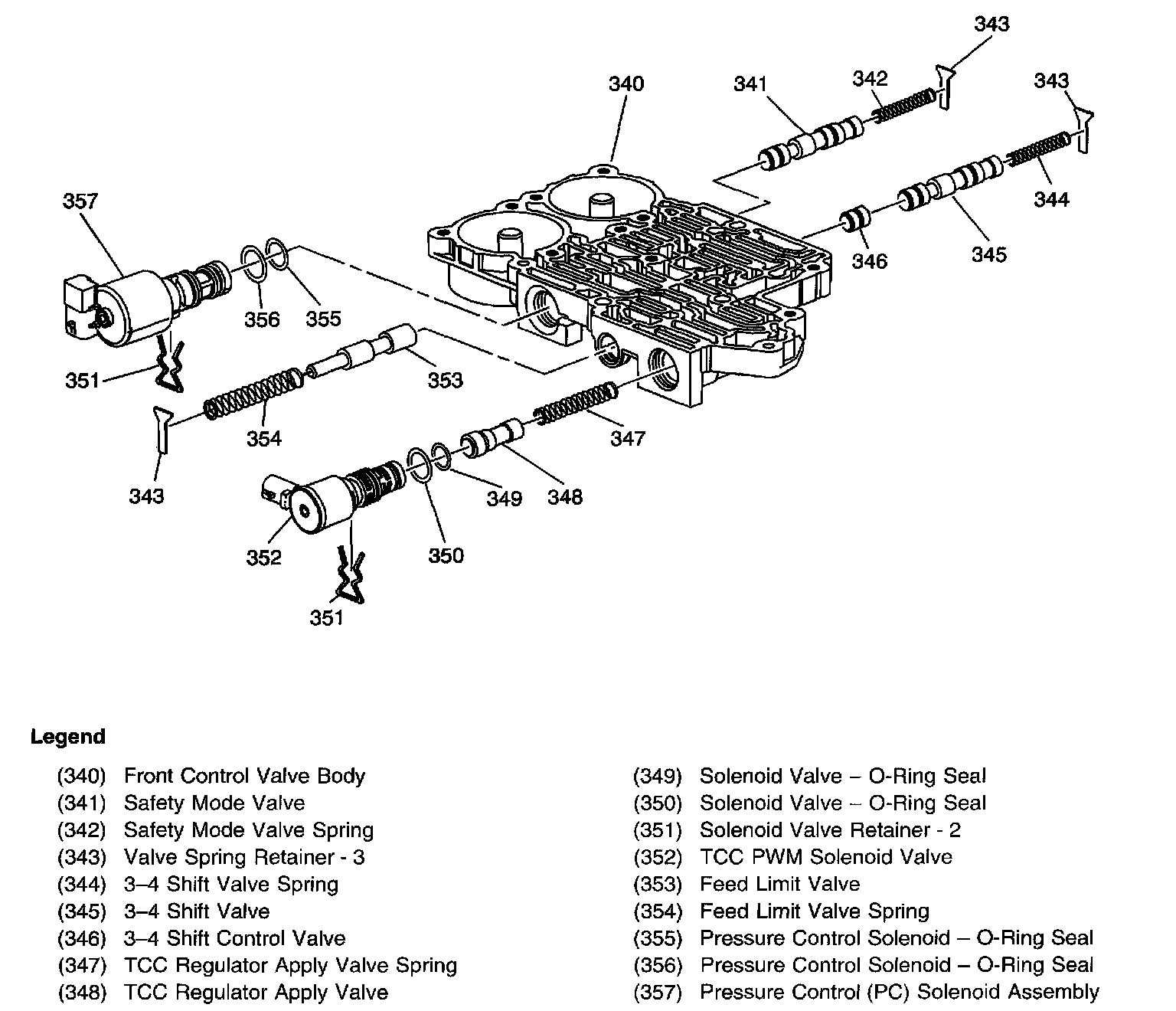

Front Control Valve Body

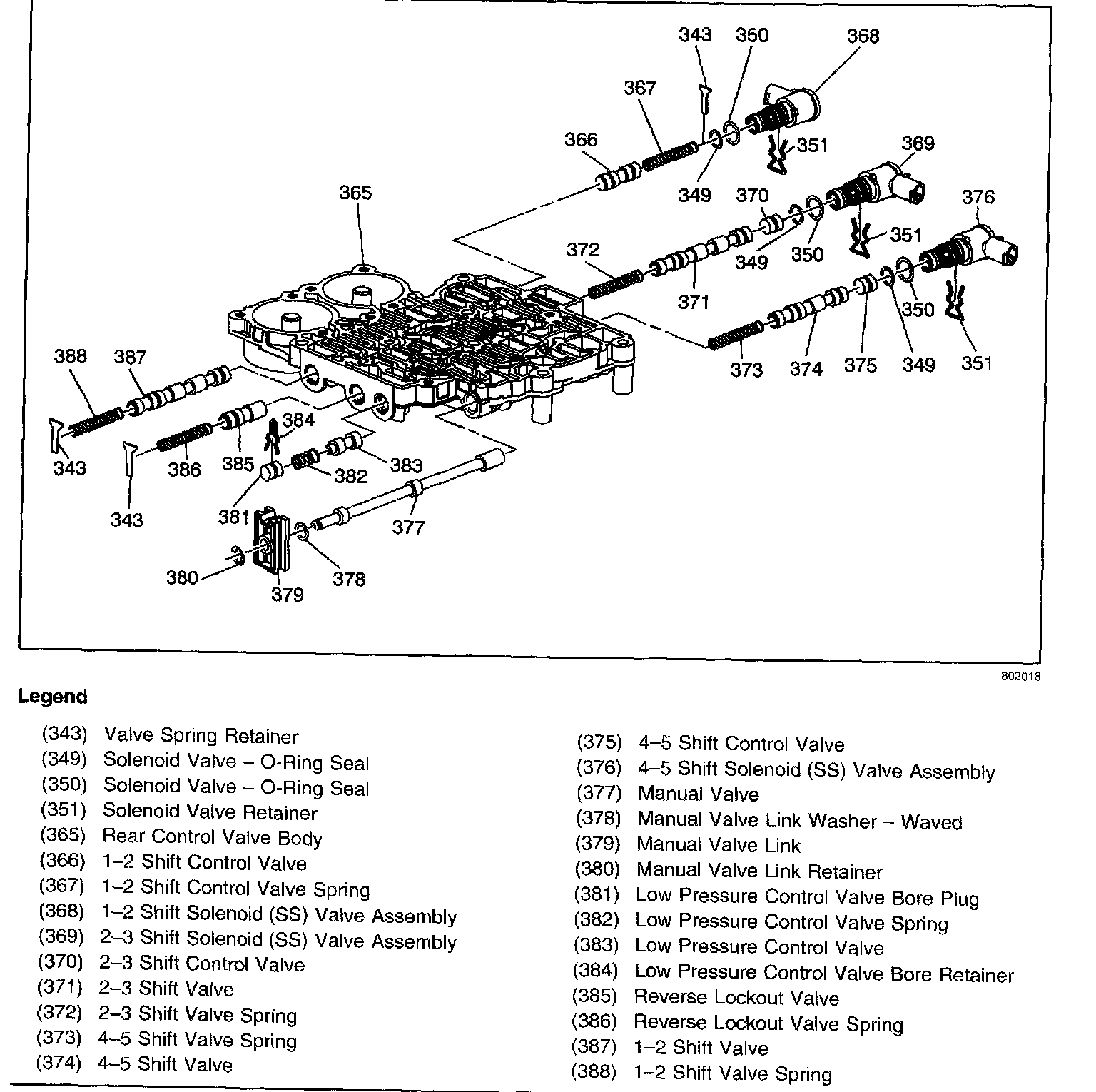

Rear Control Valve Body
