Rear Fuse Block

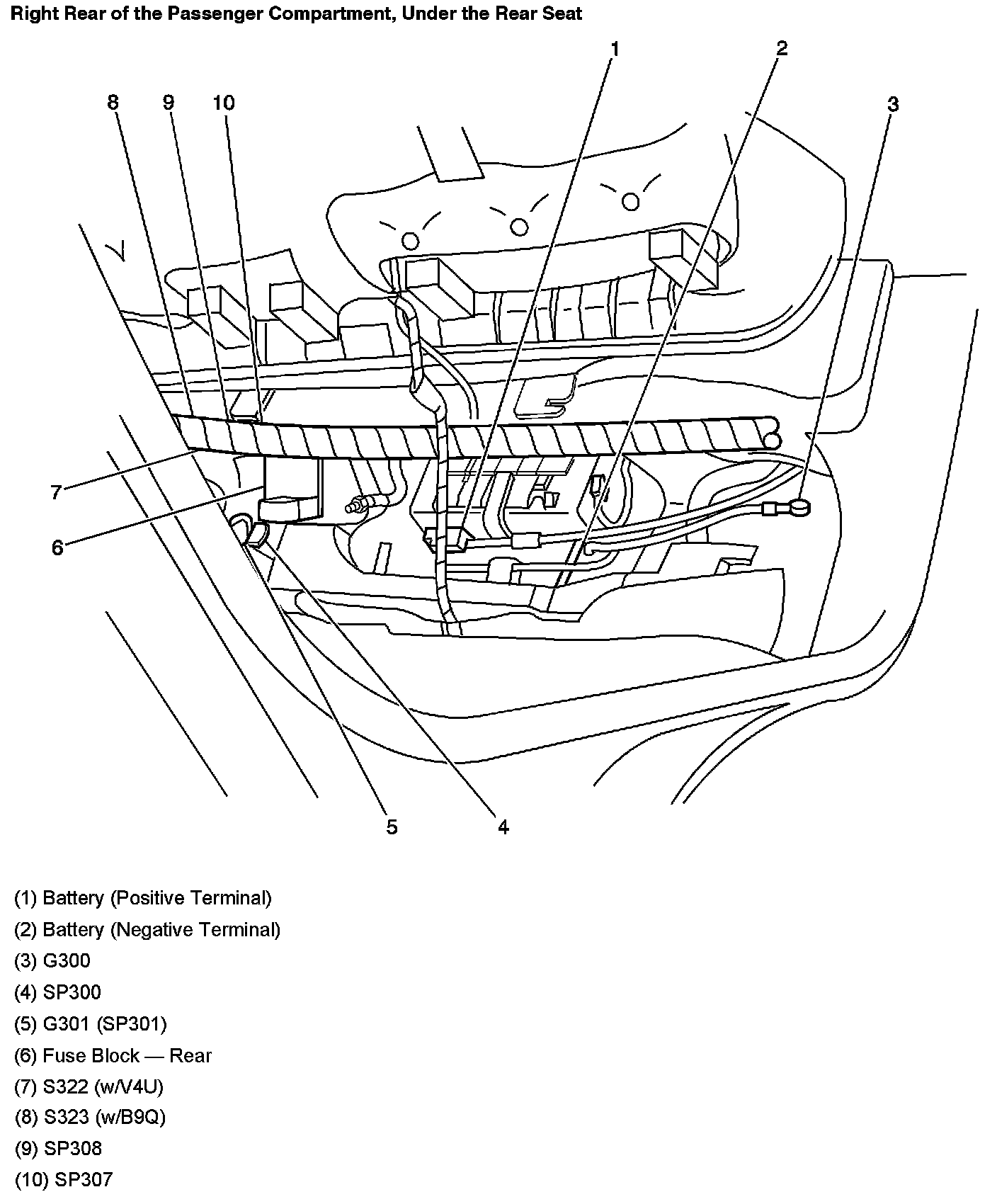

Right Rear Of The Passenger Compartment, Under The Rear Seat:

Location View:

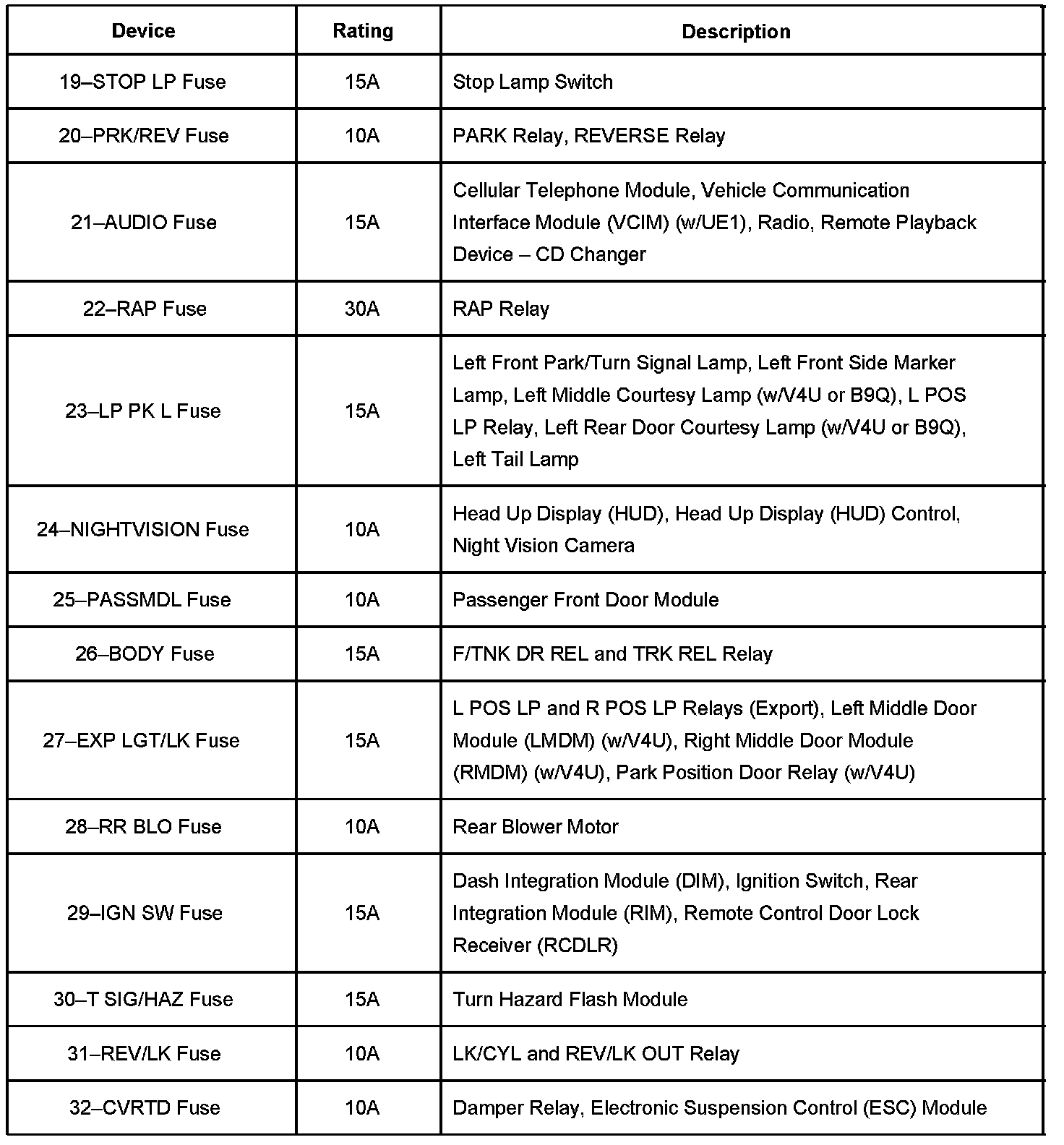

Application Table Part 1:

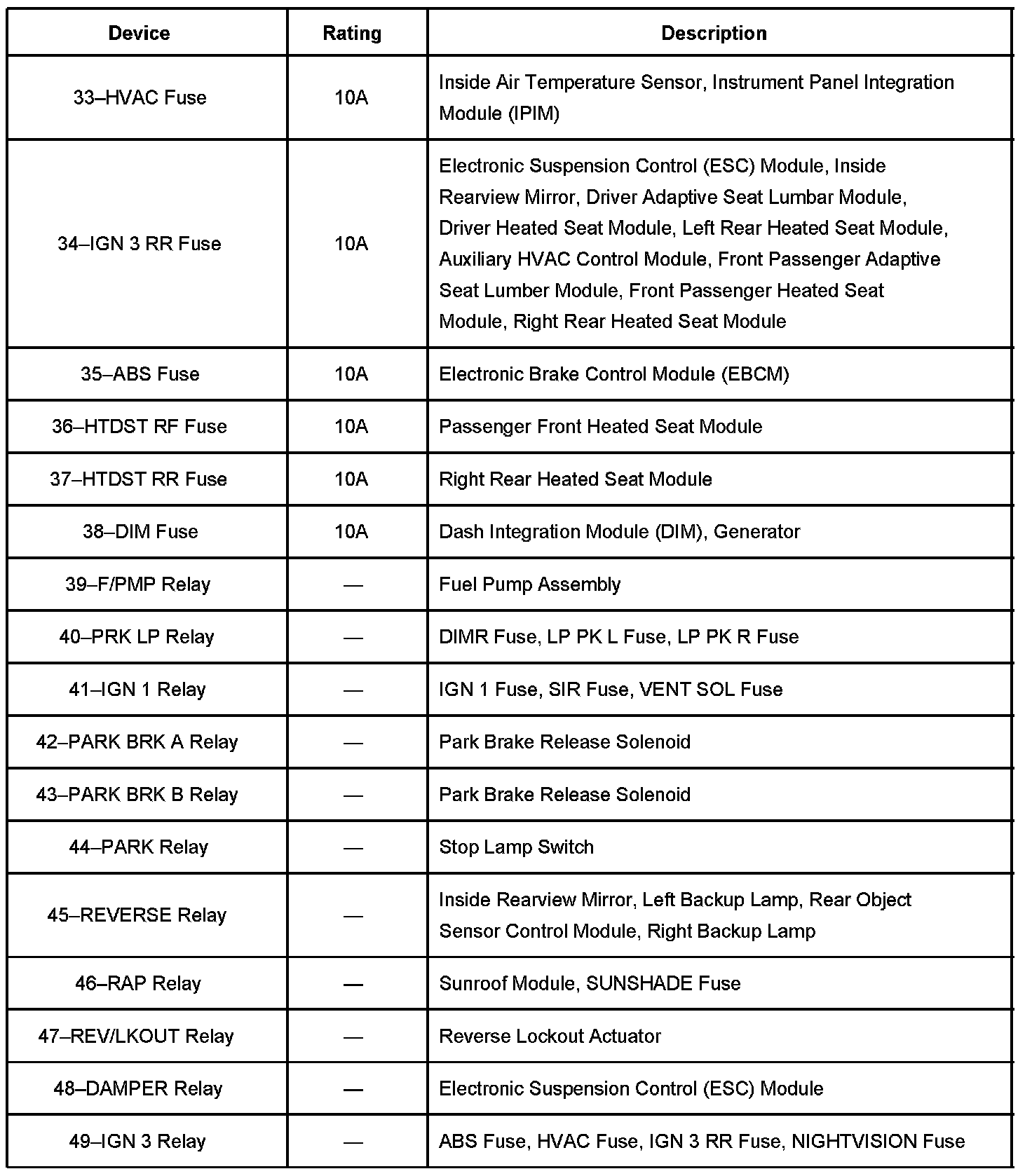

Application Table Part 2:

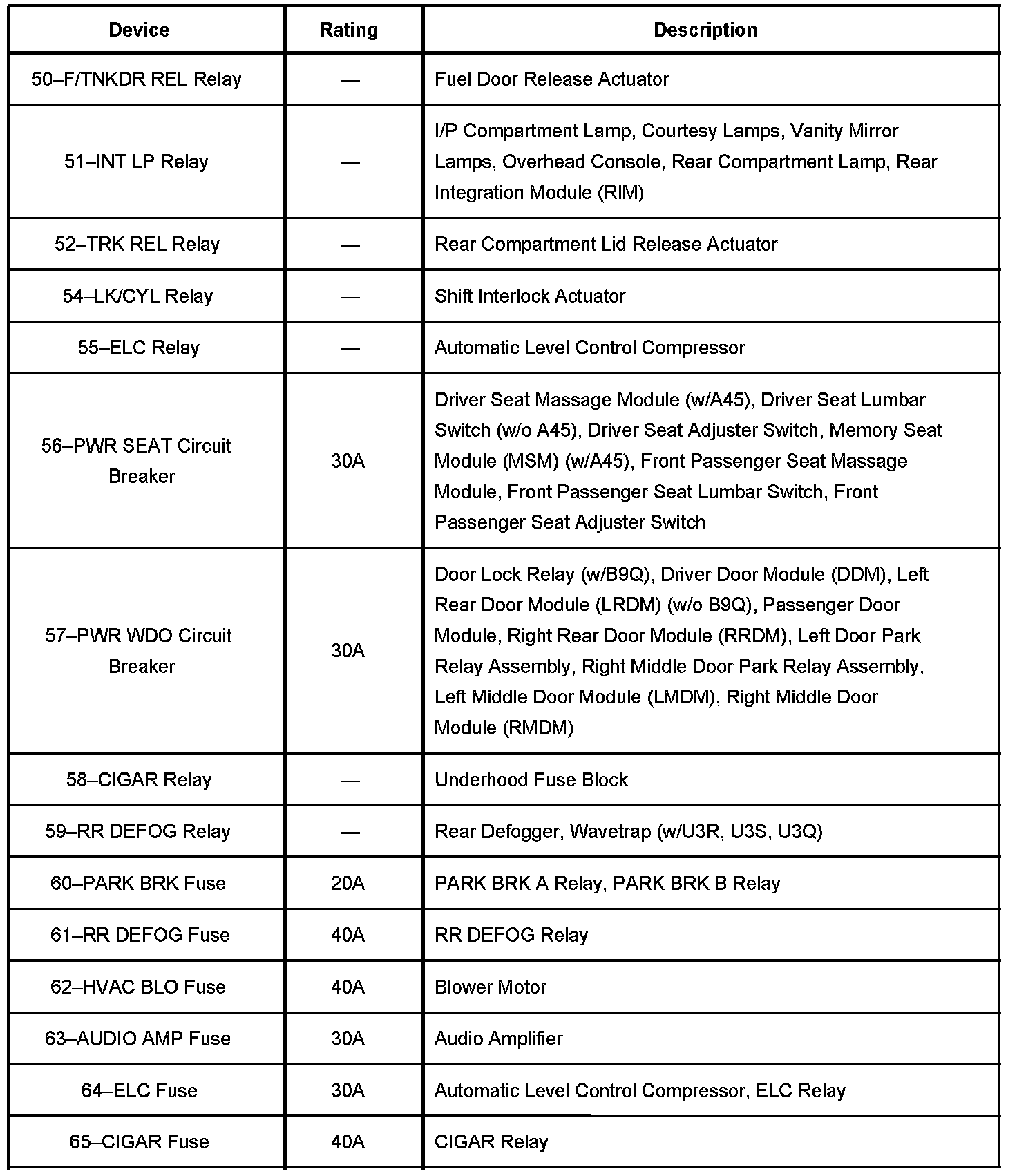

Application Table Part 3:

Application Table Part 4:

Application Table Part 5:
