Home
>>
Cadillac
>>
2004
>>
CTS V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Transmission Cases
Transmission Cases
Transmission Component Location (CTSV)

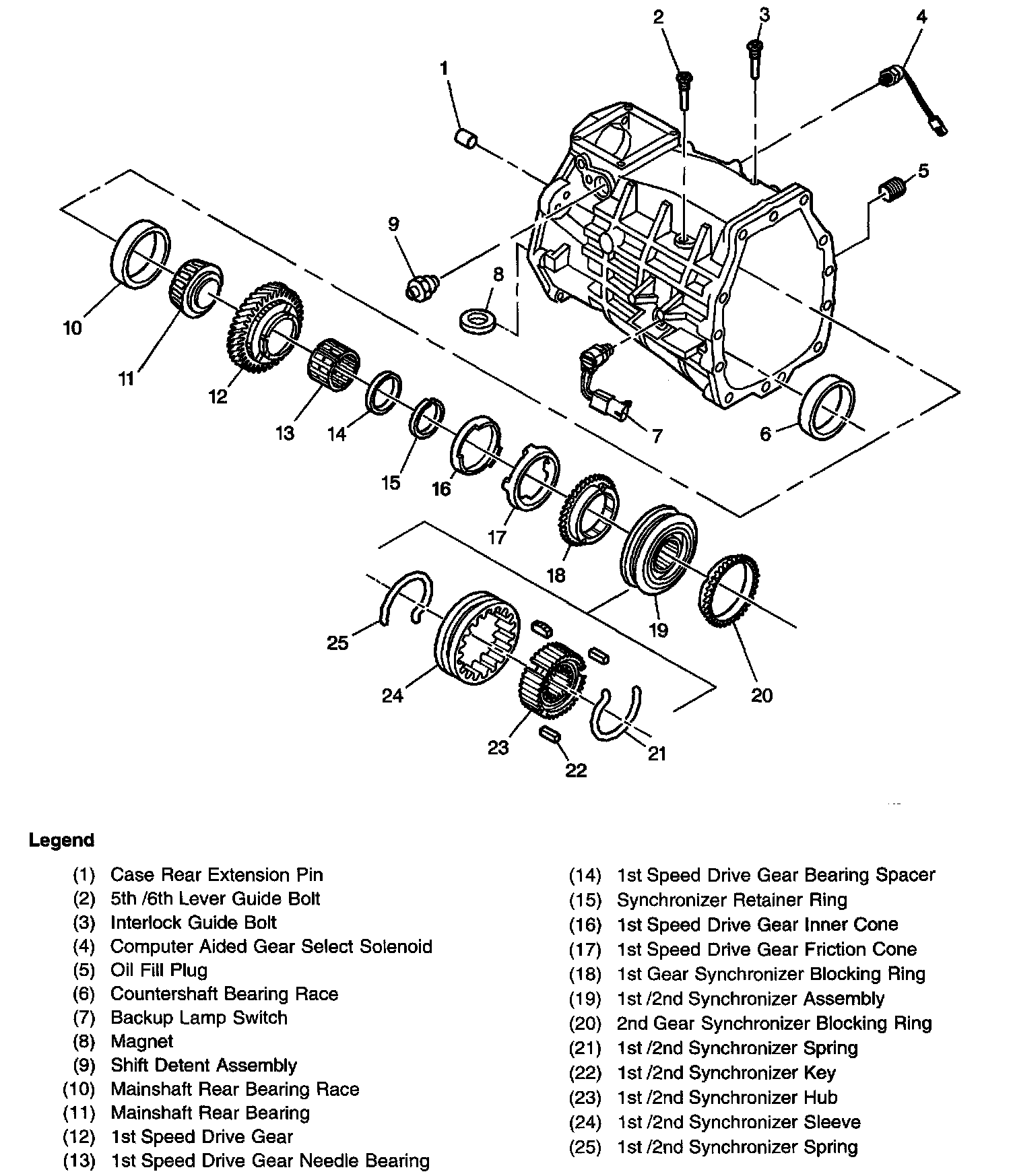

Transmission Case (1 of 2)

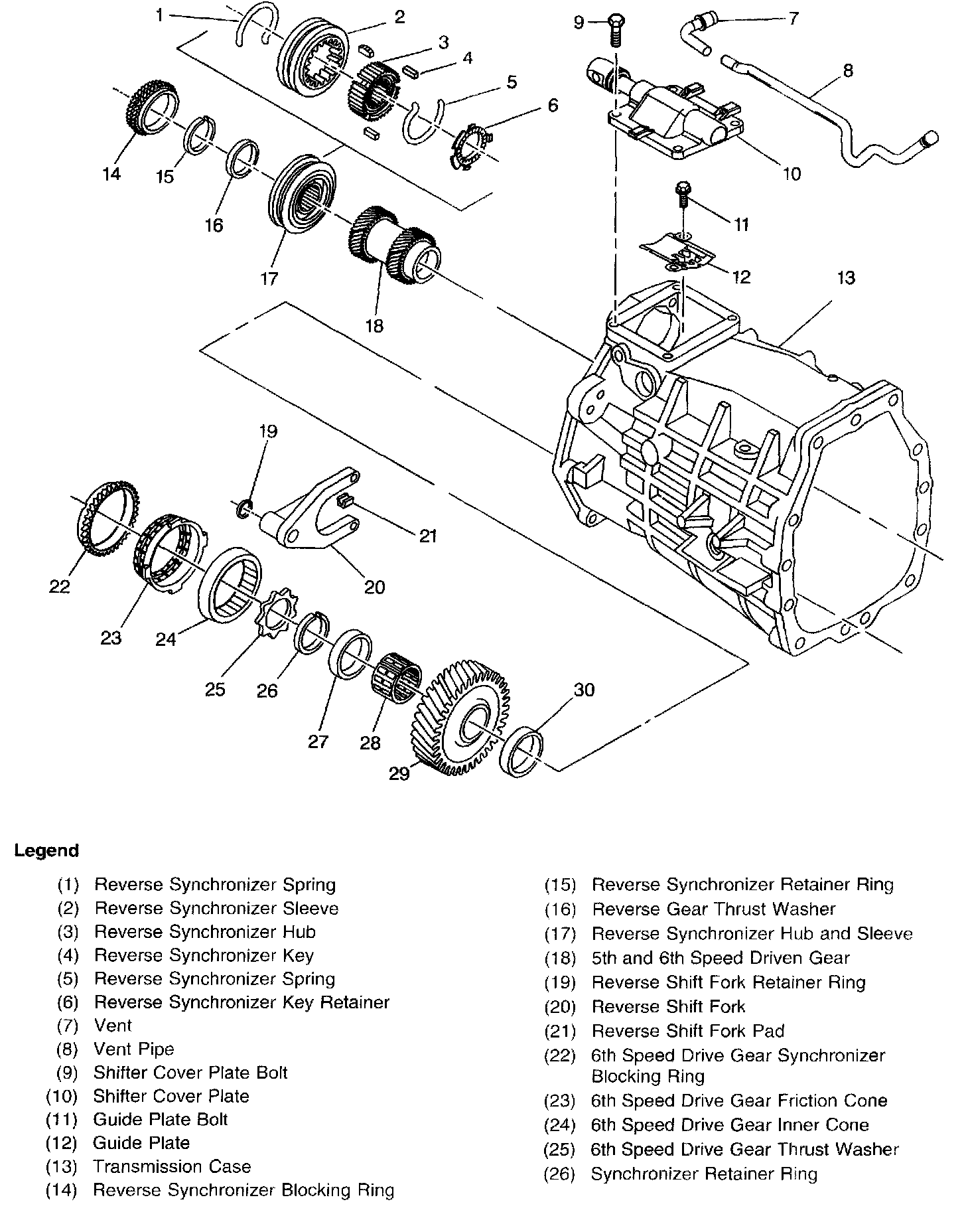

Transmission Case (2 of 2)
