Home >> Cadillac >> 2002 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Module >> LRDM Power, Ground, Inputs, Outputs, and Class2

LRDM Power, Ground, Inputs, Outputs, and Class2

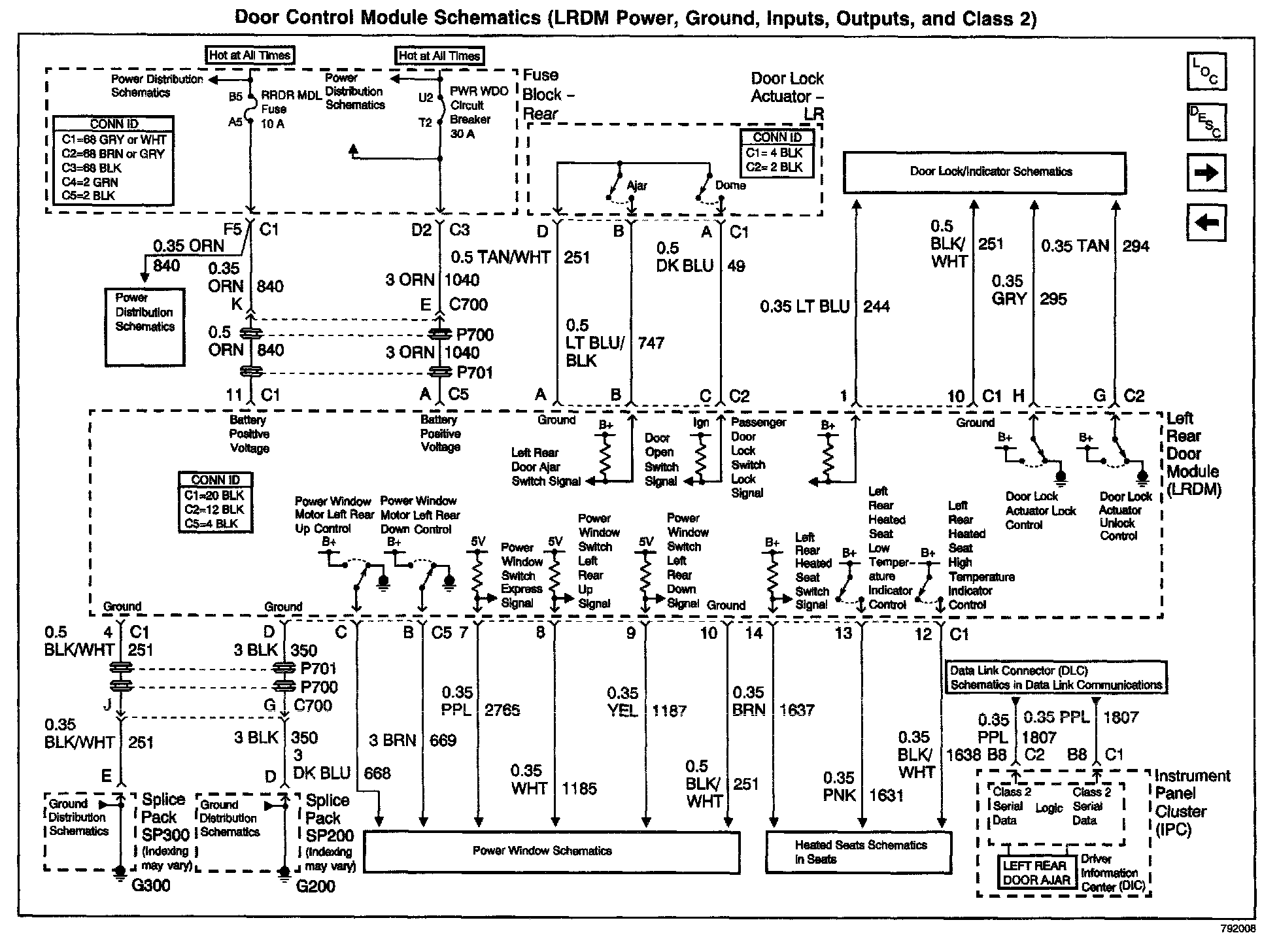

Door Control Module Schematics: LRDM Power, Ground, Inputs, Outputs, And Class 2:
