Engine Mechanical Specifications-Unit Repair





Spark Plugs






Oil Pressure (Minimum)






Cylinder Bore






Piston






Piston Rings






Piston Pin

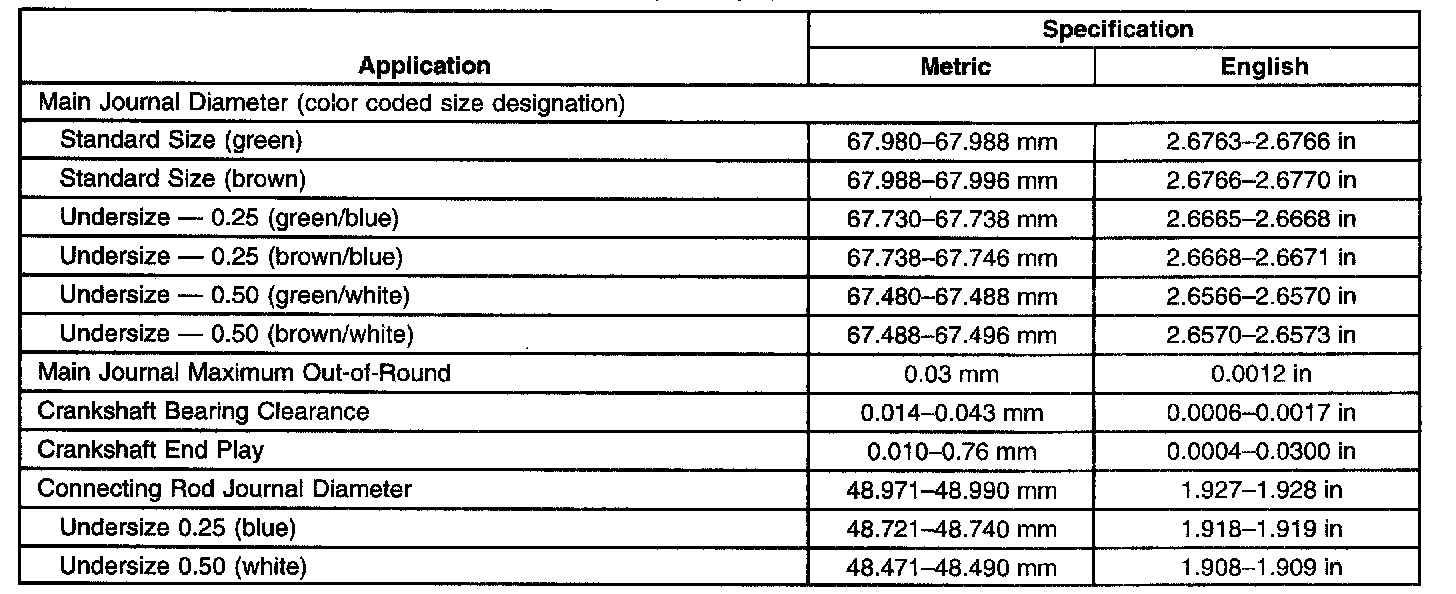

Crankshaft






Connecting Rod






Camshaft

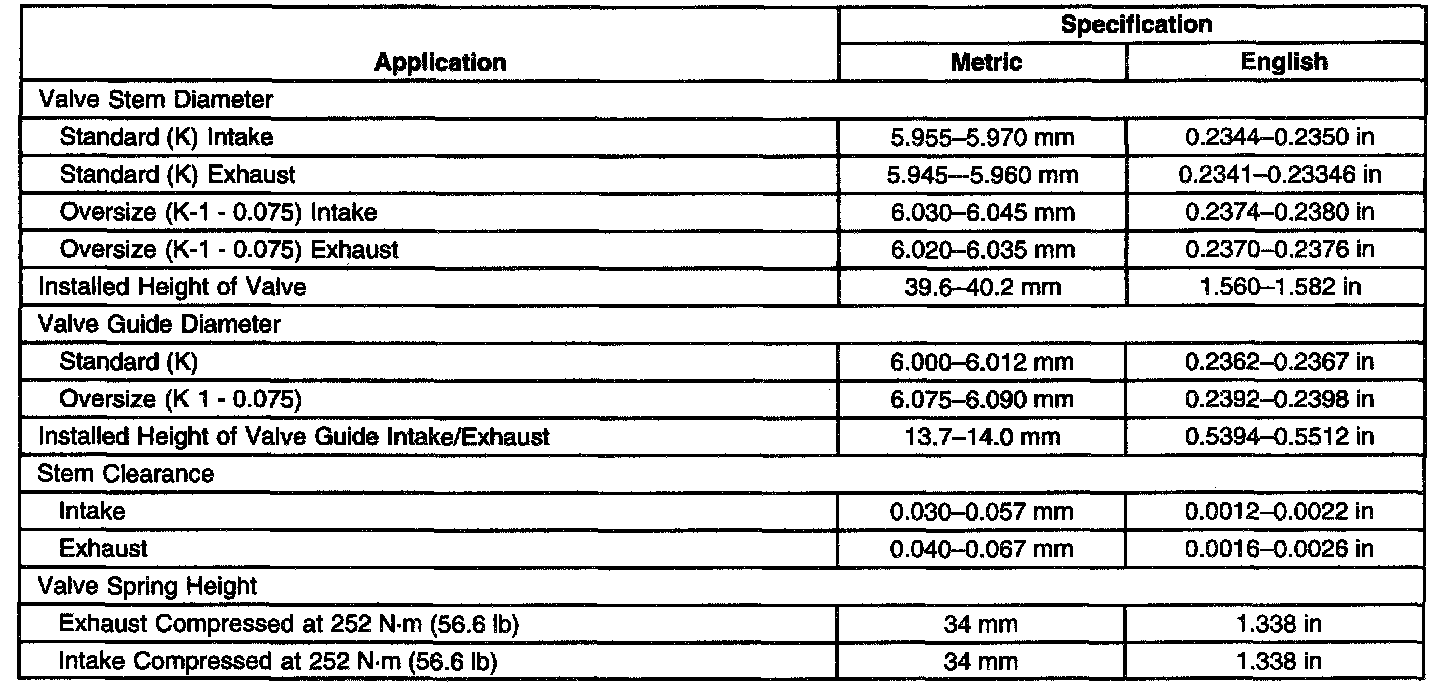

Valves






Cylinder Head
