Home
>>
Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
WSWA Switch, Interval Switch, WSW Motor and Relay
WSWA Switch, Interval Switch, WSW Motor and Relay

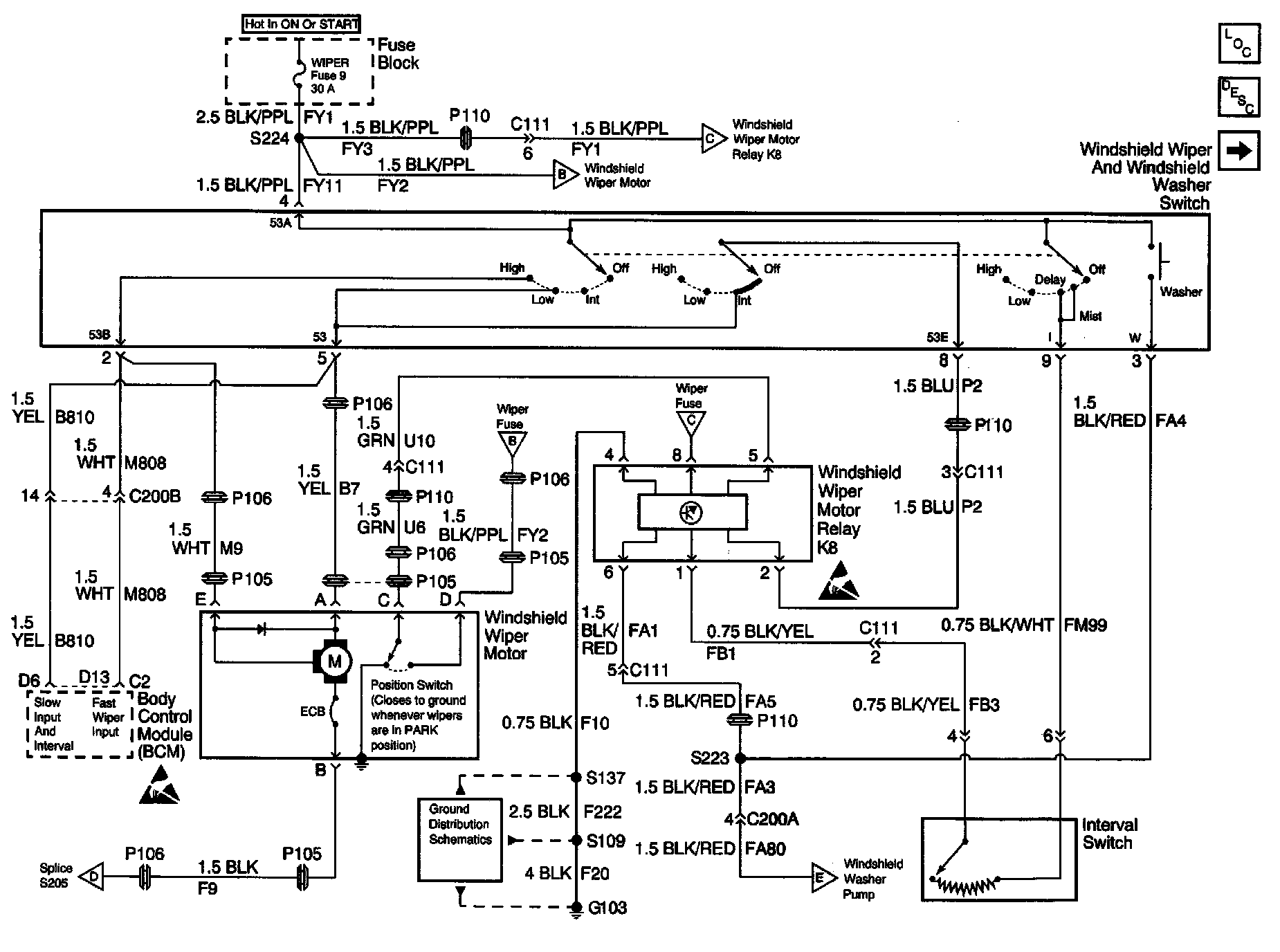

Wiper/Washer System (Pulse) Schematics: WSWA Switch, Interval Switch, WSW Motor And Relay:
