Rear Side Door Window Stop Bumper Replacement

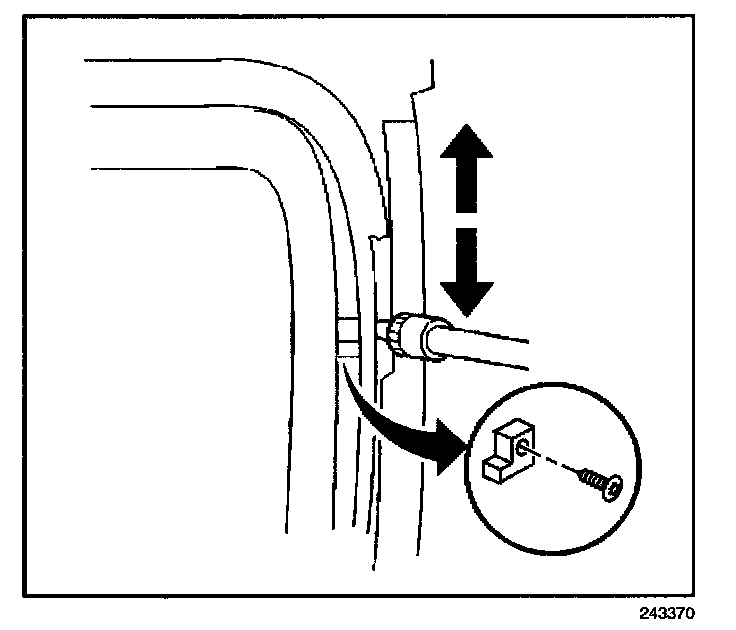

REMOVAL PROCEDURE




1. Pull the window run channel weatherstrip halfway down.
2. Remove the window up stop screw.
3. Remove the window up stop.

INSTALLATION PROCEDURE




1. Install the up stop.
2. Install the up stop screw.
3. Push the weatherstrip into place.
