Rear Side Door Window Replacement
REMOVAL PROCEDURECAUTION:
^ Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.
^ Refer to Door Window Express Down in Service Precautions.
1. Roll the window halt way up and tape into place.
2. Remove the door trim panel.
3. Remove the water deflector.
4. Remove the inner belt sealing strip.
5. Remove the outer belt sealing strip.
6. Remove the door window weatherstrip.

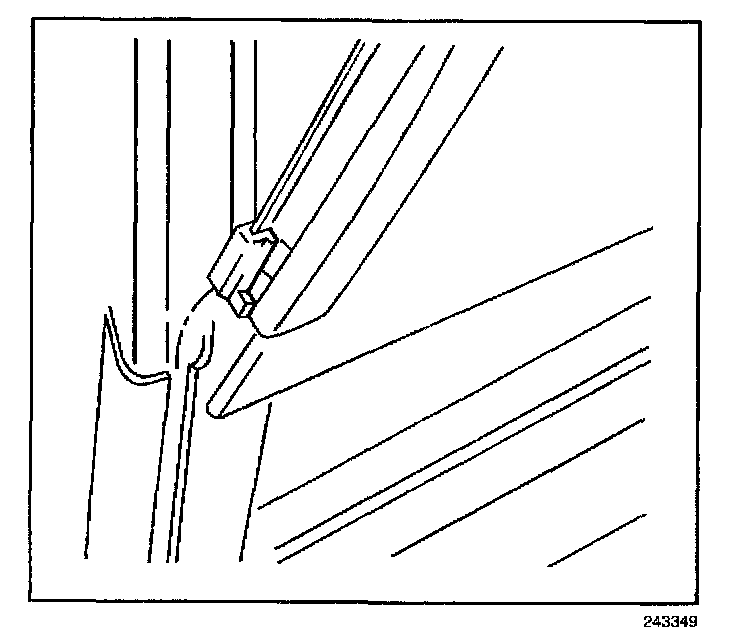

7. Remove the door vent window and division channel.
8. Remove the tape from door window.

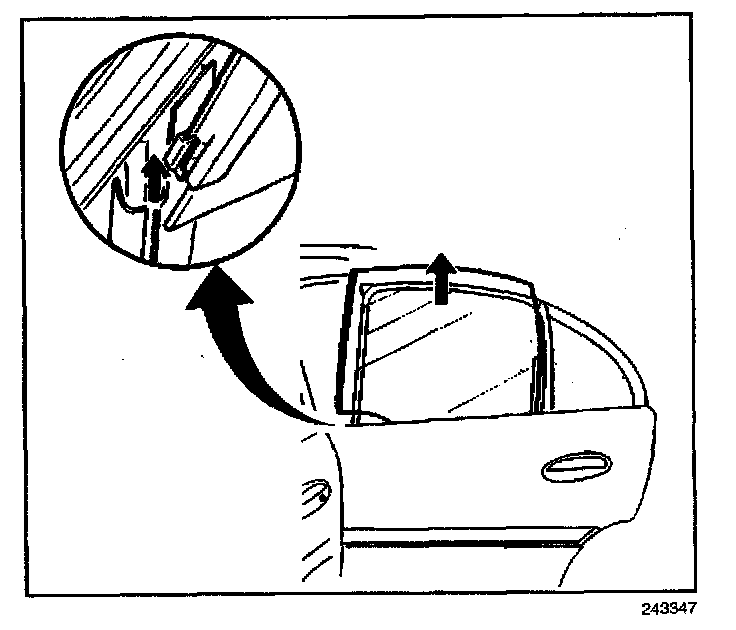

9. Remove the door window from the door.
INSTALLATION PROCEDURE
1. Install the door window to the door.
2. Tape the door window into place.
3. Install the door vent window division channel.
4. Install the door window weatherstrip.
5. Install the outer belt sealing strip.
6. Install the inner belt sealing strip.
7. Install the water deflector.
8. Install the door trim panel.
9. Remove the tape from the window.
