Window Stop Bumper Replacement - Front Door

REMOVAL PROCEDURE




1. Open the front side door.
2. Grasp the door upper sealing strip at the upper outer corner and pull downward to expose the window stop bumper.

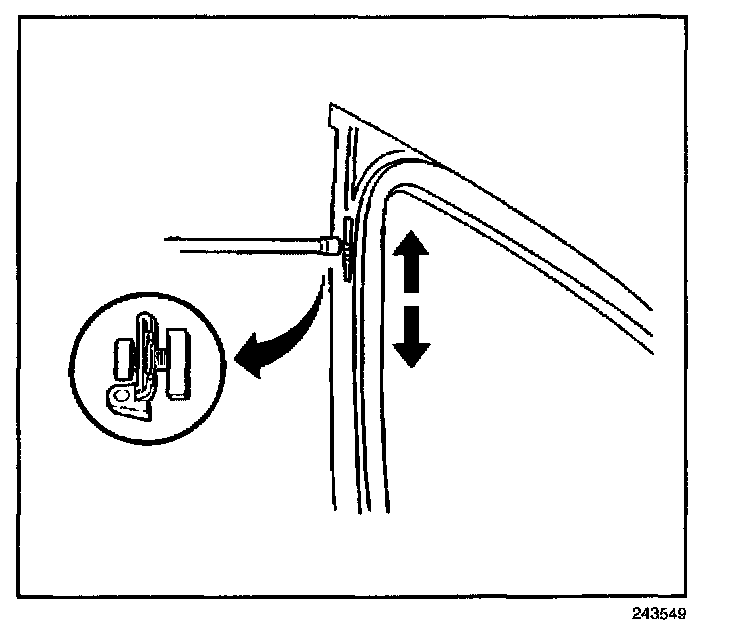

3. Remove the window up stop screw.
4. Remove the window up stop.

INSTALLATION PROCEDURE

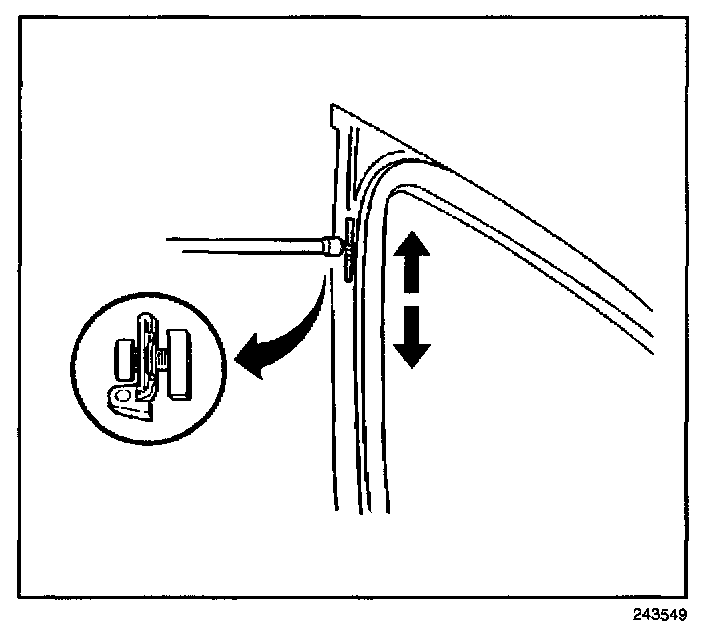

1. Install the stop bumper.
2. Install the stop bumper screw.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Tighten the stop bumper screw.

Tighten
Tighten the window stop bumper screw to 4 N.m (35 lb in).

4. Push the run channel weatherstrip back into place.
5. Close the front side door.
