Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Fuses, Front and Rear Door Switches and Window Regulator Motors
Fuses, Front and Rear Door Switches and Window Regulator Motors

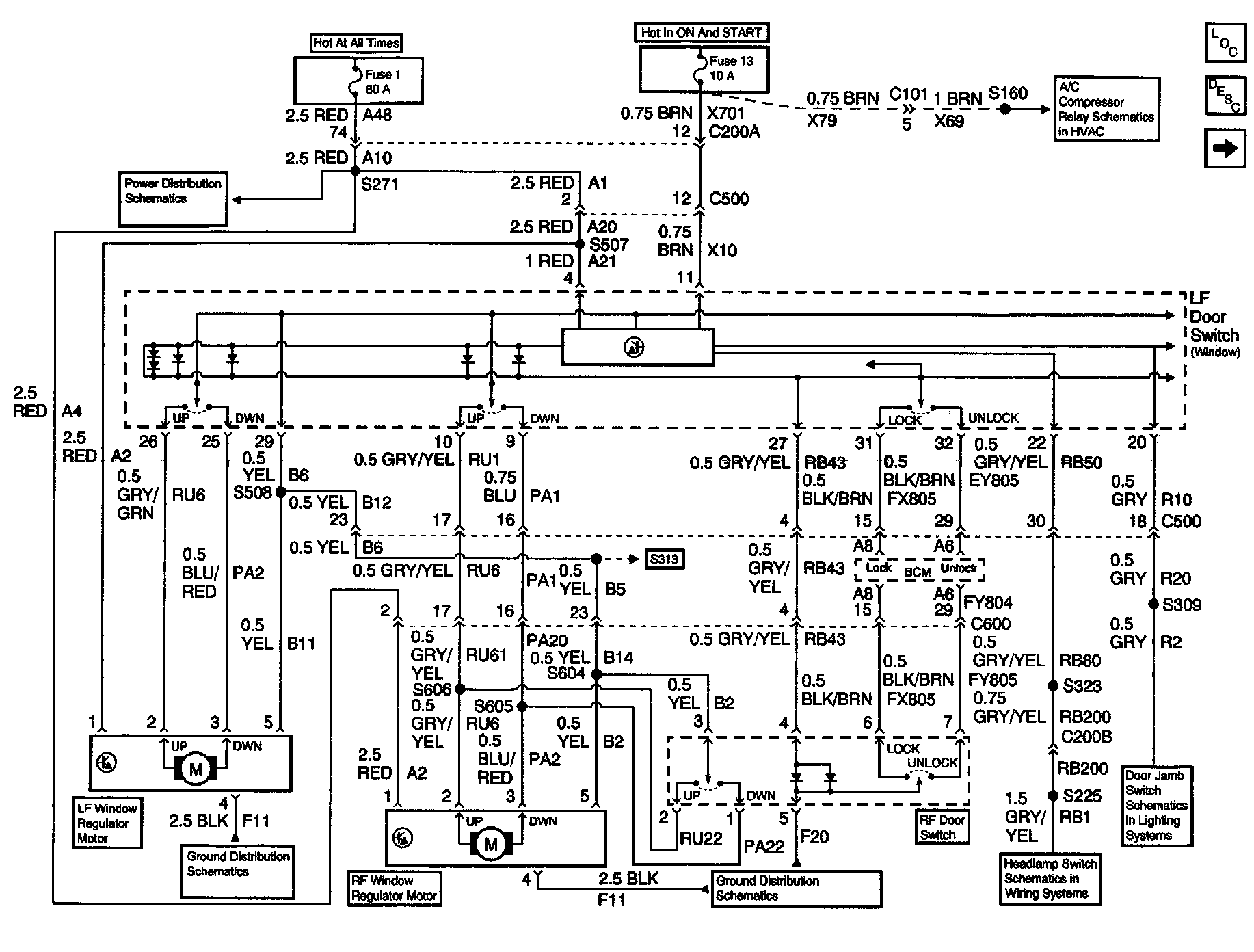

Power Window Schematics: Fuses, Front And Rear Door Switches And Window Regulator Motors:
