Flex Plate: Service and Repair

Removal Procedure

- Tools Required
- J 36660-A Torque/Angle Meter
- J 42098 Crank Hub Torx Socket





1. Remove the transmission.
2. Counterhold the crankshaft with J 42098 and remove the flywheel bolts.
3. Remove the flywheel from the crankshaft.

Installation Procedure





1. Clean the rear crankshaft flange.

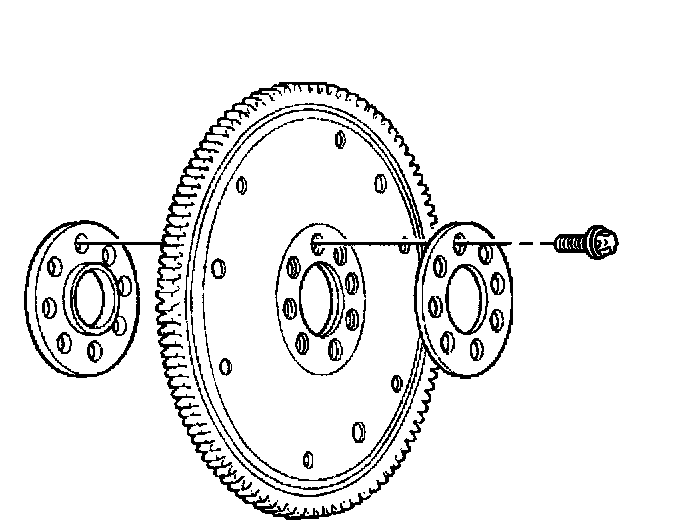

2. Install the flywheel to the crankshaft.
3. Install the transmission.
