86. Adapter Case Wiring Harness Installation
86. Adapter Case Wiring Harness Installation

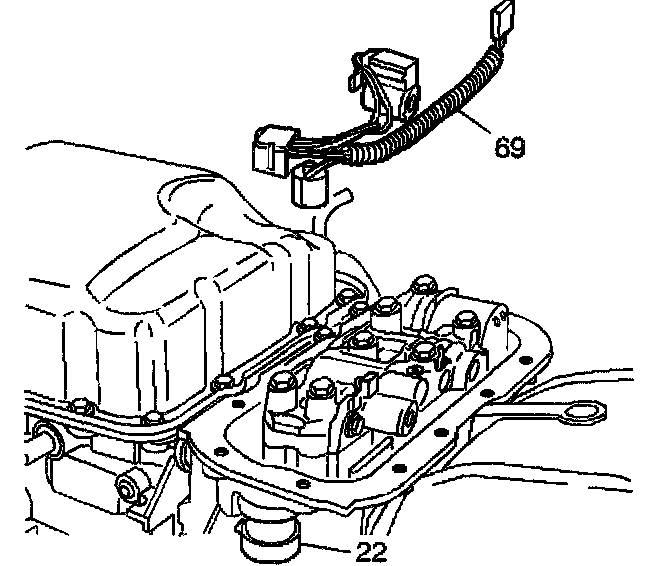

1.
Install the adapter case electrical connector (22).
2.
Install the adapter case wire harness assembly (69).
3.
Connect the wire harness connectors to the electrical components.
