68. Extension Housing Assemble
- Tools Required- J 36797 Extension Housing Seal Installer

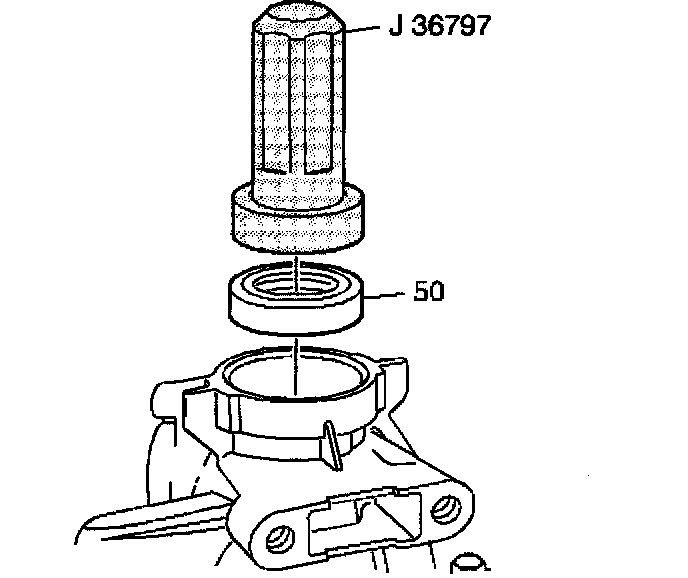

1. Install the extension housing seal (50) using J 36797.

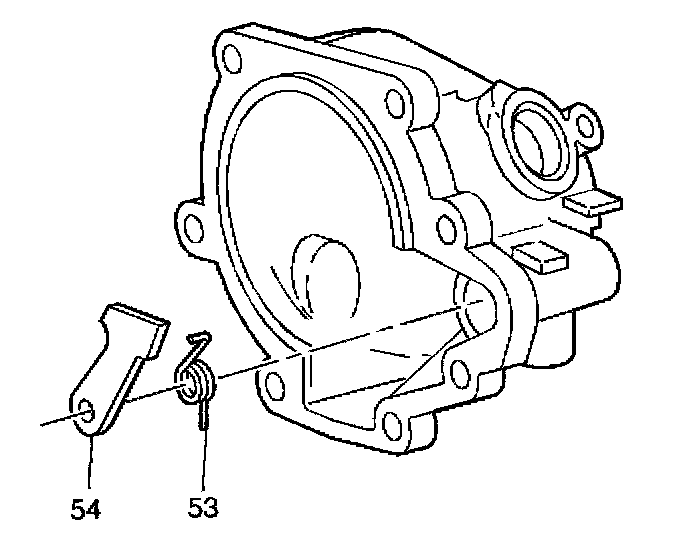

2. Install the parking lock pawl spring (53).
3. Install the parking lock pawl (54).
- J 36797 Extension Housing Seal Installer
1. Install the extension housing seal (50) using J 36797.
2. Install the parking lock pawl spring (53).
3. Install the parking lock pawl (54).
