47. Determining Main Case Selective Washer Thickness

- Tools Required
- J 23085-A Selective Washer Gauge





1. Install J 23085-A on the transmission case flange and against the input shaft.
2. Loosen the thumb screw on J23085-A.
3. Position the inner shaft of J 23085-A against the thrust surface of the second clutch hub.
4. Tighten the thumb screw.
5. Remove J 23085-A.

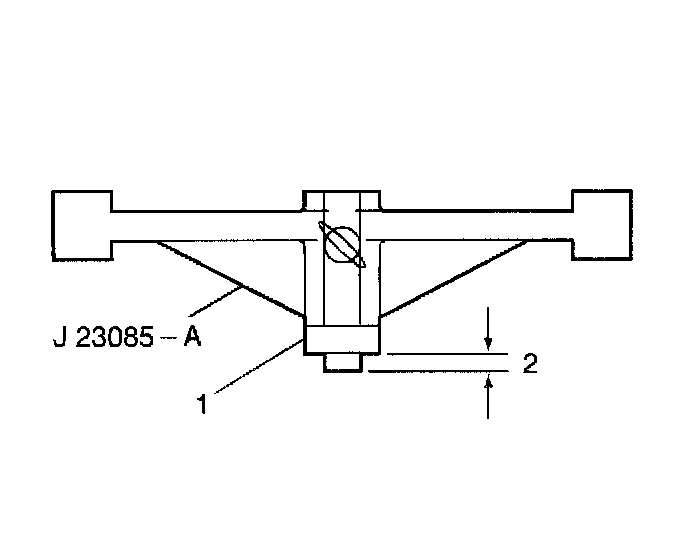

6. Place the spacer ring (1) on the inner shaft of the J 23085-A.
