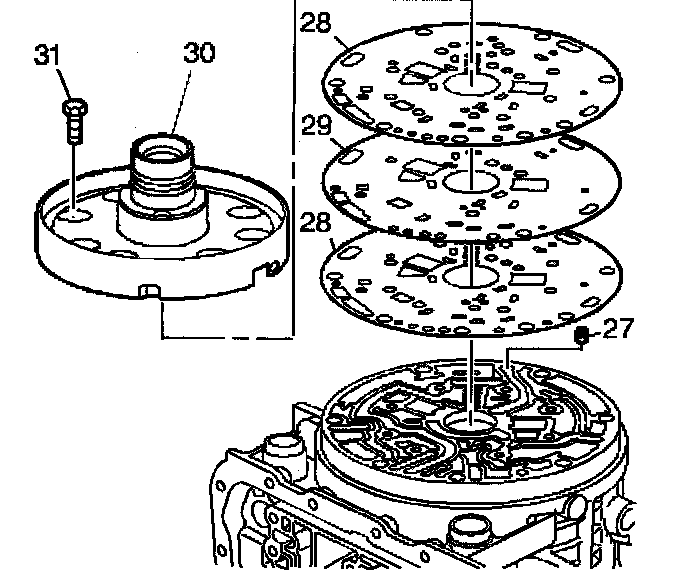

46. Center Support Assembly Installation

1. Install the oil restrictor (27).
2. Install the spacer plate to adapter case gasket (28).
3. Install the center support spacer plate (29).
4. Install the spacer plate to center support gasket (28).
5. Install the center support assembly (30).

Notice: Refer to Fastener Notice in Service Precautions.

6. Install the center support bolts (31).
- Tighten the bolts to 25 Nm (18 ft. lbs.).
