3. Draining Transmission Fluid

1. Remove the drive flange nut (47).
2. Remove the drive flange(49).
3. Remove the drive flange seal (48).

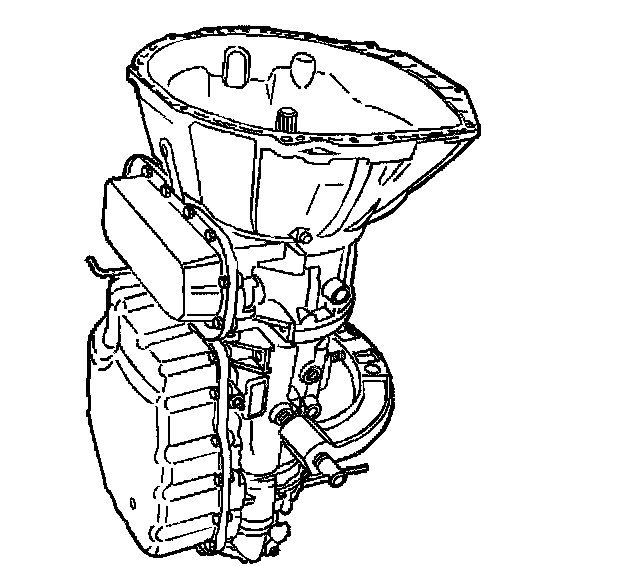

4. Slowly rotate the transmission to a vertical position to drain the transmission fluid out of the extension housing.
