2. Holding Fixture Installation

- Tools Required
- J 8763-02 Holding Fixture
- J 3289-20 Holding Fixture Base

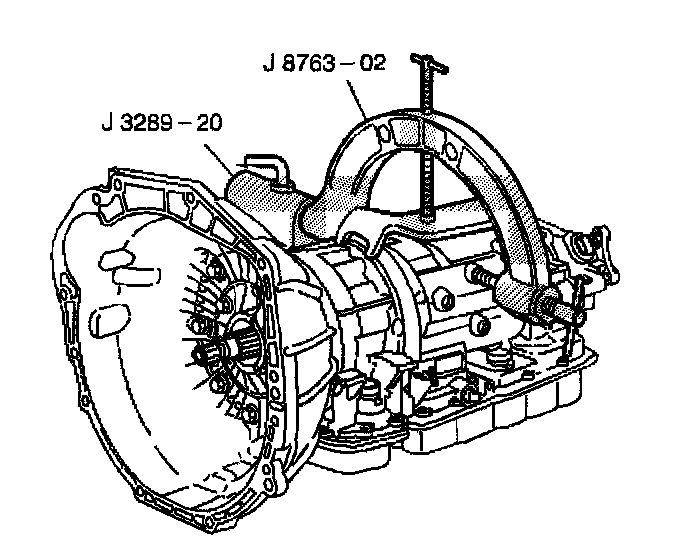

1. Install J 8763-02 onto the transmission assembly.
2. Install the transmission assembly and J 8763-02 into J 3289-20 and use the fixture pin to lock the holding fixture in place.
