14. Extension Housing Removal

- Tools Required
- J 23129 Universal Seal Remover
- J 6125-1B Slide Hammer

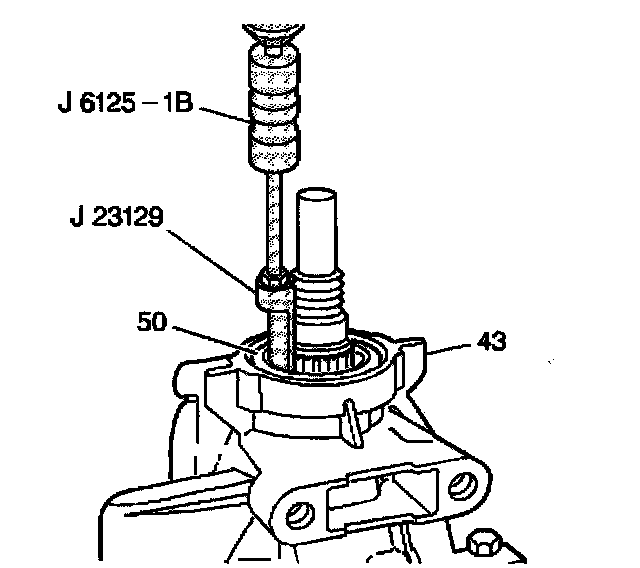

1. Remove the extension housing seal (50) using J 23129 and J 6125-1B.

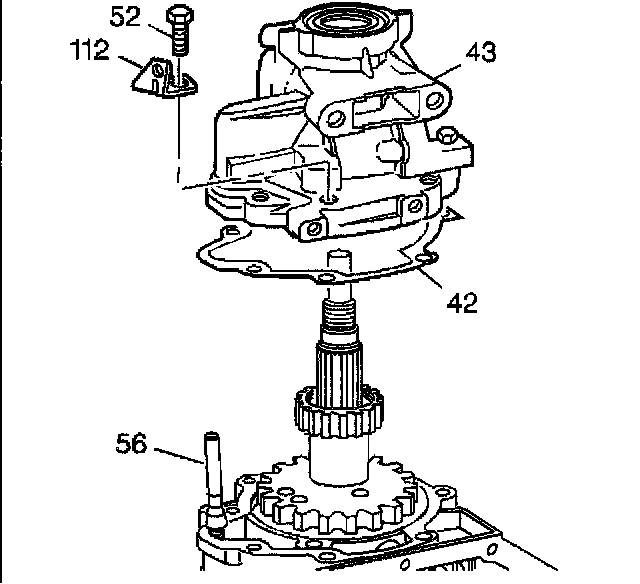

2. Remove the extension housing bolts (52).
3. Remove the bracket (1112).
4. Remove the extension housing (43).
5. Inspect the extension housing for cracks and porosity.
6. Remove the extension housing gasket (42).
