Internal Components

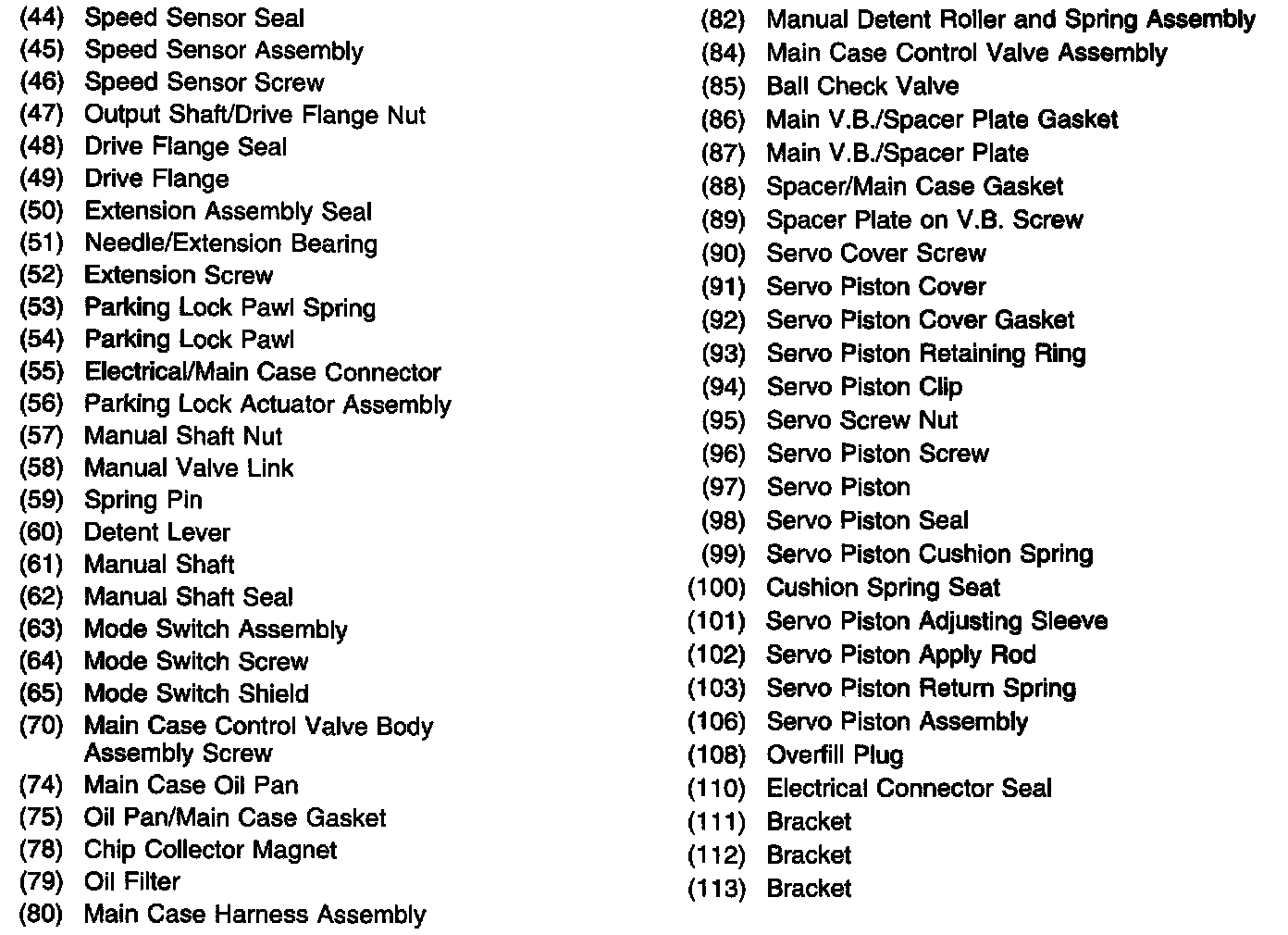

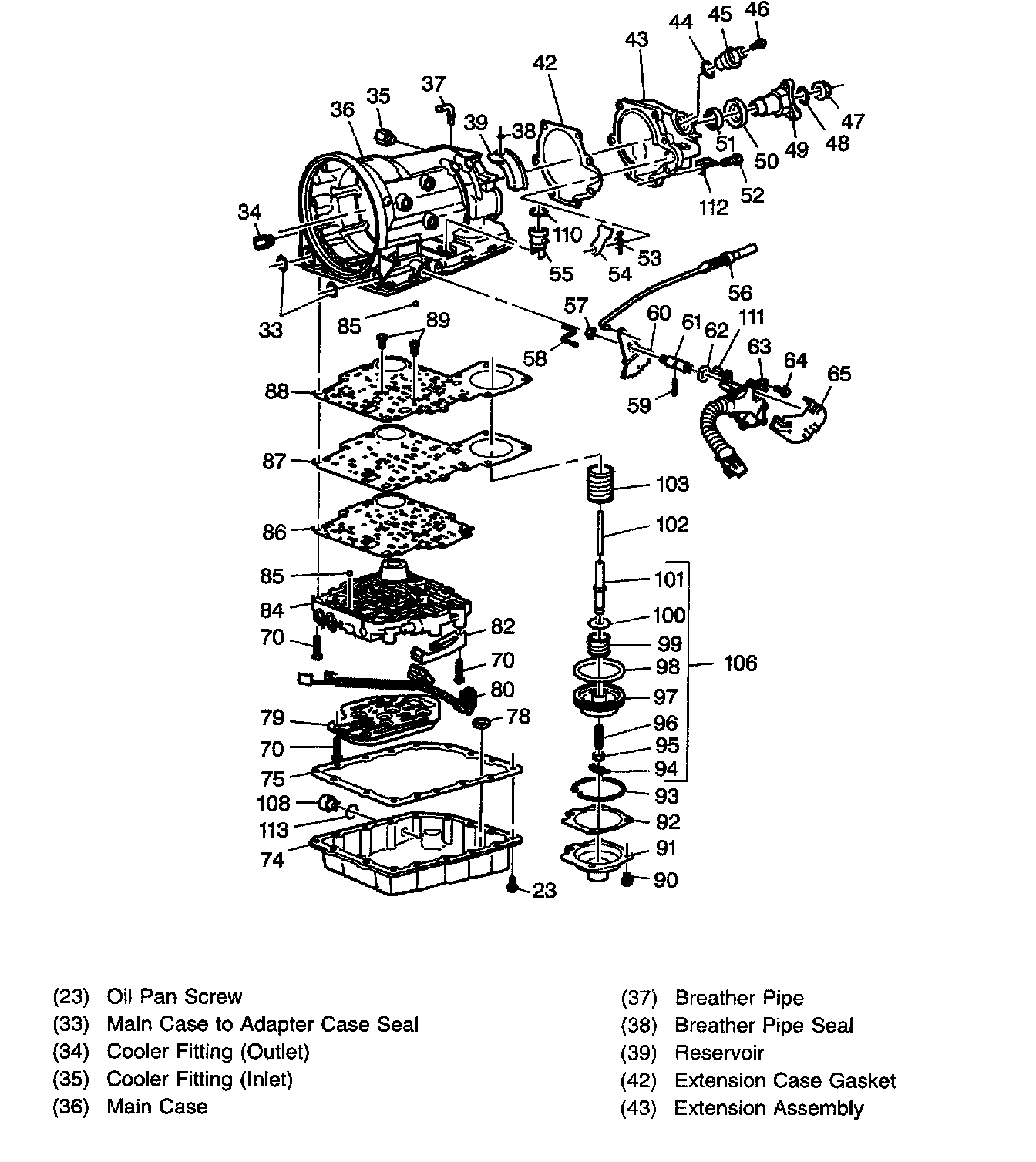

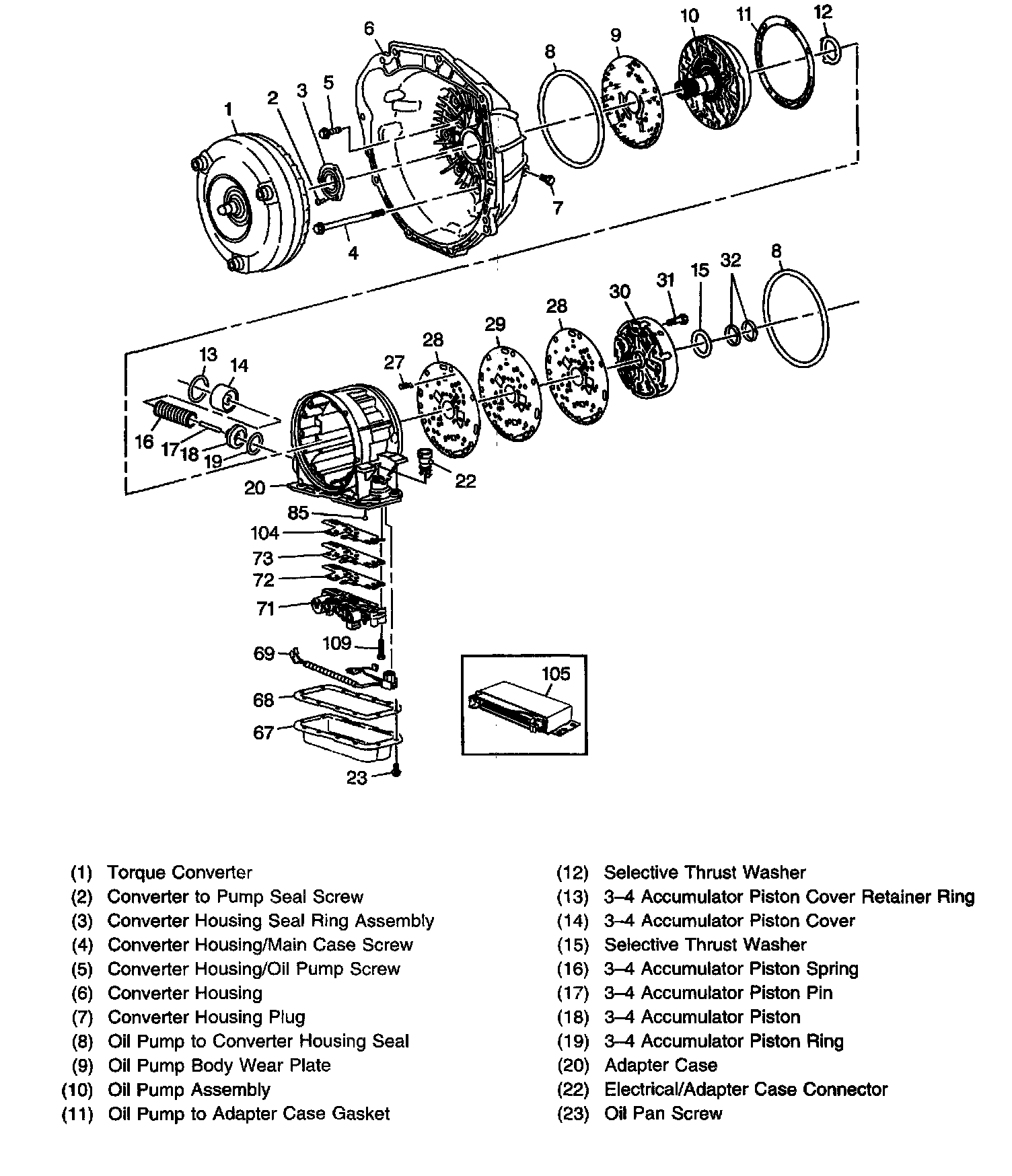

Case and Associated Parts (1 of 2)
Case and Associated Parts (2 of 2)

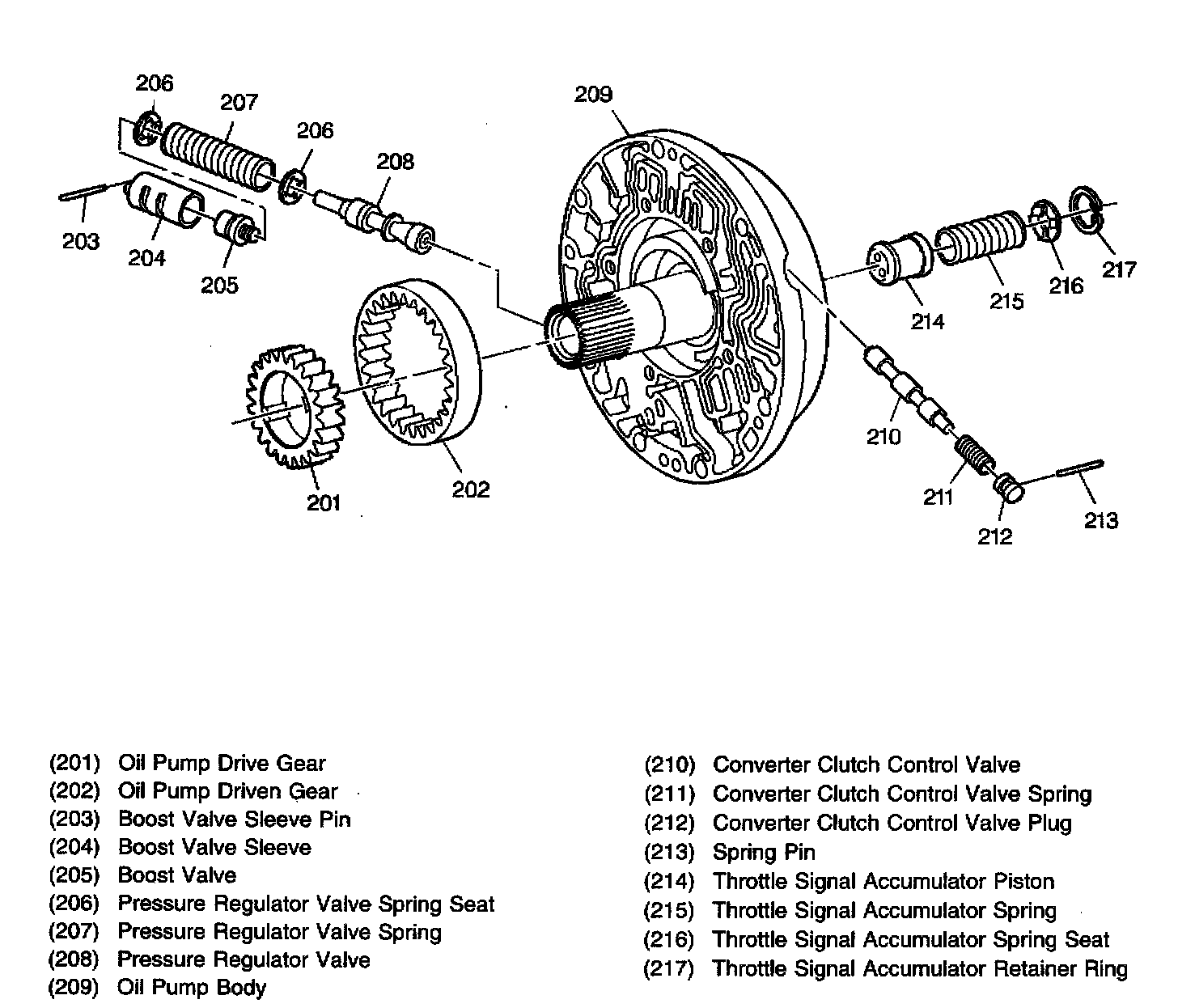

Oil Pump Assembly

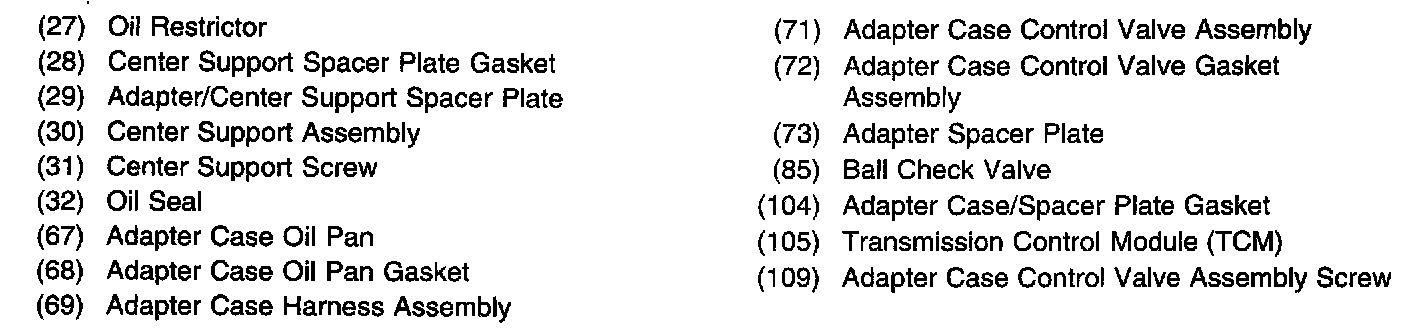

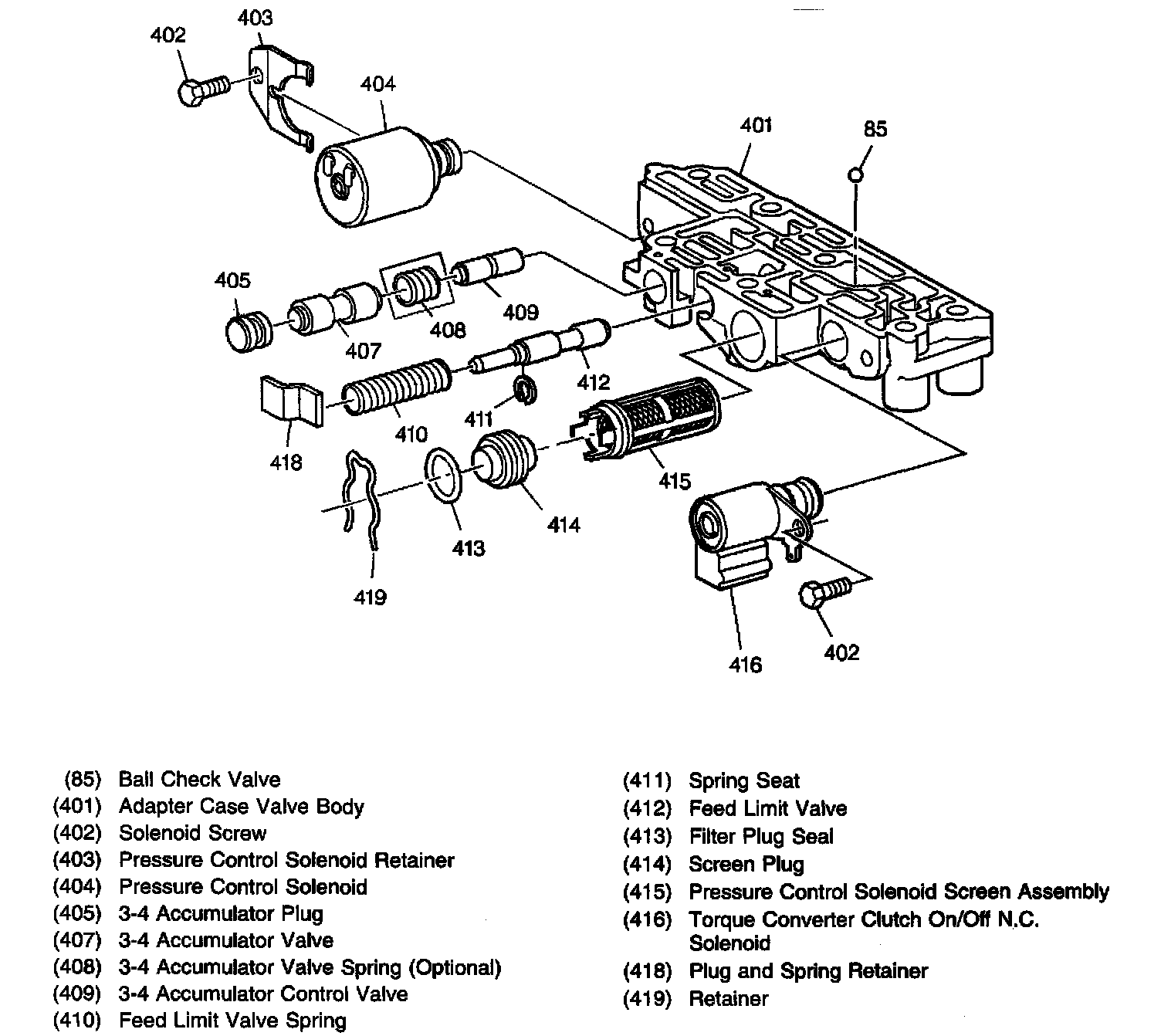

Adapter Valve Body Assembly

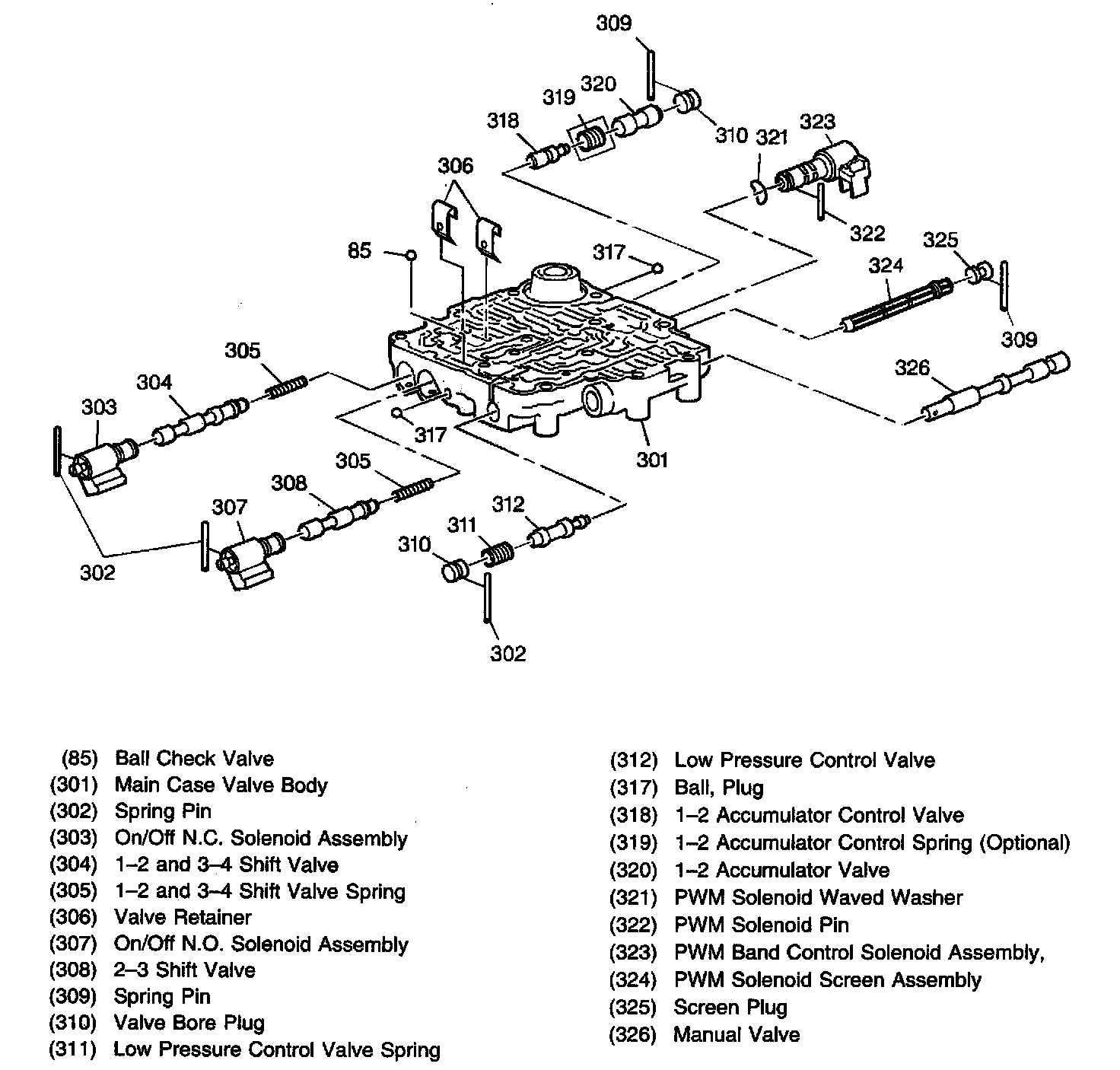

Main Case Valve Body Assembly

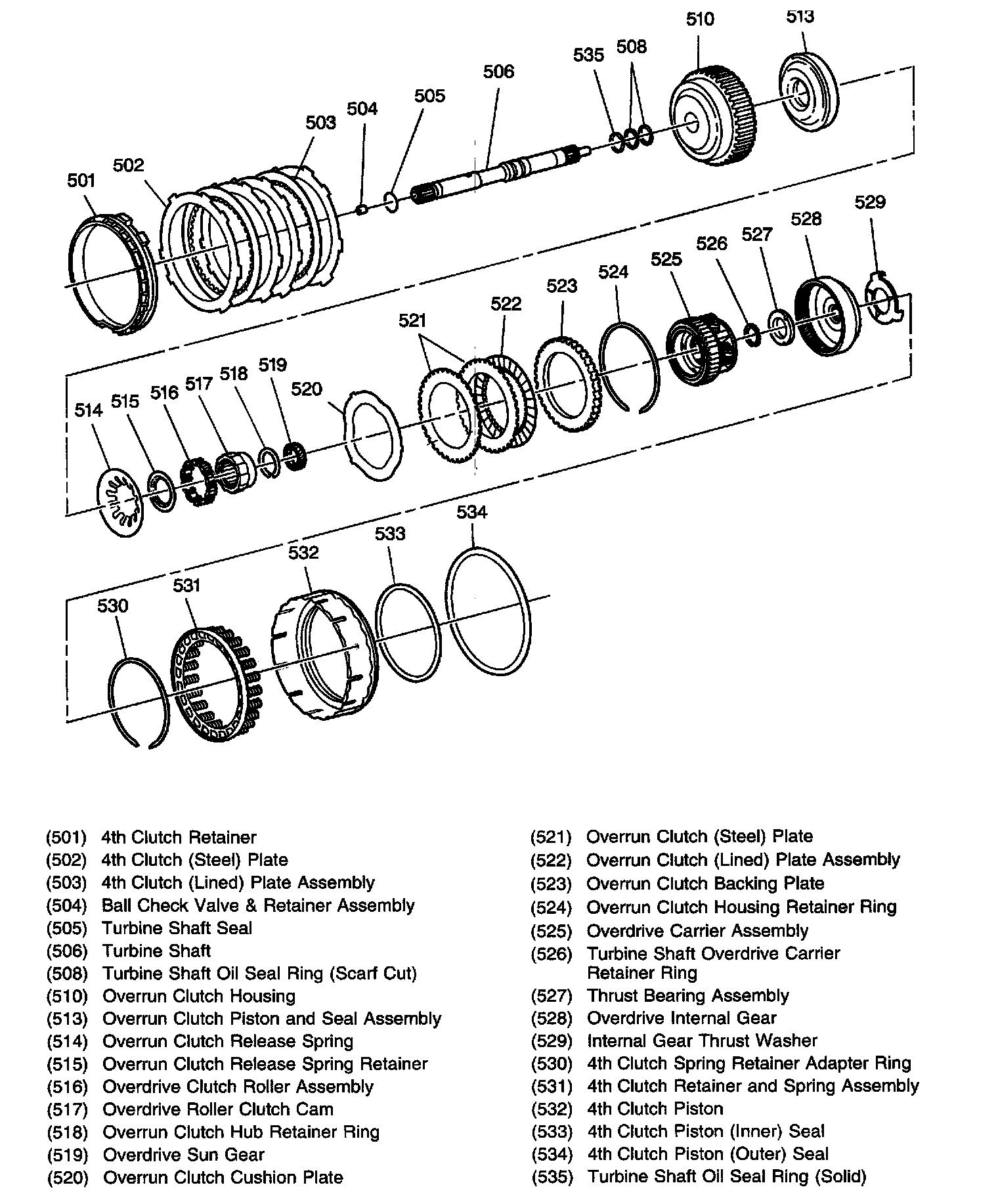

Overdrive Internal Components
Internal Components (1 of 2)

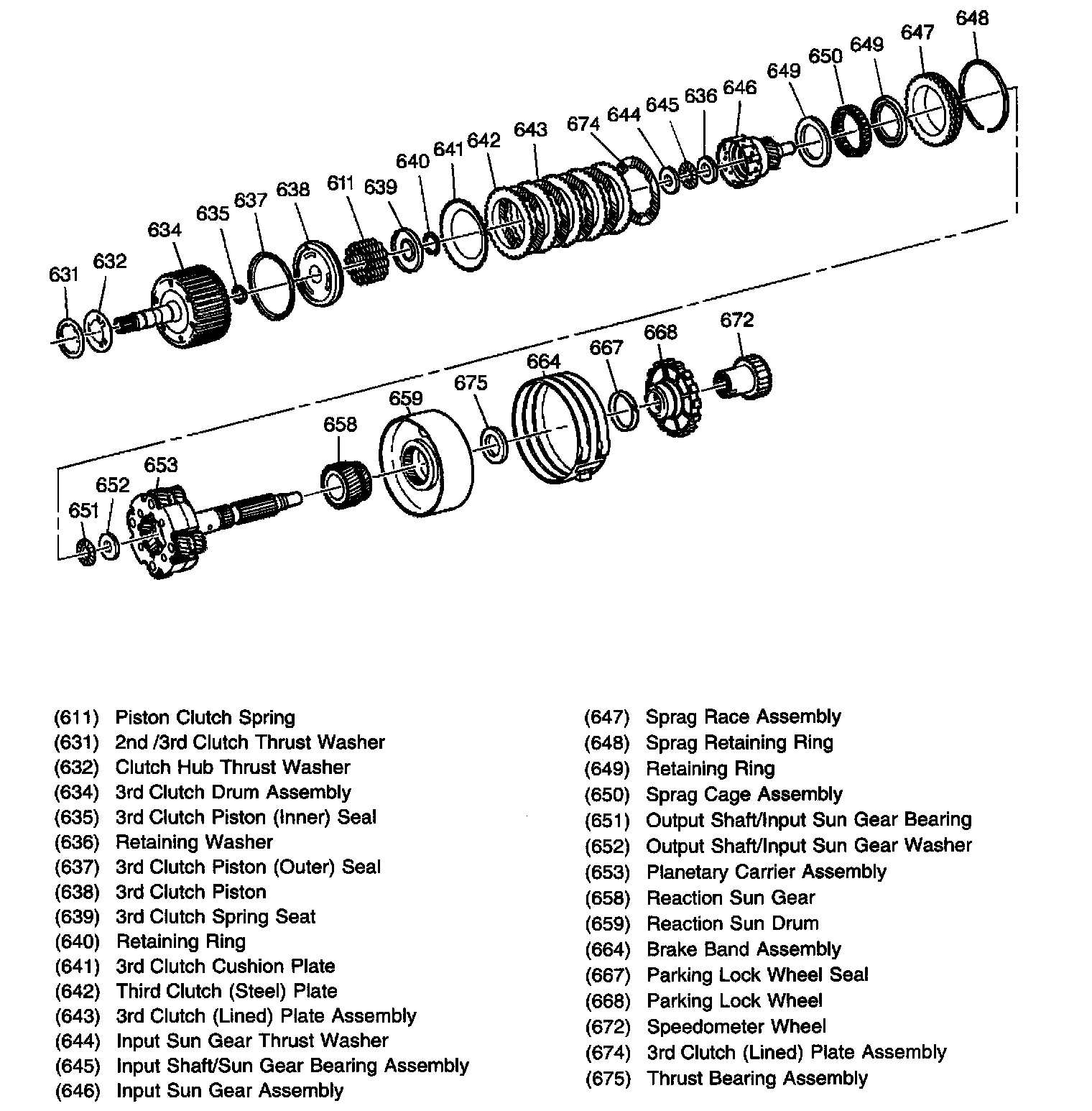

Internal Components (2 of 2)
Center Support Assembly

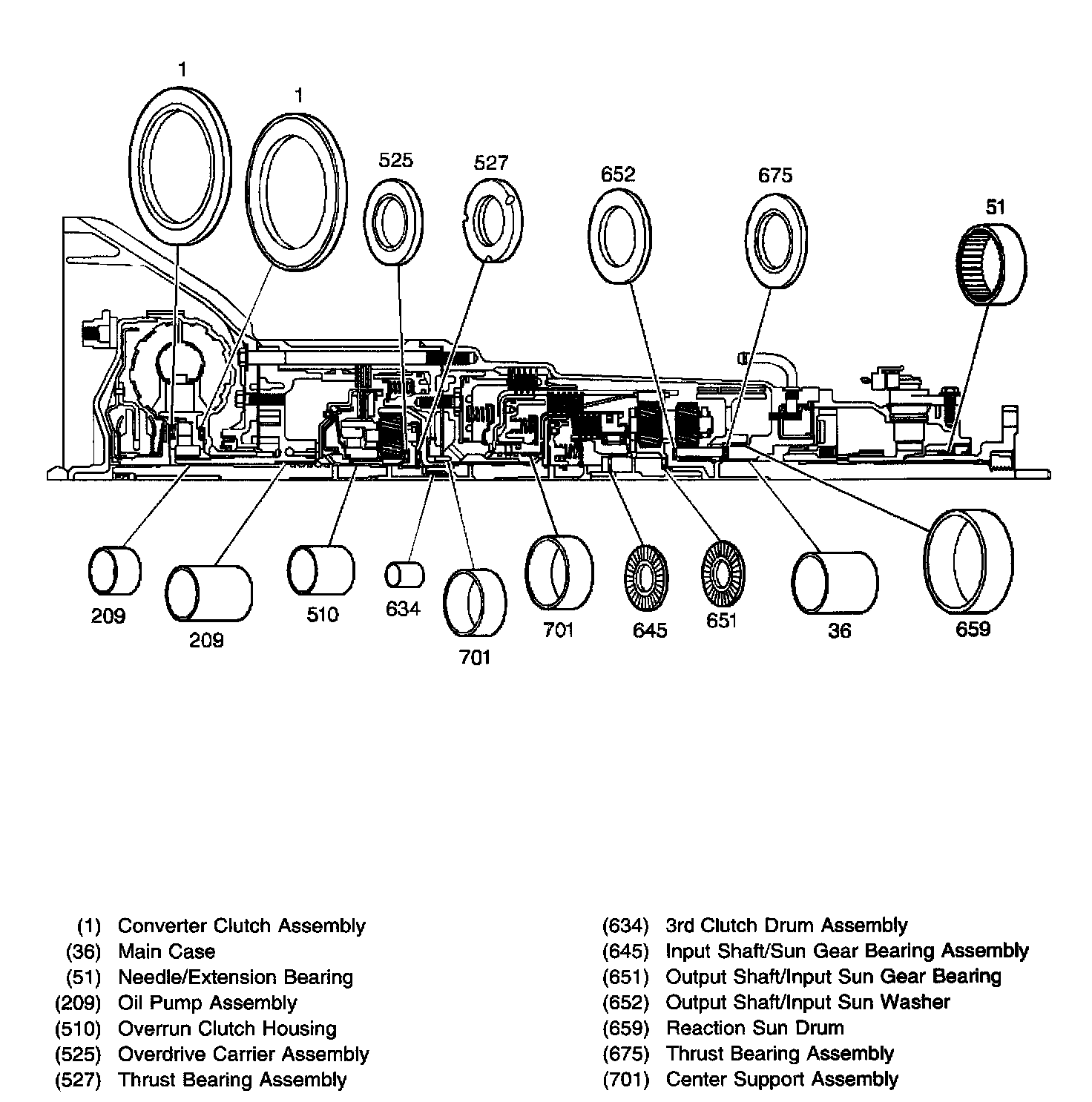

Bushing and Bearing Locations

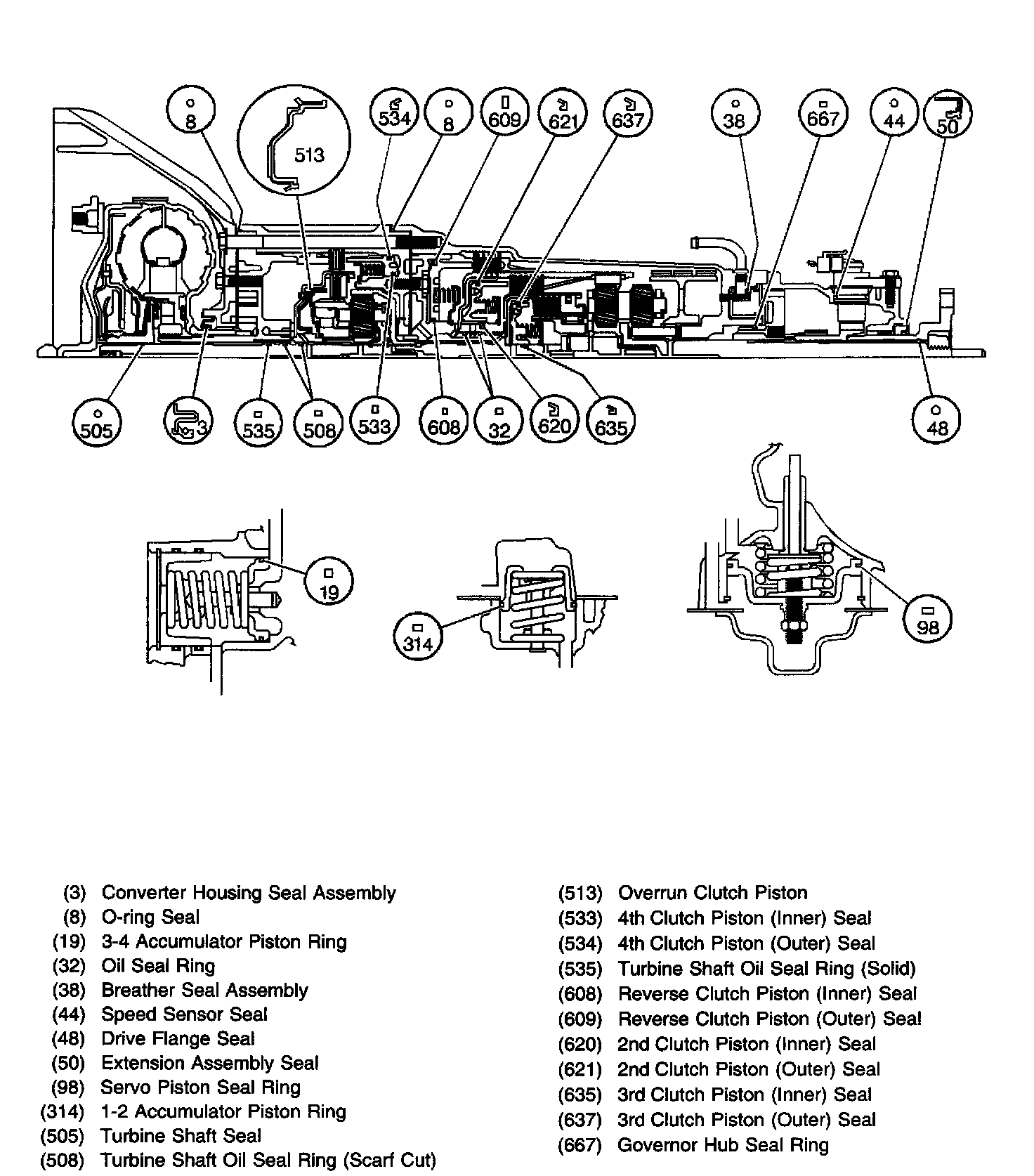

Seal Locations

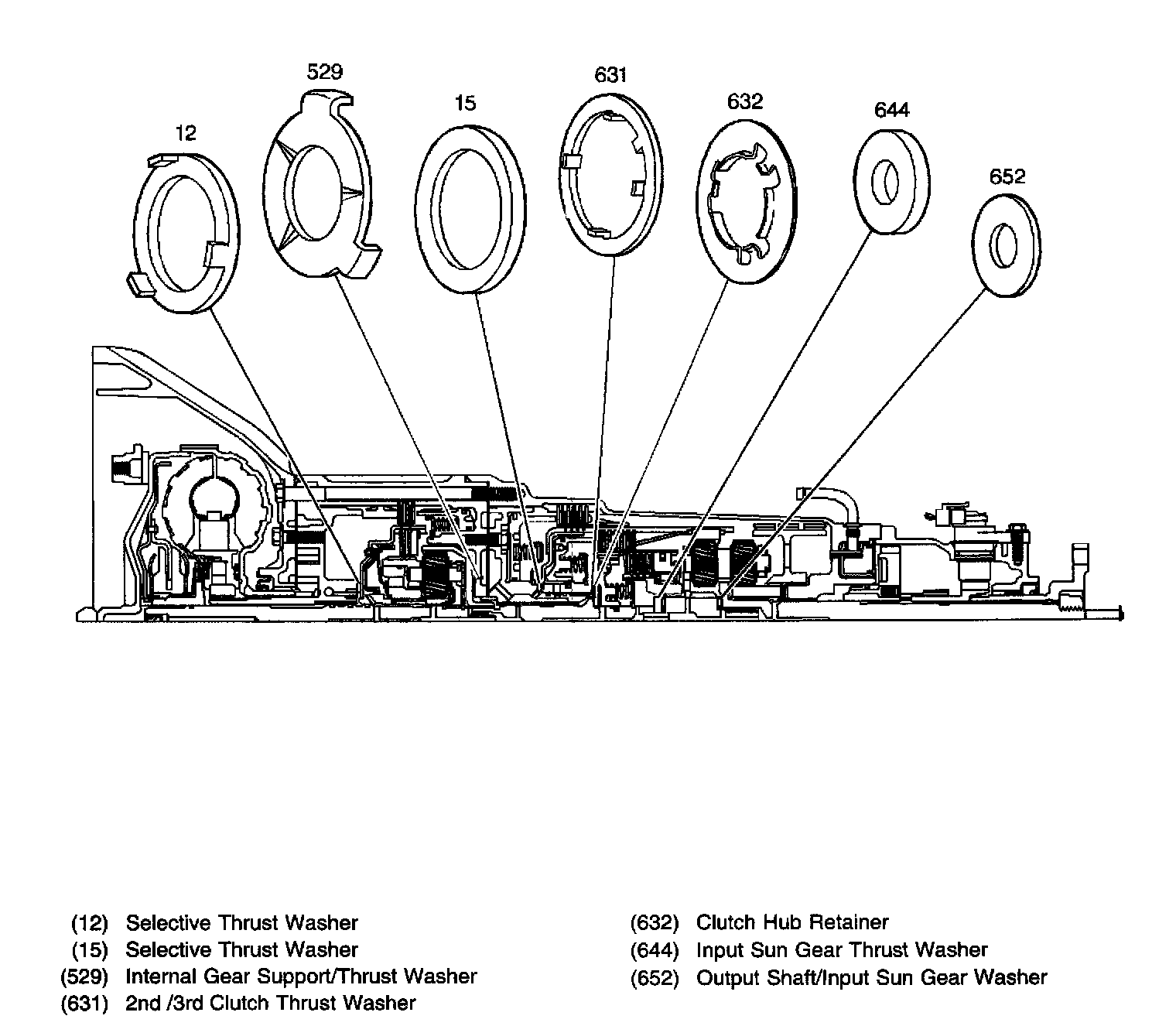

Thrust Washer Locations
