Steering Wheel

Removal Procedure

- Tools Required
- J1859-A Steering Wheel Puller
- J-36541-A Steering Wheel Puller Legs

1. Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement in Restraints.

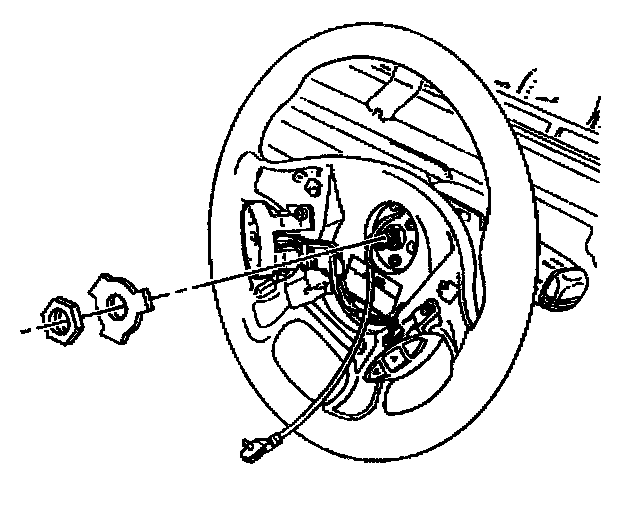

2. Reposition the locking tab on the steering wheel nut.
3. Remove the steering wheel nut.





4. Remove the steering wheel nut locking tab.
5. Matchmark steering wheel to the steering column.

Notice: When removing the steering wheel, use only the specified steering wheel puller. Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.

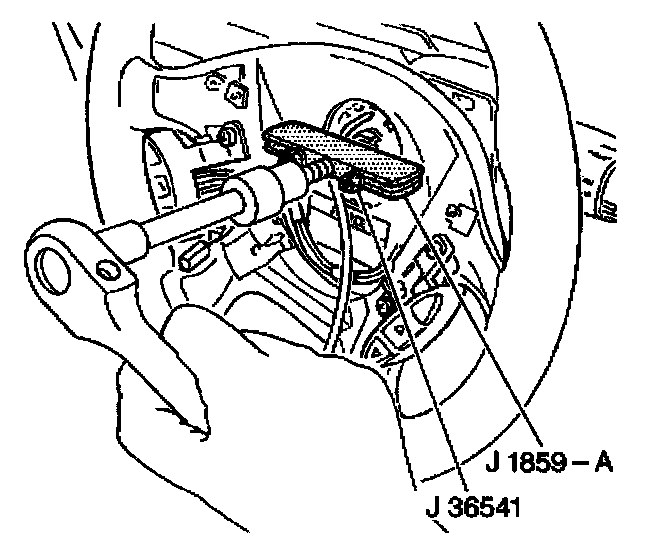

6. Pull off the steering wheel using J1859-A and J-36541-A.

Installation Procedure





1. Install the steering wheel to the column using the match marks.
2. Install the steering wheel nut locking tab.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the steering wheel nut.
- Tighten the nut to 28 Nm (21 ft. lbs.).
4. Secure the nut with the locking tab.
5. Install the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement in Restraints.
