Turn Signal Switch Housing - Assemble

Assembly Procedure

Notice: Refer to Fastener Notice in Service Precautions.

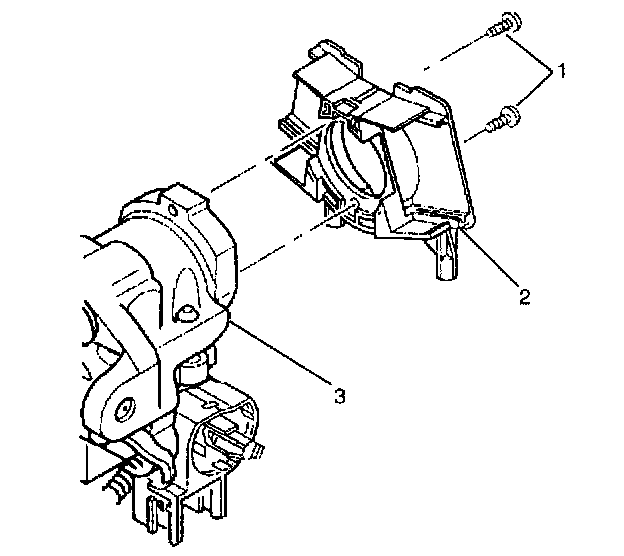

Install the signal switch housing (2) onto the steering column housing (3).
Tighten the signal switch housing support screws (1) to 3.5 Nm (31 ft. lbs.).
