Lock Housing - Assemble

Assembly Procedure
1. Place key in the RUN position.

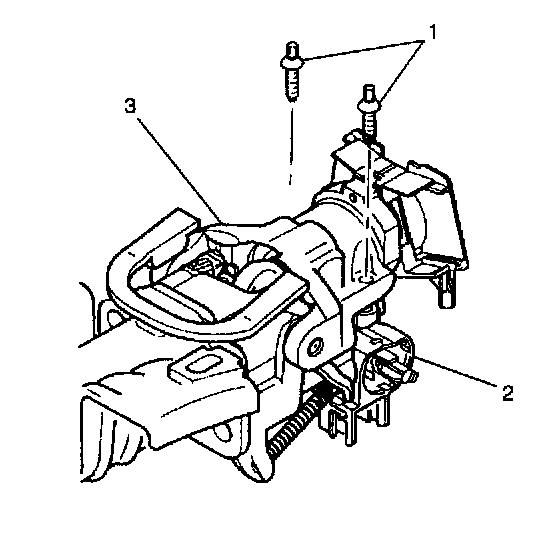

2. Install the lock housing (2) onto the steering column housing assembly (3).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the new shear bolts (1) through the lock housing (2). Tighten The new shear bolts (1) until the heads separate from the shear bolt bodies.
