Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C200 - C299 >> C207 (With Side Airbags)

C207 (With Side Airbags)

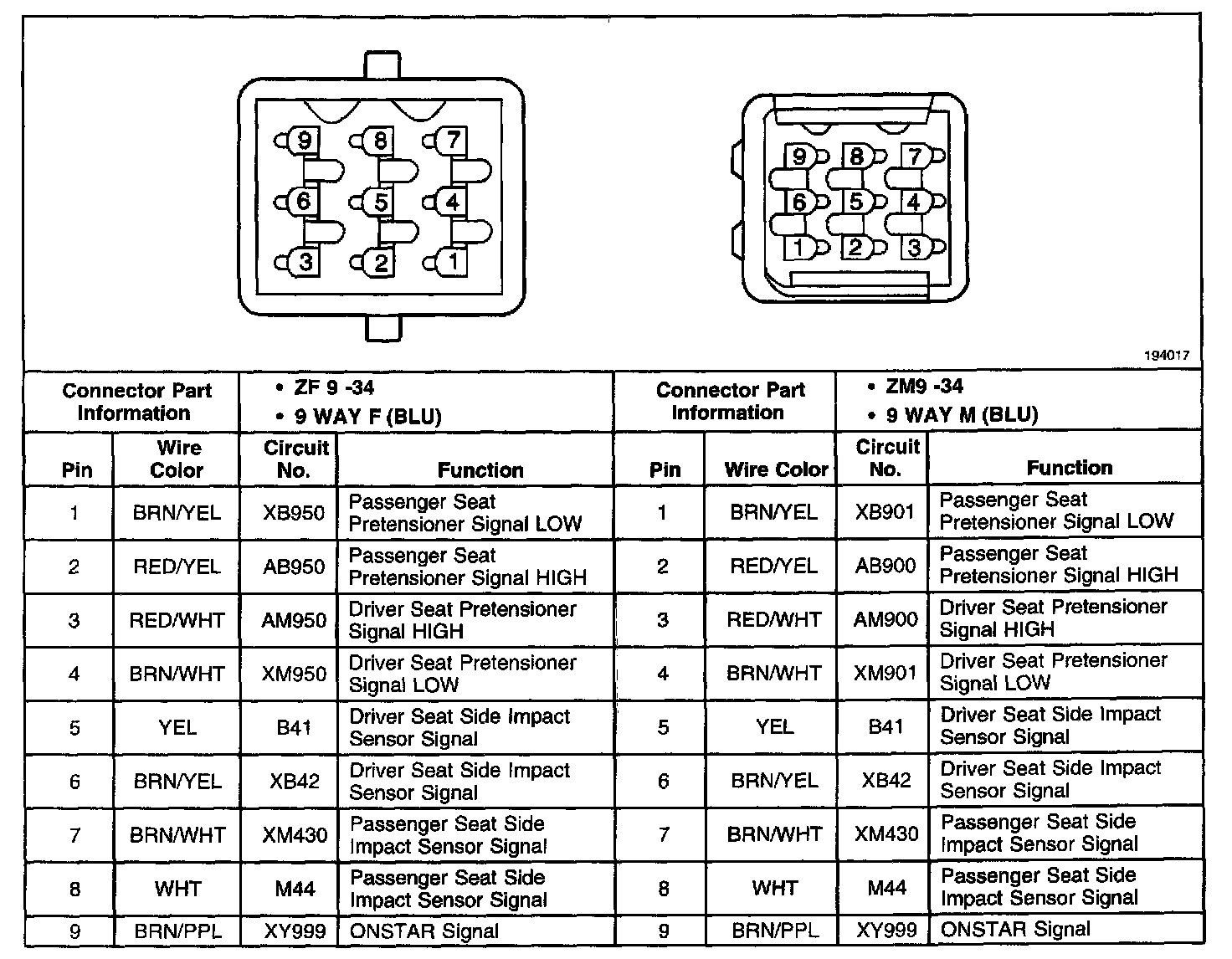

Inline Connector C207 (With Side Airbags):
