C200A
C200A

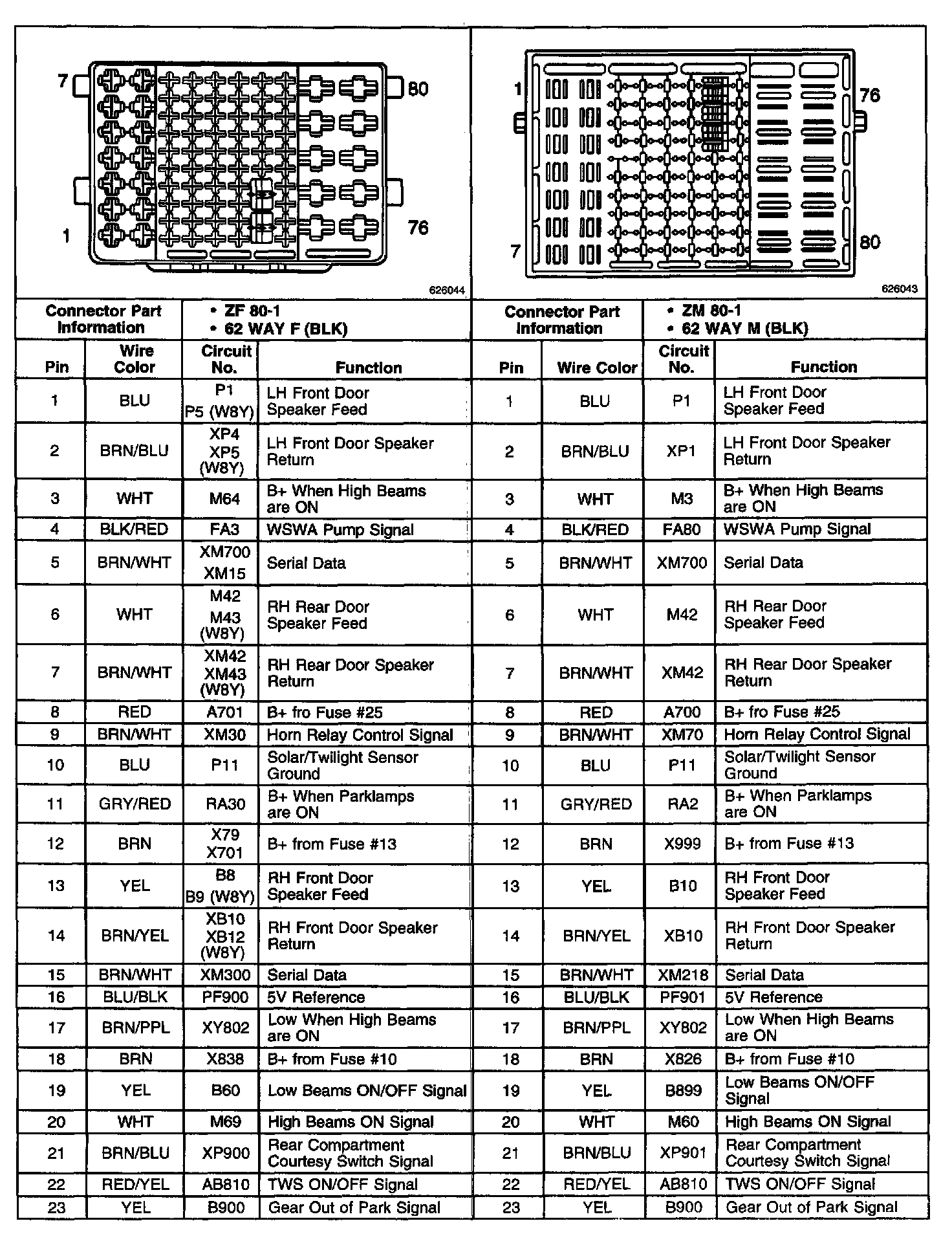

Inline Connector C200A (Part 1 Of 3):

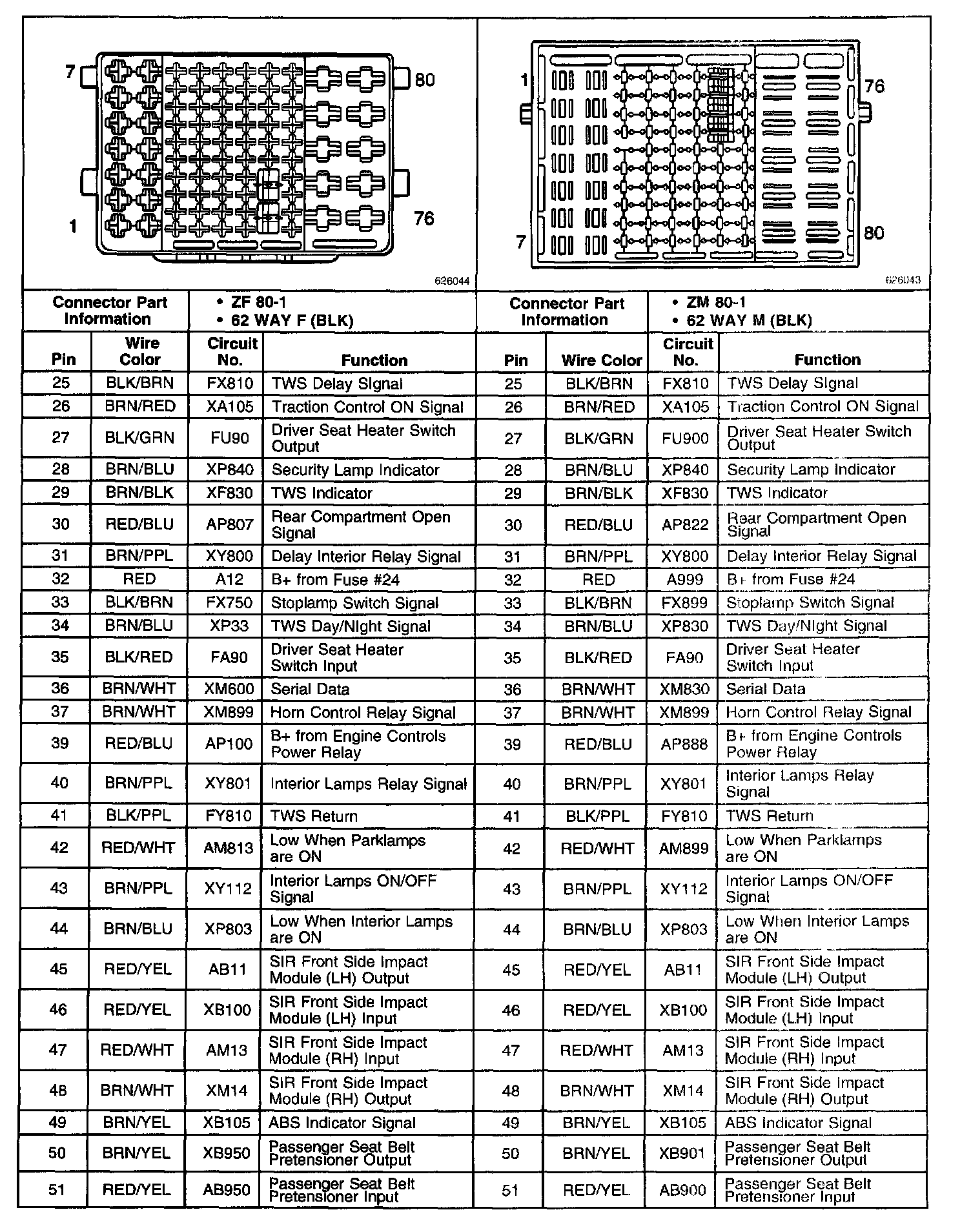

Inline Connector C200A (Part 2 Of 3):

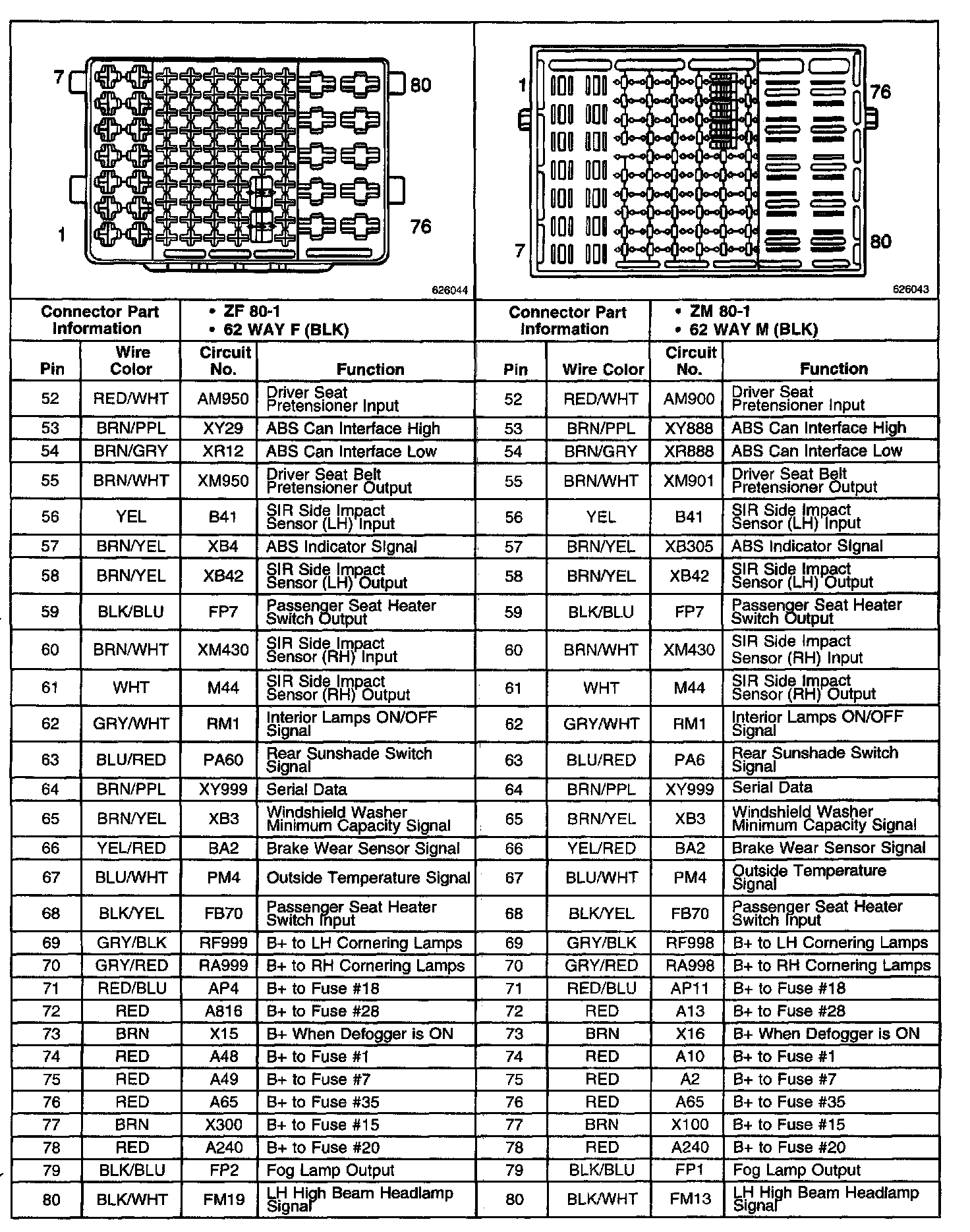

Inline Connector C200A (Part 3 Of 3):
