Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> A A Fuses By Number >> 1 - 20 >> 20

1 - 20: 20

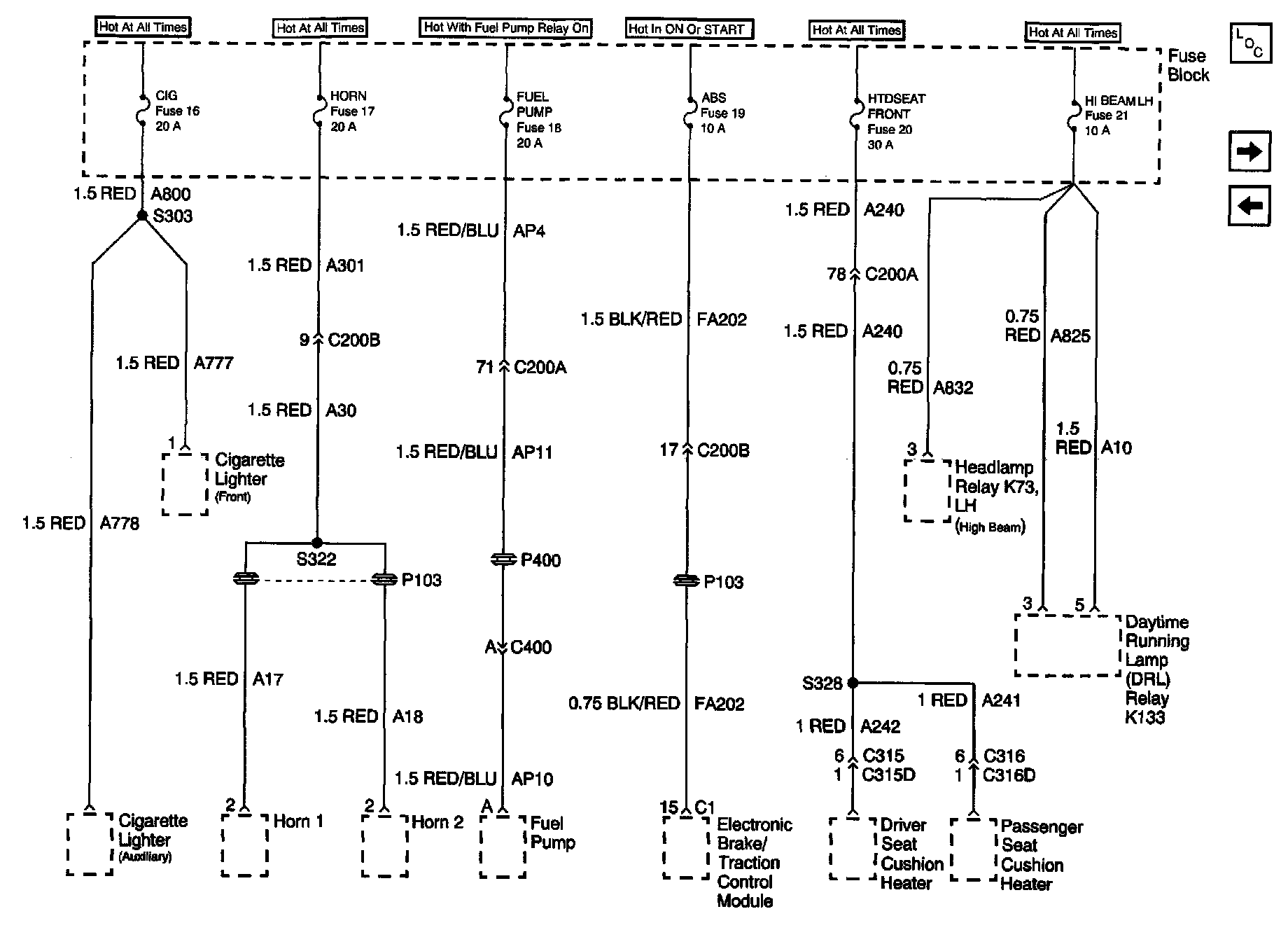

Power Distribution Schematics: Fuse Block, Horns, Fuel Pump, EBTCM, LH Headlamp And DLR Relay:
