Fuse 4 Power Outlet

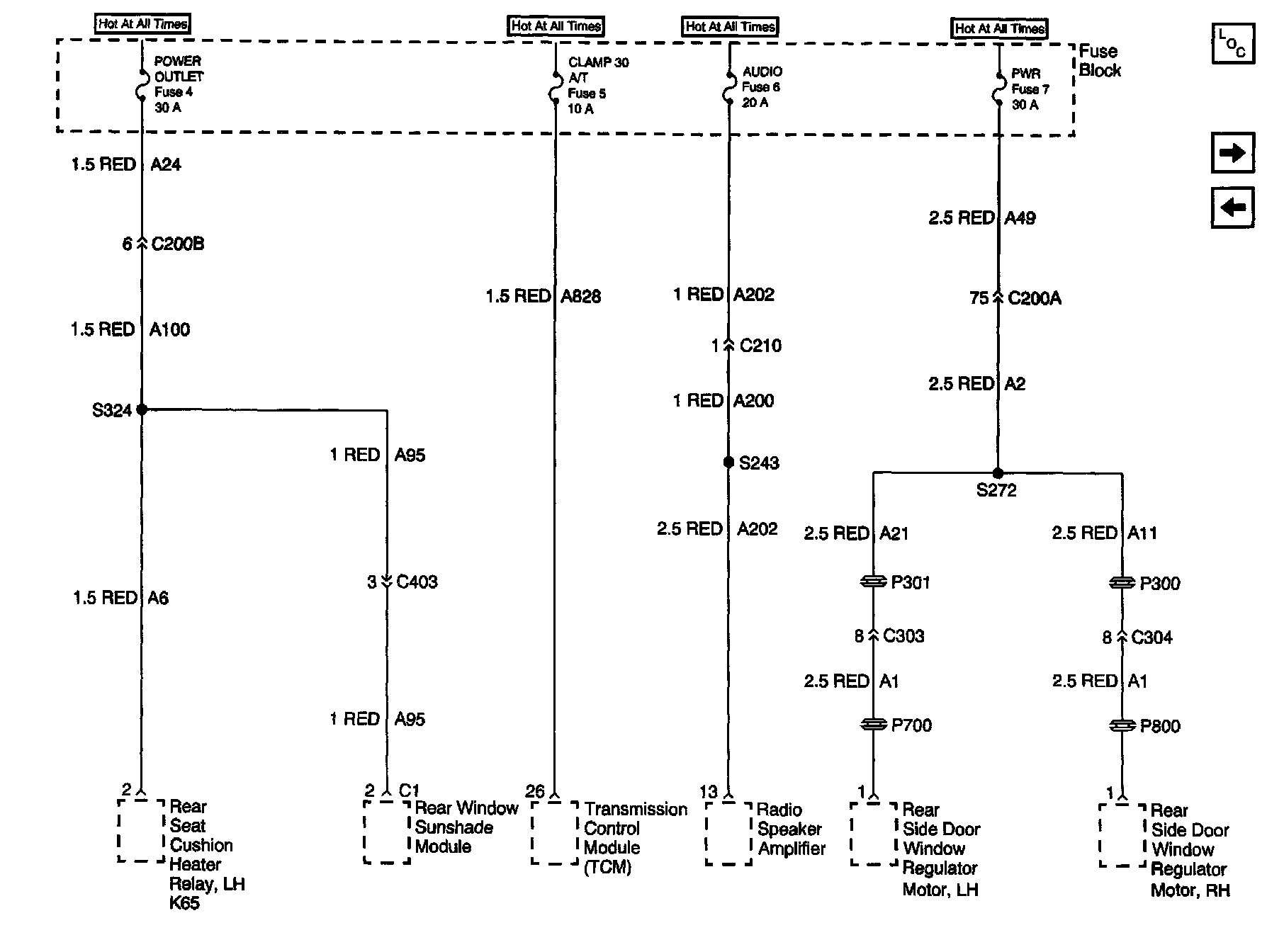

Power Distribution Schematics: Fuse Block, Heater Relays, TCM, Rear Window Regulator Motors And Rear Sunshade:
