Fuse Block, Rear Licence Lamps, and Headlamp Switch
Fuse Block, Rear Licence Lamps, and Headlamp Switch

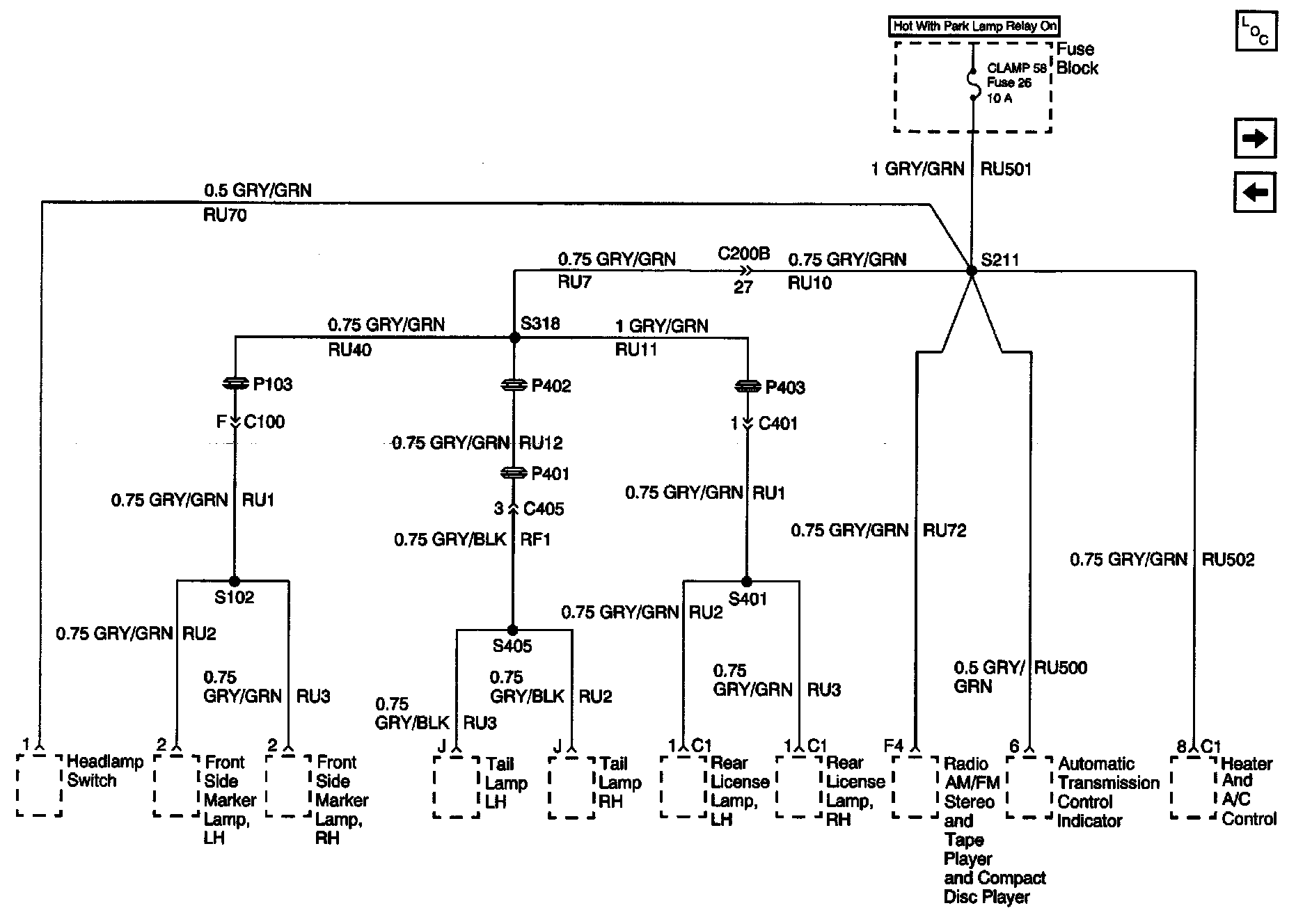

Power Distribution Schematics: Fuse Block, Rear Licence Lamps, And Headlamp Switch:
