ECM Housing

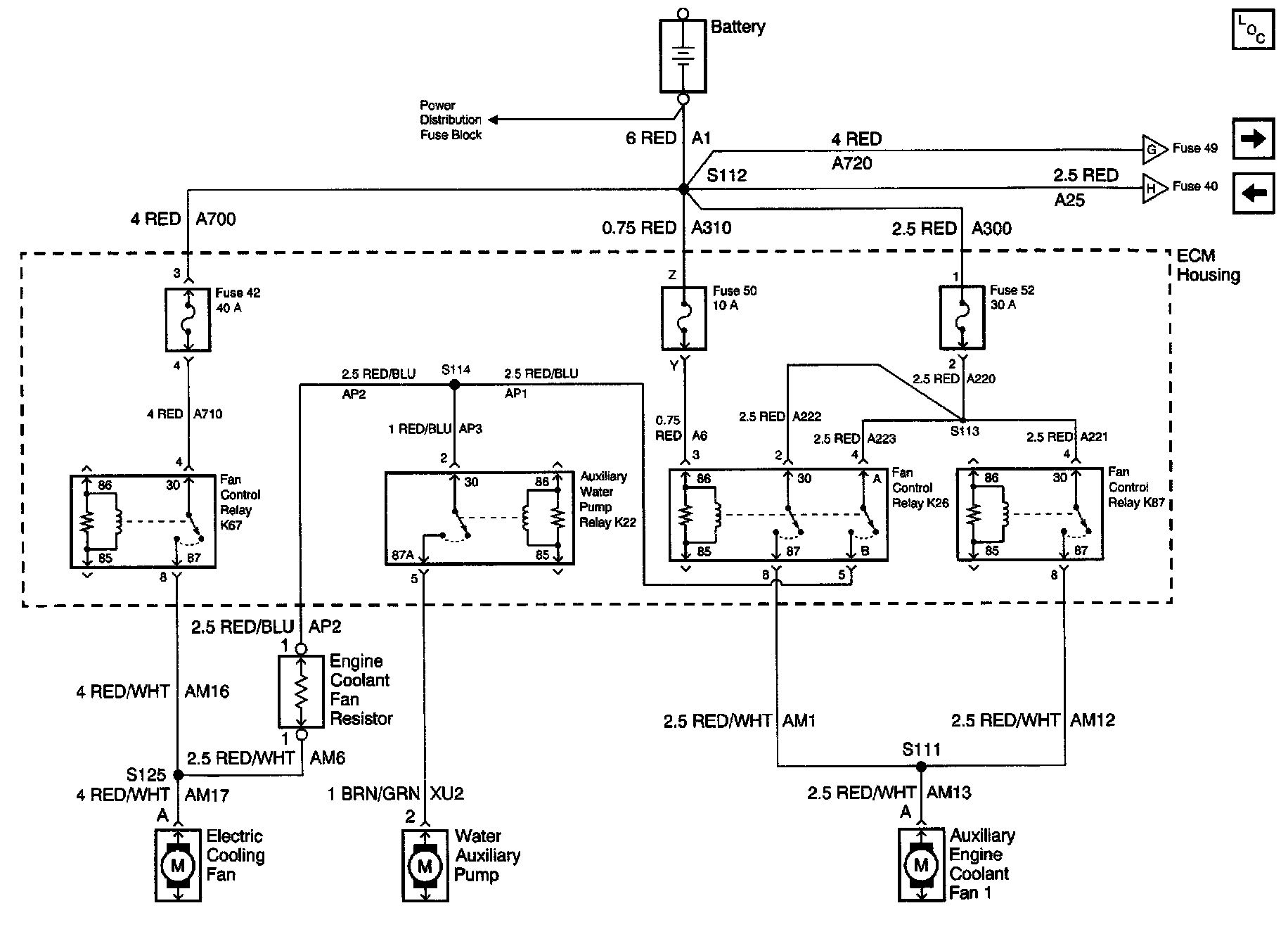

Power Distribution Schematics: ECM Housing, Electric Cooling Fan Auxiliary Engine Cooling Fan 1:
