Cigar Lighter/Auxiliary Outlets

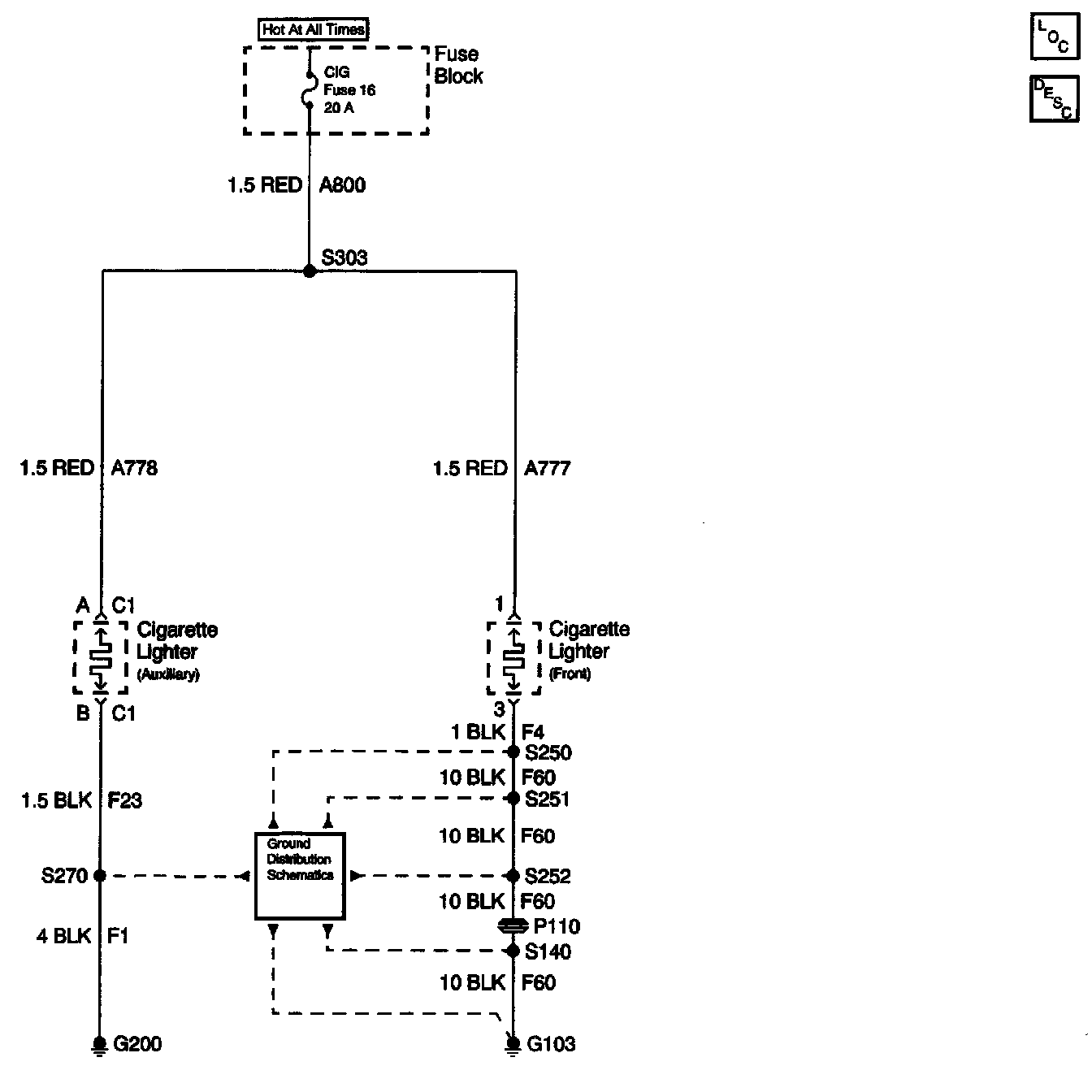

Cigar Lighter/Auxiliary Outlets Schematics: Cigarette Lighter And Power Outlet:
