Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Navigational Aids >> Ground Schematics >> B >> To

To

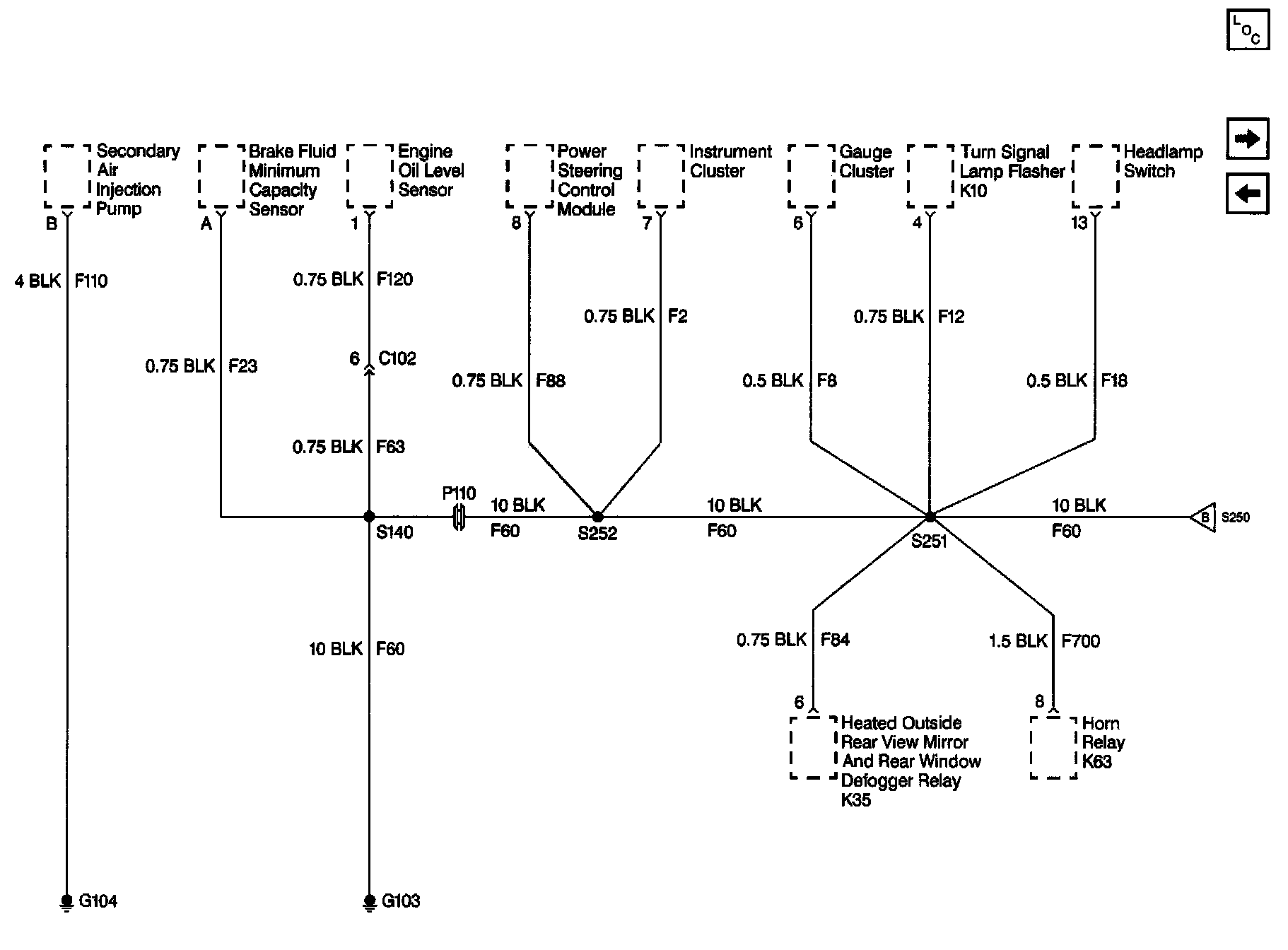

Ground Distribution Schematics: Headlamp Switch, Gauge Cluster, Horn Relay And Instrument Cluster:
