Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

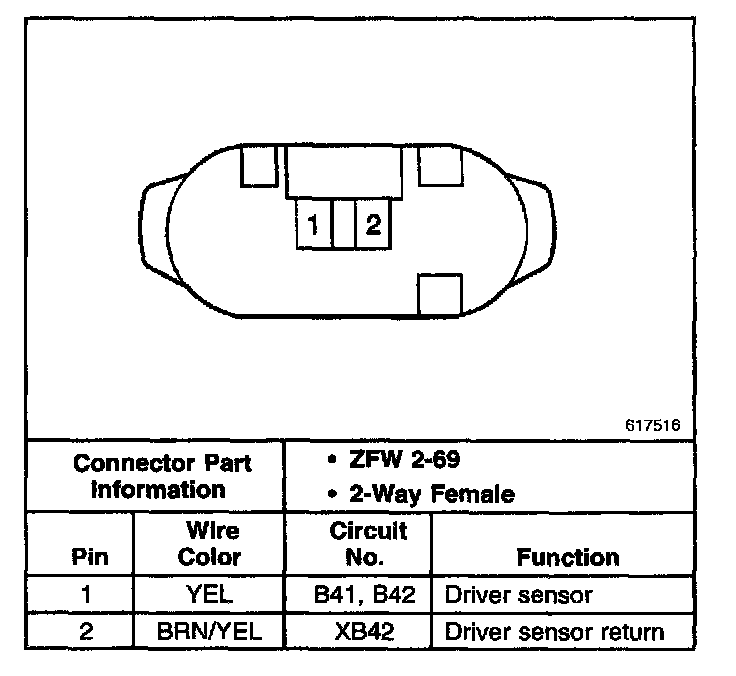

Inflatable Restraint Side Impact Sensor (SIS), LH:

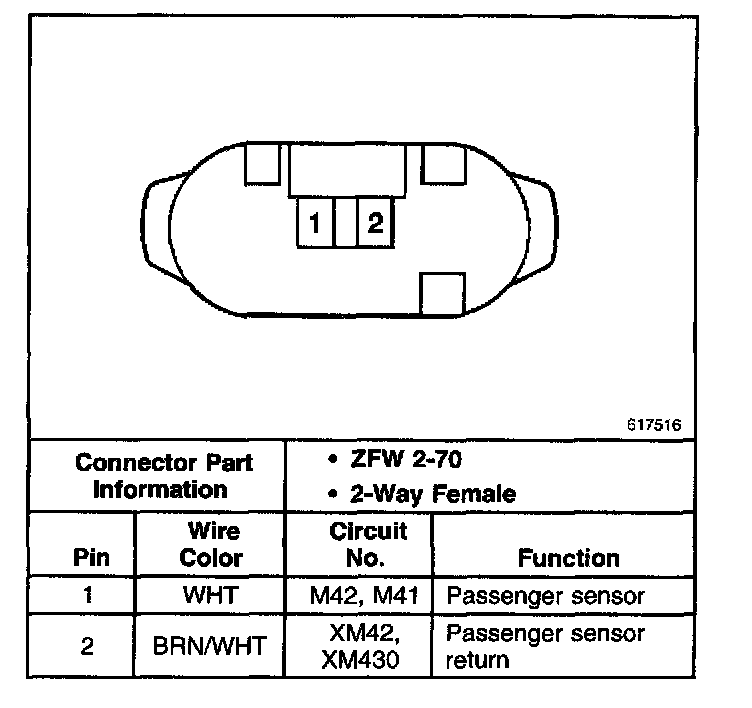

Inflatable Restraint Side Impact Sensor (SIS), RH:
