Home
>>
Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cruise Control
>>
Brake Switch (Cruise Control)
>>
Diagrams
>>
Electrical Diagrams
>>
Stop Lamp Switch, Cruise Control and Cruise Control Release SW
Stop Lamp Switch, Cruise Control and Cruise Control Release SW

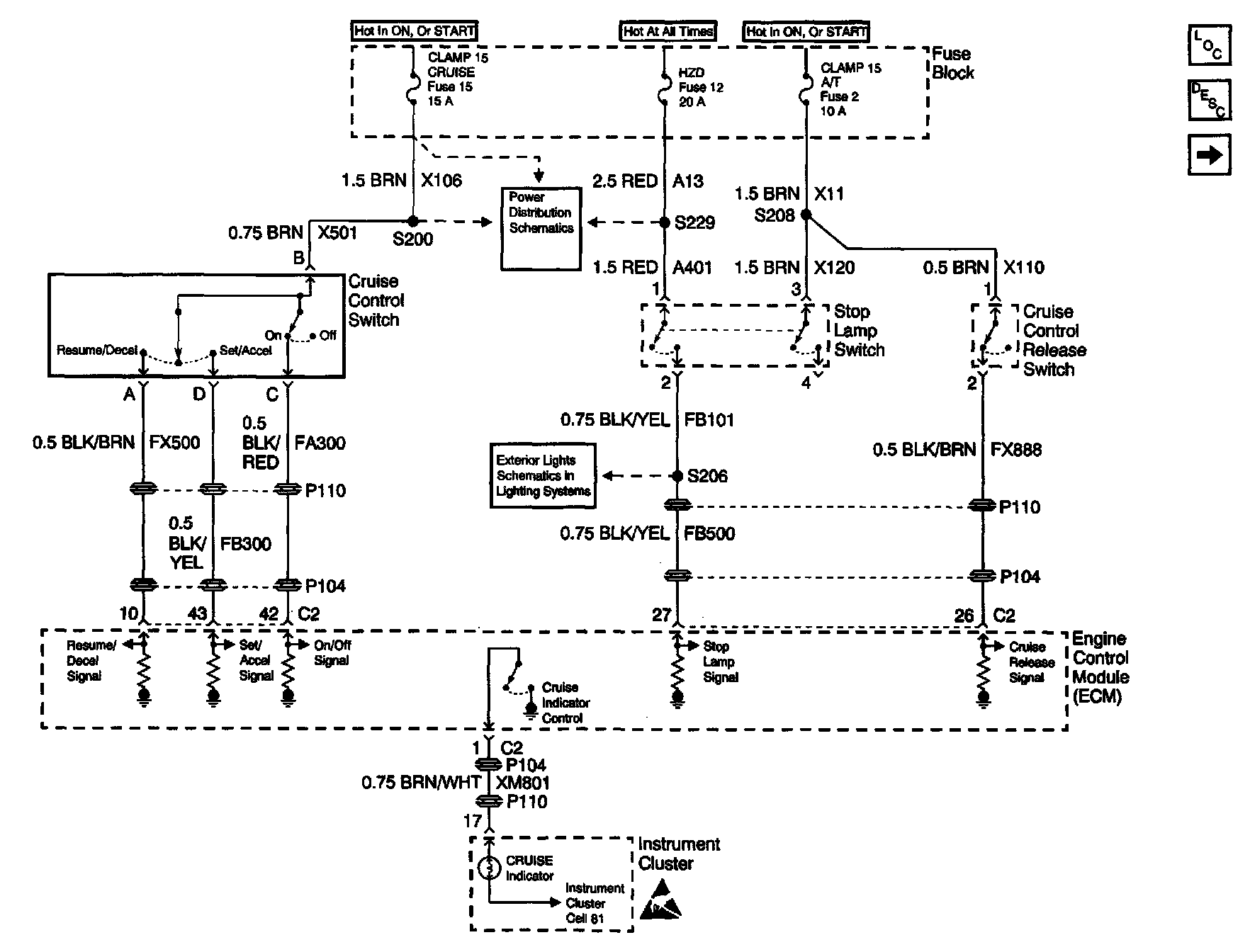

Cruise Control Schematics: Stop Lamp Switch, Cruise Control And Cruise Control Release Switch:
