Seat Belt Buckle Pretensioner Replacement - LH

REMOVAL PROCEDURE
1. Disable the SIR system.
2. Remove the driver seat.

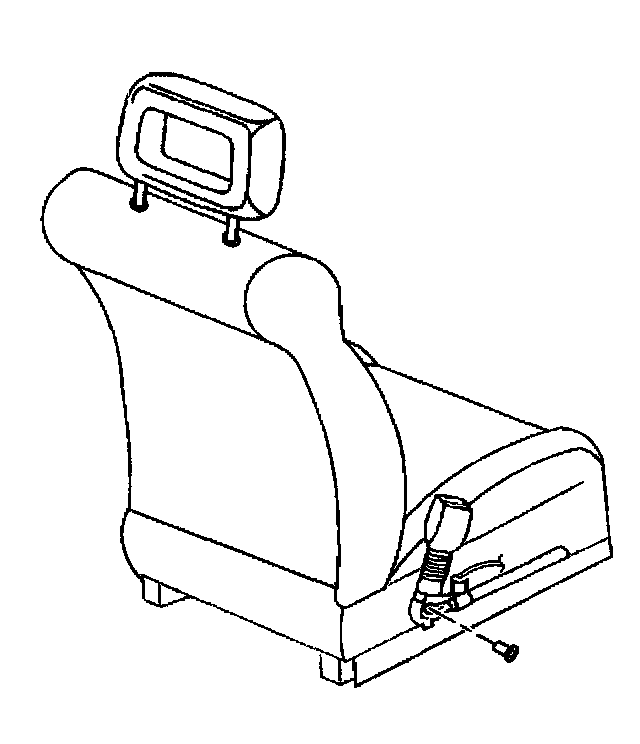

3. Remove the nut from the driver seat belt pretensioner.
4. Route the driver seat belt pretensioner wiring harness through the driver seat bottom frame.
5. Remove the driver seat belt pretensioner from the driver seat bottom frame.

INSTALLATION PROCEDURE
1. Install the driver seat belt pretensioner to the driver seat bottom frame.
2. Route the driver seat belt pretensioner wiring harness through the driver seat bottom frame.
3. Install the nut to the driver seat belt pretensioner.

Tighten
Tighten the driver seat belt pretensioner nut to 35 N.m (26 lb ft).

4. Install the driver seat.
5. Enable the SIR system.
