Knee Diverter: Service and Repair

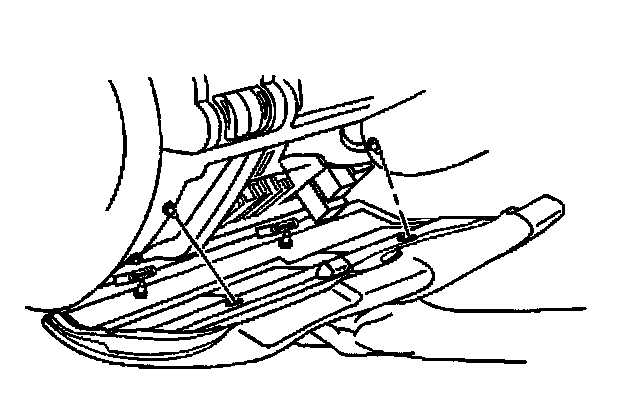

REMOVAL PROCEDURE
1. Remove threaded retainers counterclockwise.

IMPORTANT: The retainer does not separate from bolster.

2. Slide bolster down and remove from mounting pins.

INSTALLATION PROCEDURE
1. Position the bolster onto mounting pins and slide up into position and hold.
2. Install the threaded retainers clockwise until seated.

Tighten
Tighten the retainers until fully seated.
