Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> High Beam Relay >> Diagrams >> Connector Views >> LH Headlamp Relay (High Beam) K73

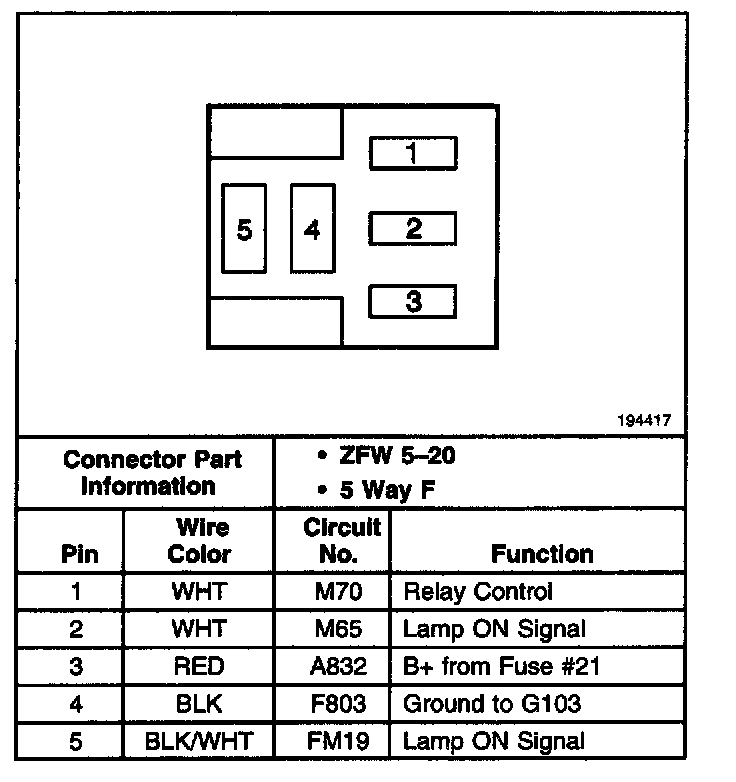

LH Headlamp Relay (High Beam) K73

LH Headlamp Relay (High Beam) K73:
