Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 4L30-E Automatic Transmission >> TCM Ground, VSS Assembly and Case

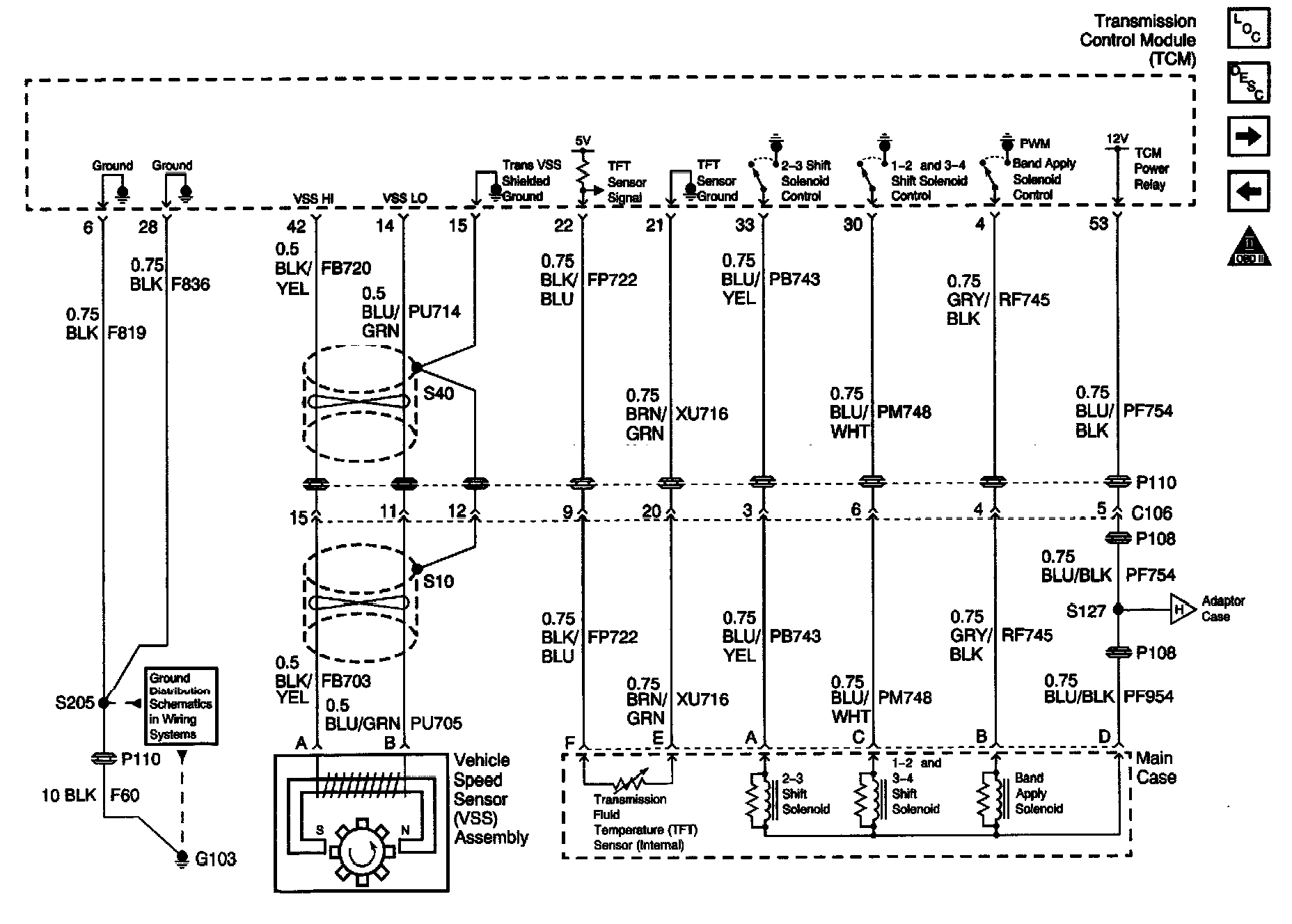

TCM Ground, VSS Assembly and Case
