Ignition Coil(s) Replacement (LH Side)
REMOVAL PROCEDURETOOLS REQUIRED
J 43301 Coil Pack Remover

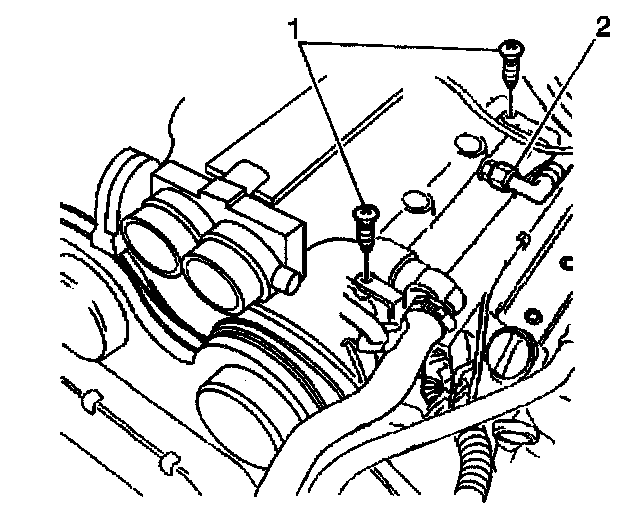

1. Remove the wiring channel bolts (1) from the intake plenum.
2. Position the wiring channel out of the way.
3. Disconnect the coil pack electrical connector.
4. Remove the coil pack retainer bolts.
IMPORTANT: Do not overtighten the J 43301.

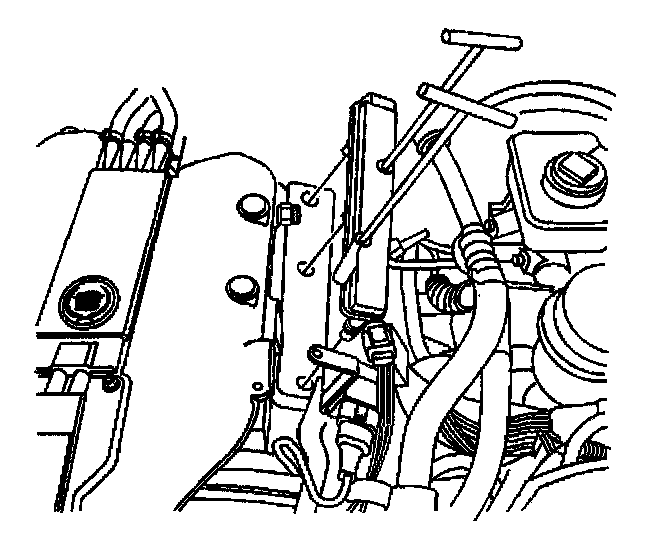

5. Thread the J 43301 into the coil pack.
6. With even pressure, lift and remove the coil pack.
7. Remove the J 43301.
INSTALLATION PROCEDURE
1. Inspect the coil pack seals and spark plug boots for damage or wear.
Replace as necessary
2. Align the spark plug boots with the spark plugs.
3. Carefully press and seat the coil pack in place.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the coil pack retainer bolts.
Tighten
Tighten the coil pack retainer bolts to 8 N.m (71 lb in).
5. Connect the coil pack electrical connector.
6. Reposition the wiring channel.
7. Install the wiring channel bolts (1).
Tighten
Tighten the wiring channel bolts to 8 N.m (71 lb in).
