Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> EVAP Control System Diagnosis (ORVR Fuel System)

EVAP Control System Diagnosis (ORVR Fuel System)

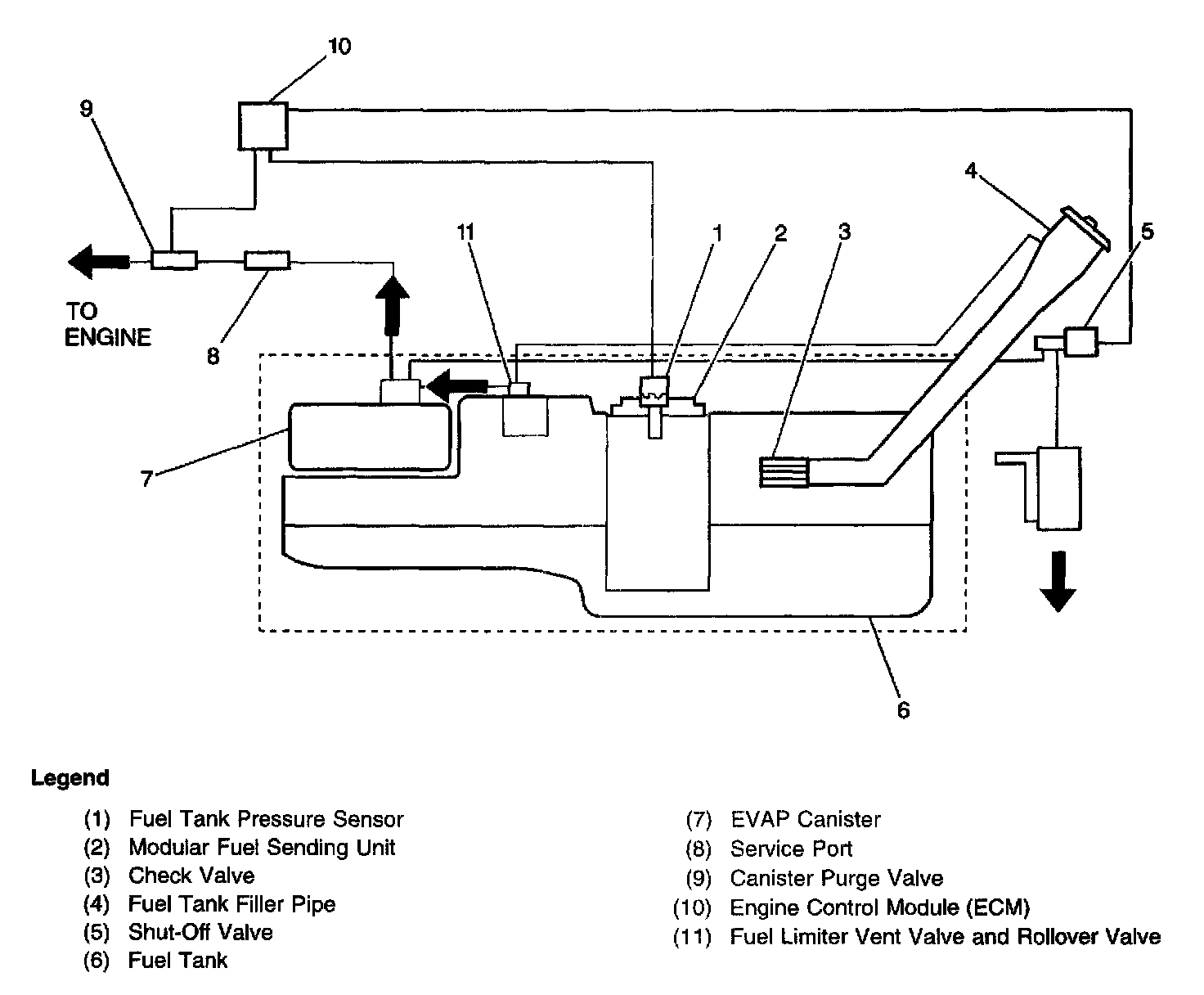

Schematic:
