Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Relays >> Engine Controls

Engine Controls

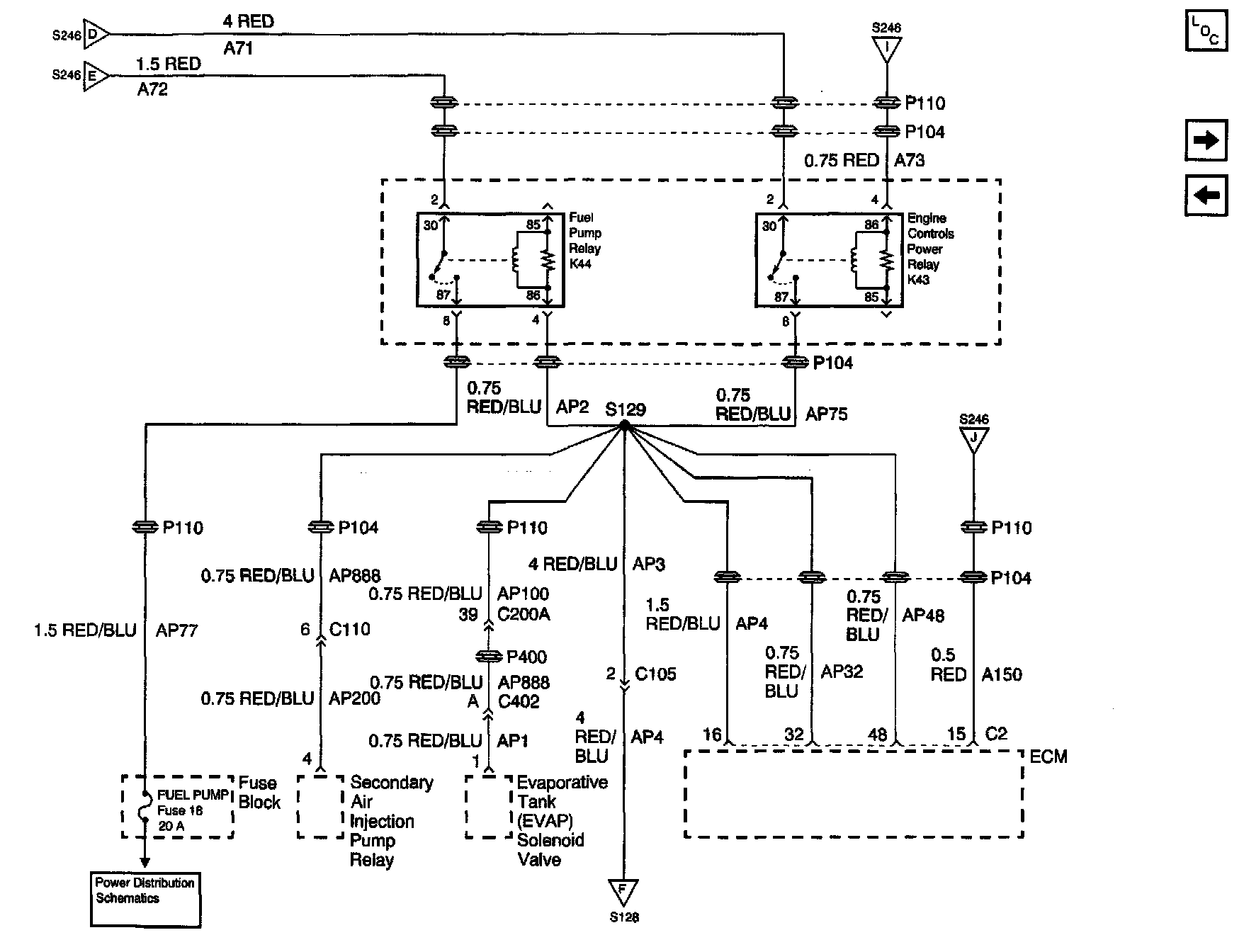

Power Distribution Schematics: ECM Housing, ECM, Engine Controls Power Relay And Fuel Pump Relay:
