AC Compressor
AC Compressor

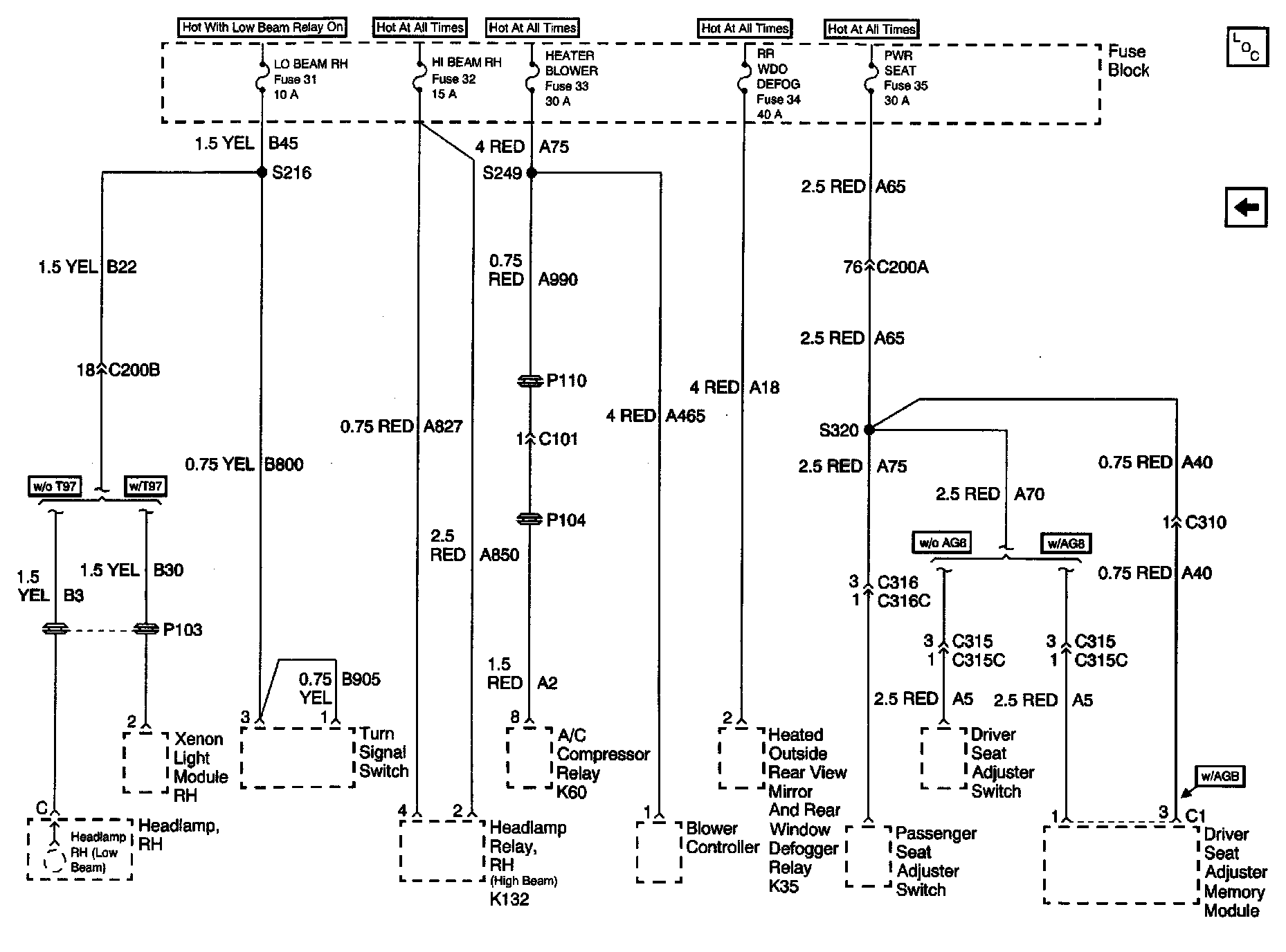

Power Distribution Schematics: Fuse Block, Turn Signal Switch, Blower Control, And AC Compressor Relay:
