Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Navigational Aids >> Ground Schematics >> B >> From

From

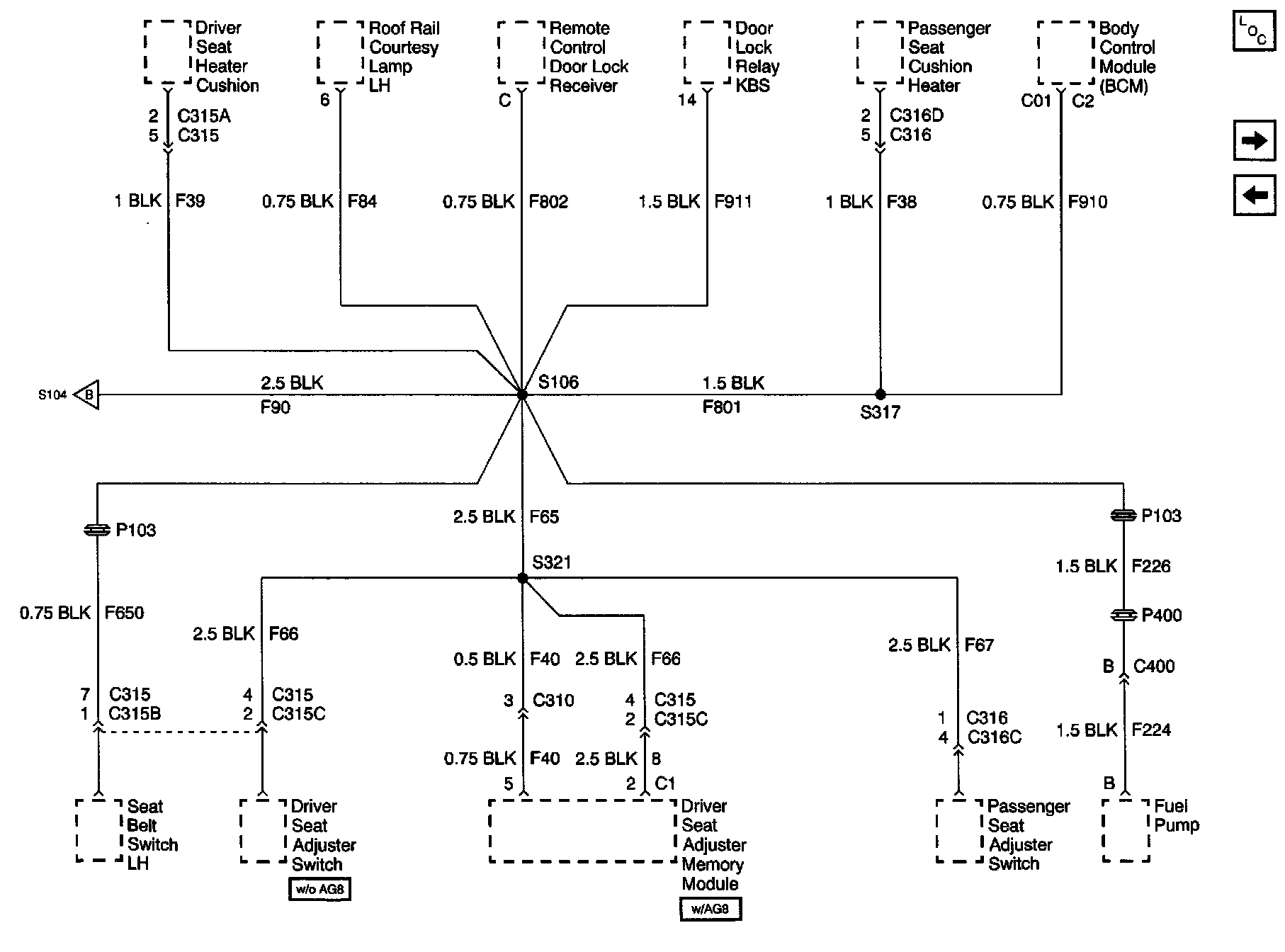

Ground Distribution Schematics: BCM, Front Seat Adjusters, Front Seat Heaters, Door Lock Relay:
