Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Connector Views >> LH Park/Turn Signal Lamp

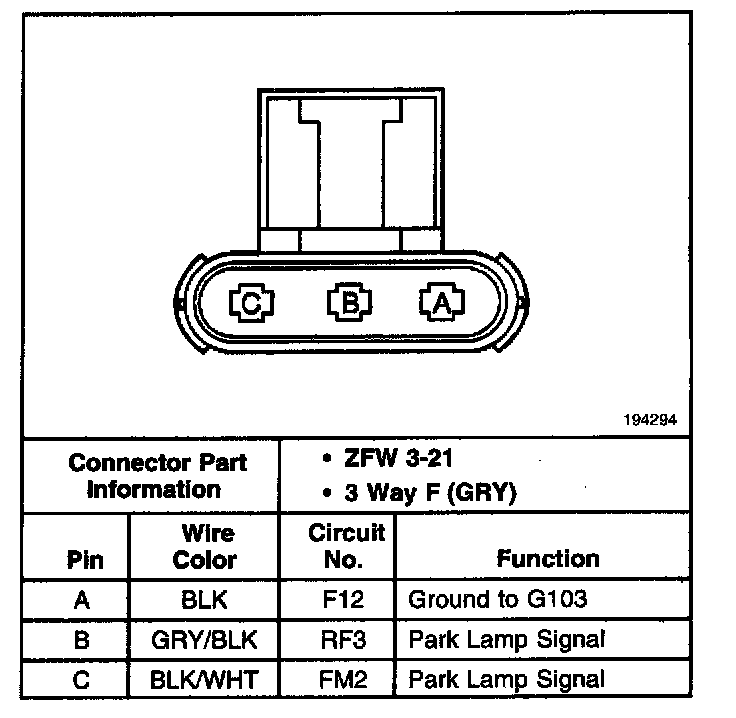

LH Park/Turn Signal Lamp

LH Park/Turn Signal Lamp:
