Tail Lamp: Service and Repair
Tail Lamp Bulb ReplacementREMOVAL PROCEDURE
1. Open the rear compartment lid.

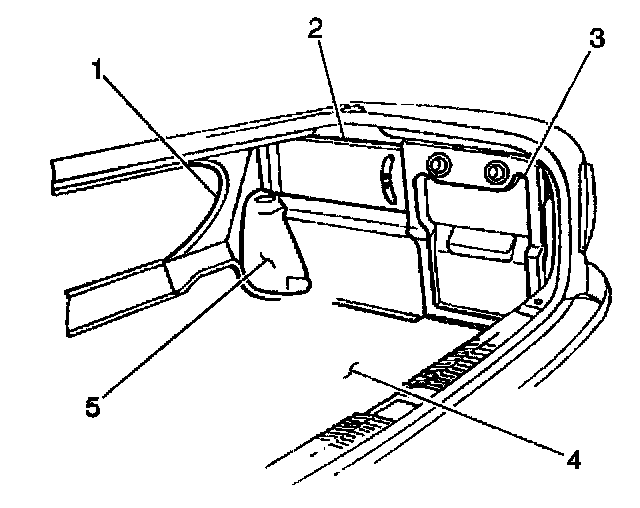

2. Open the storage/cd player door (3) if replacing the passenger side tail lamp bulb.
3. Remove the spare tire it replacing the driver's side tail lamp bulb.

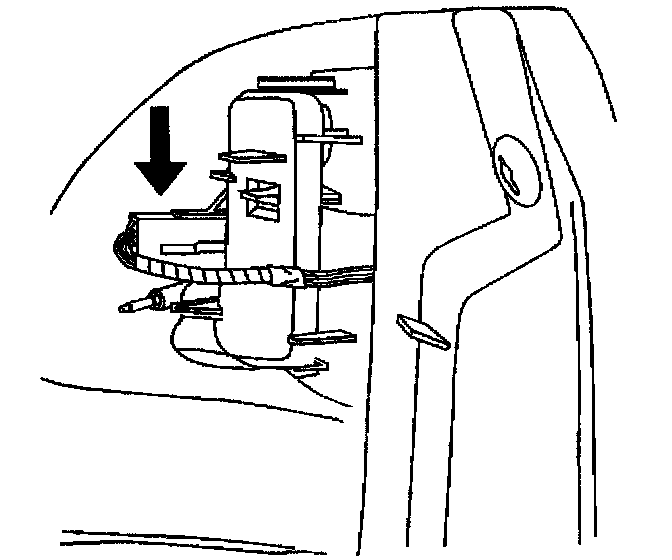

4. Disconnect the electrical connection.

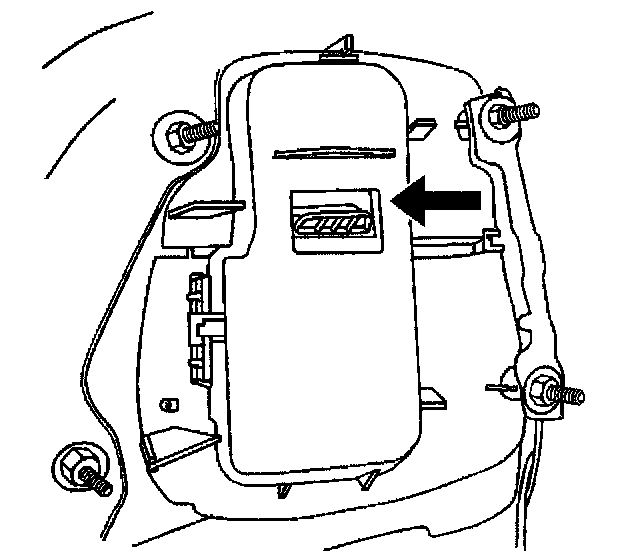

5. Remove the tail/[1][2]turn signal lamp bulb socket assembly by:
Depressing on the tab located in the center of the socket assembly.
6. Remove the tail/[1][2]turn signal lamp bulb socket assembly.
7. Remove the tail lamp bulb from the socket.
INSTALLATION PROCEDURE
1. Install the tail lamp bulb to the socket.
2. Install the tail/[1][2]turn signal lamp bulb socket assembly by snapping into place.
3. Connect the electrical connection.
4. Install the spare tire if replacement of the driver's side tail lamp bulb was performed.
5. Close the storage/cd player door (3) if replacement of the passenger side tail lamp bulb was performed.
6. Close the rear compartment lid.
